Cxjl-450m D26 D90 Plastic Pipe Drop Hammer Impact Testing Machine

Jinan Chenji International Trade Co., Ltd.
  • After-sales Service：Whole Life
  • Warranty：1 Year
  • Max Diameter of Workpiece：16-1200mm
  • Mass Scope of Workpiece：<900kg
  • Type：Pipe Hydrostatic Testing
  • Maxcapacity：10MPa

Base Info

  • Model NO.：CXJL-450M
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Digital
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Oil Cylinder Position：by Others
  • Impact Height：0-2000mm,±2mm
  • Size：L750mm×w550mm×h3500 mm
  • Name：Plastic Pipe Drop Hammer Impact Testing Machine
  • Transport Package：Plywood Case
  • Specification：L750mm× W550mm× H3500 mm
  • Trademark：Chenji or OEM ODM
  • Origin：Jinan or Others
  • Production Capacity：500set Per Month

Description

Basic Info.

Model NO. CXJL-450M Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position by Others Impact Height 0-2000mm,±2mm Size L750mm×w550mm×h3500 mm Name Plastic Pipe Drop Hammer Impact Testing Machine Transport Package Plywood Case Specification L750mm× W550mm× H3500 mm Trademark Chenji or OEM ODM Origin Jinan or Others Production Capacity 500set Per Month

Product Description

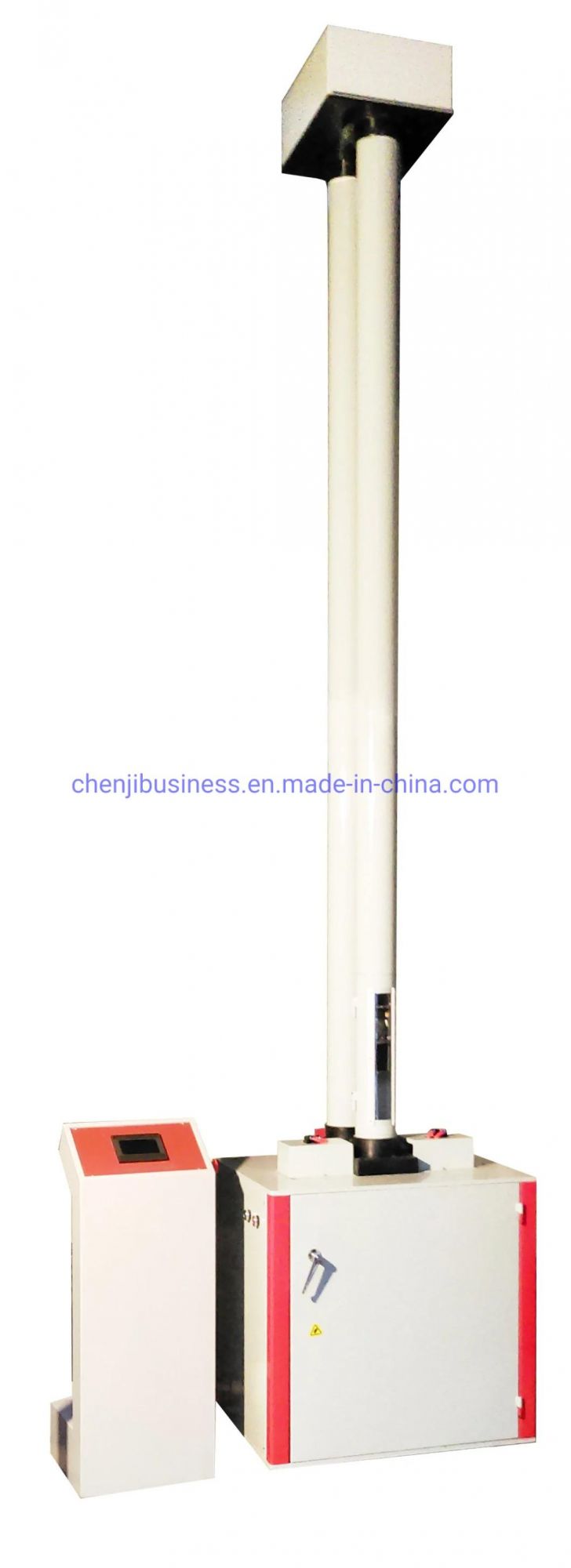

CXJL-450M D26 D90 Plastic Pipe drop hammer impact testing machine
Cxjl-450m D26 D90 Plastic Pipe Drop Hammer Impact Testing Machine
1. Easy to operate
2. Impact height: 0-2000mm
3. High quality
4. Good after service
5. Falling hammer mass: 0.25-15kg

1. Functions:
It is used for the plastic pipe, board and goods to do the impact test , to praise the materials resistant outside force impact performance. The machine controlling parts adopt the numerical control technique. It can number preset and display the impact height, automatic return to zero, rising hammer, dropping hammer, impact and can effectively prevent the twice impacting. It adopts the distyle structure, the structure is compact, energy lost is small, and testing speed is quick.
2. standards-compliant:
ISO3127 BS EN1411
BS EN744
3. Technological indicators:
Impact height: 0-2000mm,±2mm
Overall dimensions: L750mm×W550mm×H3500 mm
Energy losses: 0.25%
Masses of strikers: 0.25-15kg, permissible tolerance shall be ±0.5%
Nose and masses of striker: depending on customers standards
Rising speed: 12m/min
Anti-rebound catching rate: 100%
Test specimen: 10mm-400mm
