Heavy-Duty Portable Compactor (Special)
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service:24 Hours Online Support
- Warranty:1 Year
- Max Diameter of Workpiece:<500mm
- Mass Scope of Workpiece:<900kg
- Type:Heavy-Duty Portable Compactor(Special)
- Maxcapacity:No
Base Info
- Model NO.:STZJ-1
- Accuracy Grade:1
- Load Way:No
- Loading Method:No
- Display:Digital
- Control:No
- Weight:30kg
- Power Source:No
- Oil Cylinder Position:No
- Product Name:Heavy Duty Portable Compactor
- Hammer Weight:4.5kg
- Diameter of The Hammer:50mm
- Drop:450mm
- Dimension of The Compaction Mould:Dia152X170mm
- Finish:Corrowion Resistant
- Transport Package:Wooden Case
- Specification:72x30x29cm
- Trademark:SHTG
- Origin:China
- HS Code:9031809090
- Production Capacity:100PCS,Month
Description
Basic Info.
Model NO. STZJ-1 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control No Weight 30kg Power Source No Oil Cylinder Position No Product Name Heavy Duty Portable Compactor Hammer Weight 4.5kg Diameter of The Hammer 50mm Drop 450mm Dimension of The Compaction Mould Dia152X170mm Finish Corrowion Resistant Transport Package Wooden Case Specification 72x30x29cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description
STZJ-1 Heavy Duty Portable CompactorStandard :BS 1337:2, NF P94-052-1

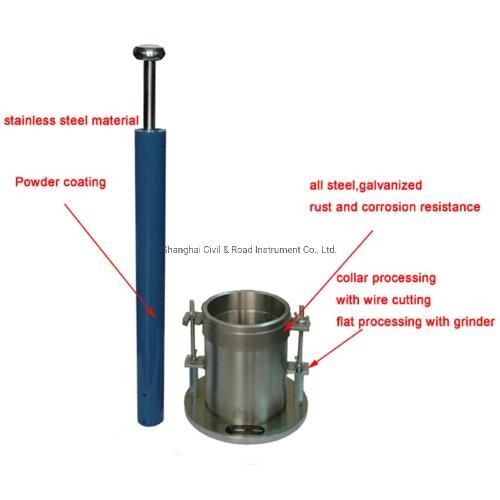

Moulds and hammers are used for determining the relationship between the moisture content and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Hammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.
Product name | Heavy Duty Portable Compactor |
Weight of the hammer(hammer weight) | 4.5kg |
Diameter of the hammer | 50mm |
Drop | 450mm |
Dimension of the compaction mould | Φ152×170mm |
Finish | corrowion resistant |
