Rockwell Hardness Tester
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service:24 Hours Online Support
- Warranty:1 Year
- Max Diameter of Workpiece:<500mm
- Mass Scope of Workpiece:85kg
- Type:Material Testing Machine
- Maxcapacity:98n
Base Info
- Model NO.:HR-150A
- Accuracy Grade:1
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Analogue Display
- Control:Manual Control
- Weight:85kg
- Power Source:AC380V
- Oil Cylinder Position:Under
- Start Test Power:98.07n(10kgf)
- Total Test Power:588.4n (60kgf), 980.7n (100kgf), 1471n (150kgf)
- Squeeze Head:Diamond Squeeze Heada=120o, R=0.2mm
- Steel Ball Squeeze Head Diameter:Is 1.5875mm
- The Max. Height of Sample:170mm
- out Size:510X212X730mm
- Net Weight:85kg
- Transport Package:Wooden Case
- Specification:510x212x730mm
- Trademark:SHTG
- Origin:China
- HS Code:9031809090
- Production Capacity:100PCS,Month
Description
Basic Info.
Model NO. HR-150A Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Analogue Display Control Manual Control Weight 85kg Power Source AC380V Oil Cylinder Position Under Start Test Power 98.07n(10kgf) Total Test Power 588.4n (60kgf), 980.7n (100kgf), 1471n (150kgf) Squeeze Head Diamond Squeeze Heada=120o, R=0.2mm Steel Ball Squeeze Head Diameter Is 1.5875mm The Max. Height of Sample 170mm out Size 510X212X730mm Net Weight 85kg Transport Package Wooden Case Specification 510x212x730mm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description

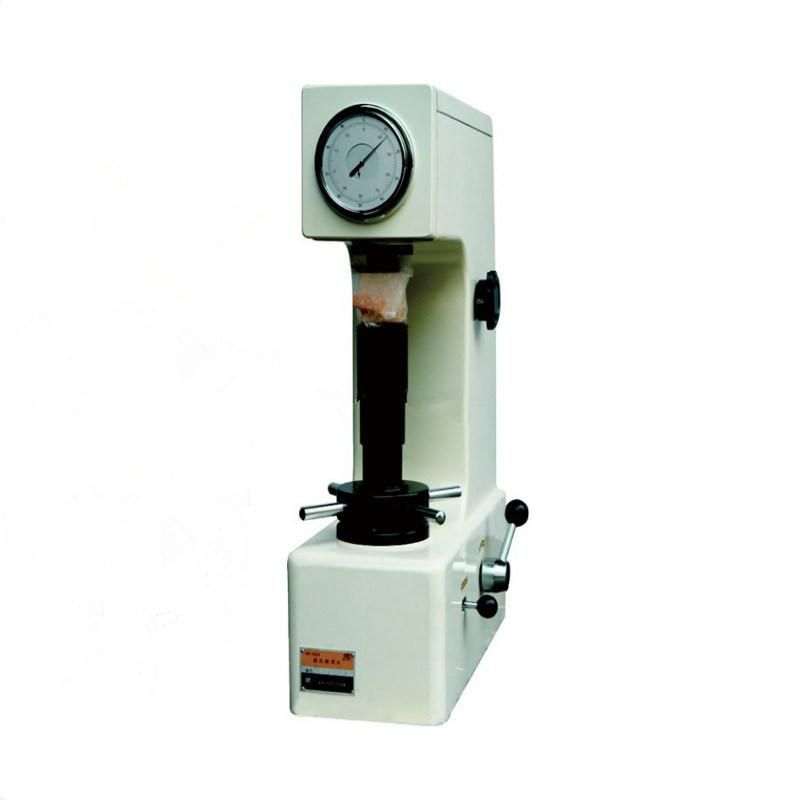

HR-150A Rockwell Hardness TesterApplication: This apparatus be easy operated, is one widely used Rockwell hardness testapparatus, can do Rockwell hardness test for ferrous metal and nonferrous metal.
Start test power | 98.07N(10kgf) |
Total test power | 588.4N (60Kgf), 980.7N (100kgf), 1471N (150kgf) |
Squeeze head | diamond squeeze heada=120o, R=0.2mm |
Steel ball squeeze head diameter | is 1.5875mm |
Display | Analogue display |
The max. Height of sample | 170mm |
Out size | 510X212X730mm |
Net weight | 85kg |
