• Model NO.：STCLD-1
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Digital
• Control：Manual Control
• Weight：180kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stcld-1 Static Penetration Testing Apparatus
• Application：Perform Static Penetration Test
• Penetration Capacity：20-30kn
• Penetration Speed：0.8-1.2m,Min
• Winding Speed：4-5m,Min
• Diameter of Probe Rod：25-28mm
• Adapt Probe：10cm2
• Four-Bladed Vane Probe Size：50X100mm (Separately Equiped)
• Weight of Total Machine：180kg
• Transport Package：Wooden Case
• Specification：1CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STCLD-1 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control Manual Control Weight 180kgs Power Source AC220V Oil Cylinder Position No Product Name Stcld-1 Static Penetration Testing Apparatus Application Perform Static Penetration Test Penetration Capacity 20-30kn Penetration Speed 0.8-1.2m/Min Winding Speed 4-5m/Min Diameter of Probe Rod 25-28mm Adapt Probe 10cm2 Four-Bladed Vane Probe Size 50X100mm (Separately Equiped) Weight of Total Machine 180kg Transport Package Wooden Case Specification 1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

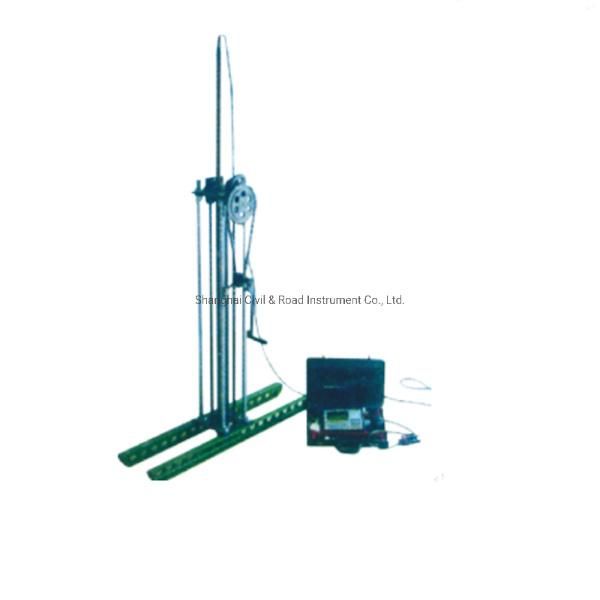

STCLD-1 Static Penetration Testing Apparatus

Application: This machine is used to perform static penetration test, and vane test together with four-bladed vane shear testing apparatus. It's convenient in data exchange.

The machine is light, easy to operate, with simple structure and stable performance. No need to be connected to external power.

It is not only just the lightest CPT machine, but also vane shear test machine (i.e. VST). Its rated penetration force is 30KN (3t) and the test depth is up to 30m (in soft soil area).While doing CPT test, it could work with 10cm2 probe, also 10cm2 pore-pressure probe while doing CPT test.This machine is manual operation, suitable for clay, silt,sand, etc.


Penetration capacity	20-30kN
Penetration speed	0.8-1.2m/min
Winding speed	4-5m/min
Diameter of probe rod	25-28mm
Adapt probe	10cm2
Four-bladed vane probe size	50X100mm (separately equiped)
Weight of total machine	180kg
