• Model NO.：HTPV-09
• Loading Method：Without
• Display：Computer
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Product Name：Solar Panel Hail Impact Testing Machine
• Air Pressure：6-8 Bar
• The Barrel Length：940mm
• Impact Area：2000*1000mm
• X Shaft Move Distance：2100m
• Y Shaft Move Distance：1000mm
• Speed Catch Range：0-50 mm
• Ice Ball Diameter：25mmm, 35mm,45mm
• Standard：IEC61215-2:2016
• Application：Solar Panel
• Transport Package：Export Wooden Case
• Specification：Solar panel impact testing machine
• Trademark：HOTOTECH
• Origin：China
• HS Code：90318090
• Production Capacity：10 Set Per Month

Basic Info.

Model NO. HTPV-09 Loading Method Without Display Computer Control Computer Control Weight 100-500Kg Power Source AC220V Product Name Solar Panel Hail Impact Testing Machine Air Pressure 6-8 Bar The Barrel Length 940mm Impact Area 2000*1000mm X Shaft Move Distance 2100m Y Shaft Move Distance 1000mm Speed Catch Range 0-50 mm Ice Ball Diameter 25mmm, 35mm,45mm Standard IEC61215-2:2016 Application Solar Panel Transport Package Export Wooden Case Specification Solar panel impact testing machine Trademark HOTOTECH Origin China HS Code 90318090 Production Capacity 10 Set Per Month

Product Description

Solar panel Hail Impact Testing Machine

Standard
According to IEC61215,IEC61646,UL1703 standard requirement

Purpose
to verify that the module is capable of withstanding the impact of hailstones

Technical specifications
1,launch device
a,Power source is air compressor
b,Air pressure:6-8bar
c,Ice ball single filled by manual
d,The barrel length approx 940mm
e,The barrel can change
2,Moving locating device
a,X shaft move distance approx 2100mm
b,Y shaft move distance approx 1000mm
c,Locating accurate:≤1mm
d,Impact area:2000×1000mm
e,Guide ways is high quality import guide rail
f,Driving ways adopt import servo motor + synchronous wheel
g,Locating control ways is PC control and automatic locating
3,Test velocity system and theory
a,Via determine ice through the infrared test velocity sensor , meanwhile catch by the breaking time T, according to V=S/t calculation ice ball flight velocity
b,Test speed sensor use high accurate infrared test speed sensor
c,Infrared test speed sensor accurate±5%
d,Speed catch range 0~50 m/s
e,Ice ball speed: diameter 25 mm , ice ball speed 23.0m/s ±5%
                  diameter 35mm  , ice ball speed 27.2m/s ±5%
                  diameter 45mm  , ice ball speed 30.7m/s ±5%
4,ice make ways and mould
a,take the ice mould filled water and placed in the refrigerator freezing chamber, waiting for the water cooling after, take the mould separate take out ice ball , placed in the ice ball Storage chamber cold storage spare
b,Mould use special material that does not expand easily
c,Inner cavity diameter 25mm<1%;35mm<1%;45mm<1%
d,One mould have 6 ice balls , one specification at least have 2 sets of mould
e,Mould ineer cavity process technical use high accurate CNC machine processing
f,ice ball diameter 25mm<5%;35mm<5%;45mm<5%
g,ice ball weight:7.53g<5%;20.7g<5%;43.9g<5%
h,Refrigerator -10ºC

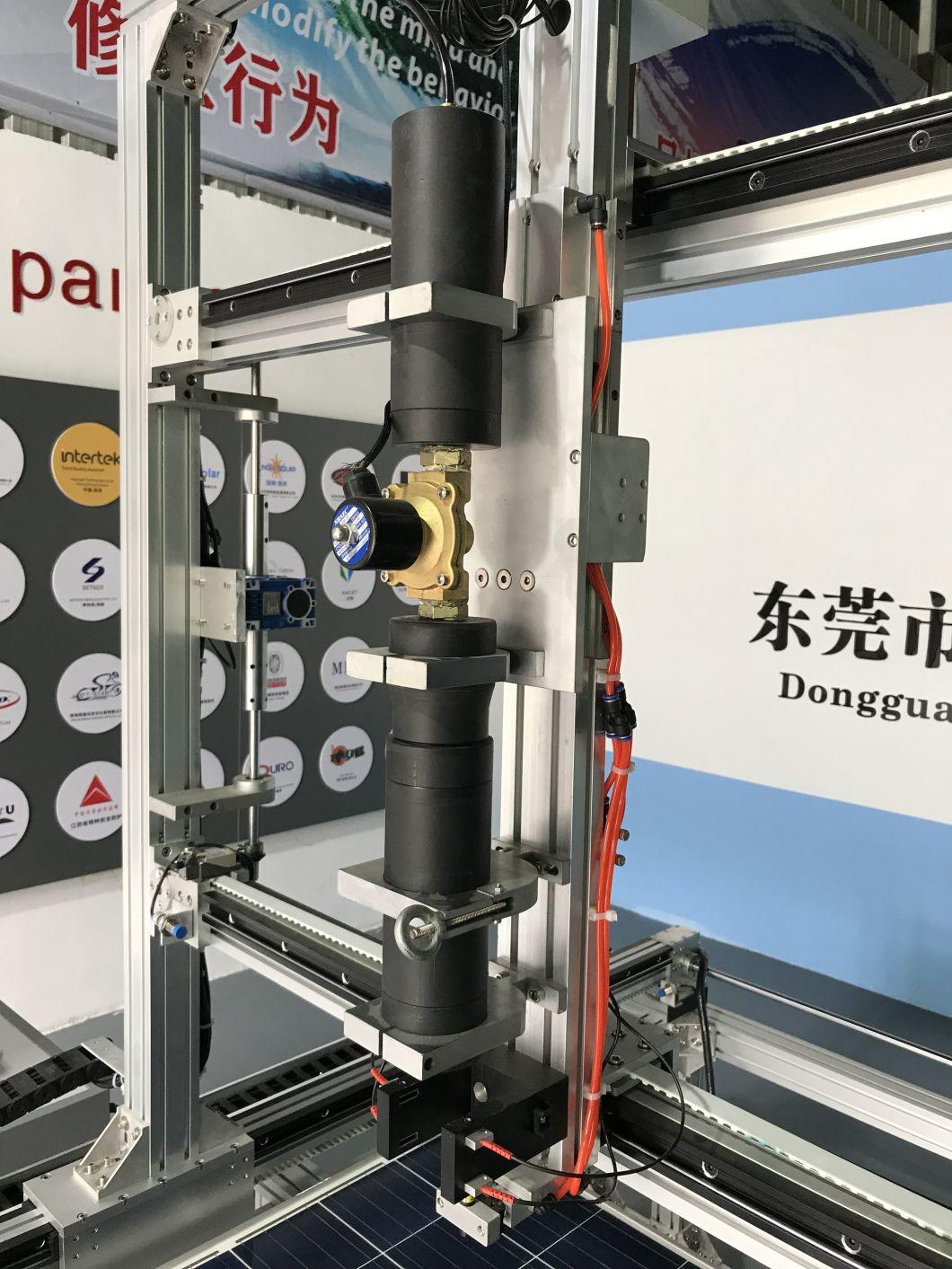

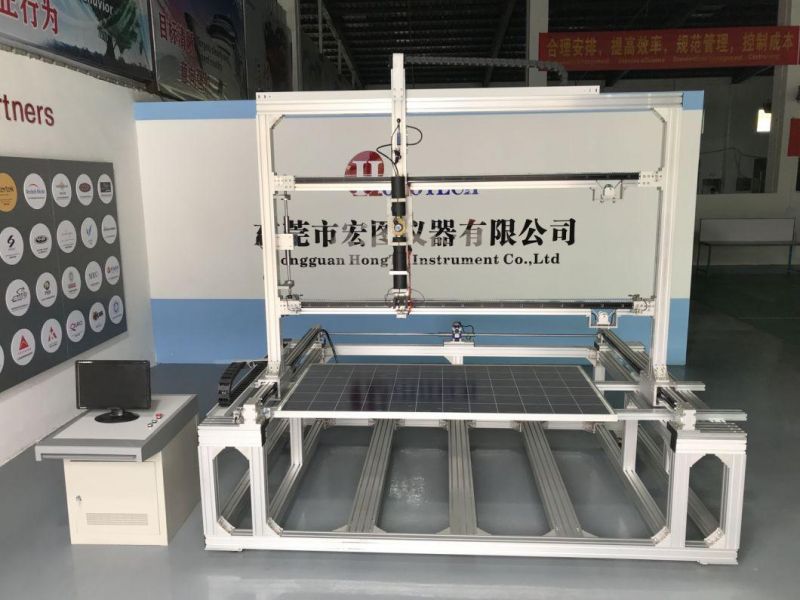

Solar panel hail impact testing machine image show
