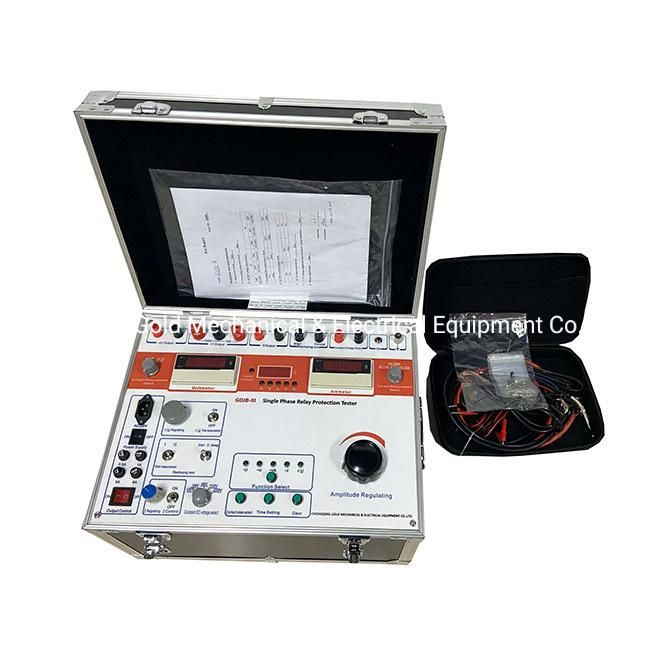

Gdjb-III Single Phase Protection Relay Test Set Realy Tester
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- DC Voltage Output：0~350V Continuous Adjustable, Output Capacity:960V
- AC Voltage Output：0~380V Continuous Adjustable, Output Capacity:400V
- DC Current Output：0~10A Continuous Adjustable, Output Capacity:80va
- AC Current Output：0~10A 0~100A,Capacity:1000va
- Volt Ampere Feature Test：Voltage 0~240V Current 0~5A
- Device Precision：0.5 Grade
Base Info
- Model NO.：GDJB-III
- Joint Action Time Test：0~9999s
- Resolution：1ms.
- Power Supply：AC220V+,-10%, 50Hz,60Hz;
- Environment Temperature：0-50 Centigrade;
- Transport Package：Standard Wooden Case
- Specification：20kg
- Trademark：GOLD
- Origin：Chongqing, China (Mainland)
- HS Code：9031809090
- Production Capacity：50PCS,Month
Description
AC short circuit voltage analog outputDC voltage selection output(it can be used as the operation power of static relay) OutputVoltage24V,48V,110V,220V,all the output current is 0.4A Device precision 0.5 grade Joint action time test 0~9999s Resolution 1ms. Power supply AC220V+/-10%, 50Hz/60Hz; Environment temperature 0-50 centigrade; Size 550mm*410mm*340mm Weight 33kg
Functions:
DC voltage relay test;
DC current relay test;
AC voltage relay test;
AC current relay test;
High current injection;
Time counter in relay test;
