• Model NO.：HD-F750A
• Display：Computer
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Operation：Easy to Operate
• Sensor：Load Cell
• Capacity：200kg
• Unit：Kg, N, Lb
• up Plate：Diameter 200mm, Bottom Fillet R1mm
• Low Plate：420×420mm, Holes Diameter 6mm, Space 20mm
• Max Stroke：200mm
• Motor：AC Motor
• Driver：Taiwan High Precision Ball Screw
• Transport Package：Strong Case
• Specification：ISO
• Trademark：Haida
• Origin：Dongguan
• HS Code：9024
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. HD-F750A Display Computer Control Computer Control Weight 100-500Kg Power Source AC220V Operation Easy to Operate Sensor Load Cell Capacity 200kg Unit Kg, N, Lb up Plate Diameter 200mm, Bottom Fillet R1mm Low Plate 420×420mm, Holes Diameter 6mm, Space 20mm Max Stroke 200mm Motor AC Motor Driver Taiwan High Precision Ball Screw Transport Package Strong Case Specification ISO Trademark Haida Origin Dongguan HS Code 9024 Production Capacity 30 Sets Per Month

Product Description

 ASTM D3574 Foam IFD Tester Compression Hardness Testing/Test Equipment
Description:

Foam Compression IFD Tester is used to test material compressed indentation hardness, such as sponge, foam and other porous elastic. Put specimen under pressure plate, the plate compress the specimen
With a specify speed until the national standard require concavity, the load cell feedback the pressure to computer, it processing and display, then measure the indentation hardness
Of sponge, foam and other materials.

Generl Sepcifications:

Packaging Dimensions: (W*D*H) 910*820*2210mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 160kg
HS Code: 9024800000

DESIGN STANDARD : ISO 2439, ASTM D 3574

Main Parameters:

Control and display	Computer
Sensor	Load cell
Capacity	200KG
Unit	g,Kg, N, LB
Up plate	Diameter 200mm, bottom fillet R1mm
Low plate	380×380mm, holes diameter 6mm, space 20mm
Max stroke	200mm
Test speed	0.1~500mm/min

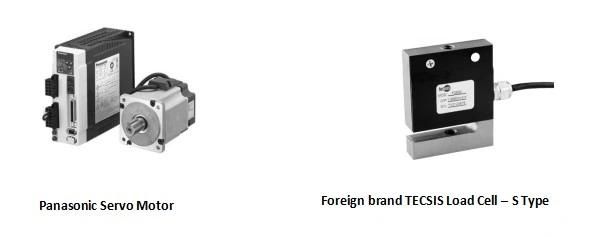

Motor	Servo motor
Driver	Taiwan high precision ball screw
Power	Single phase, 220V, 50Hz
Machine Weight	160KG
Dimension(L*W*H)	880*510*1490mm

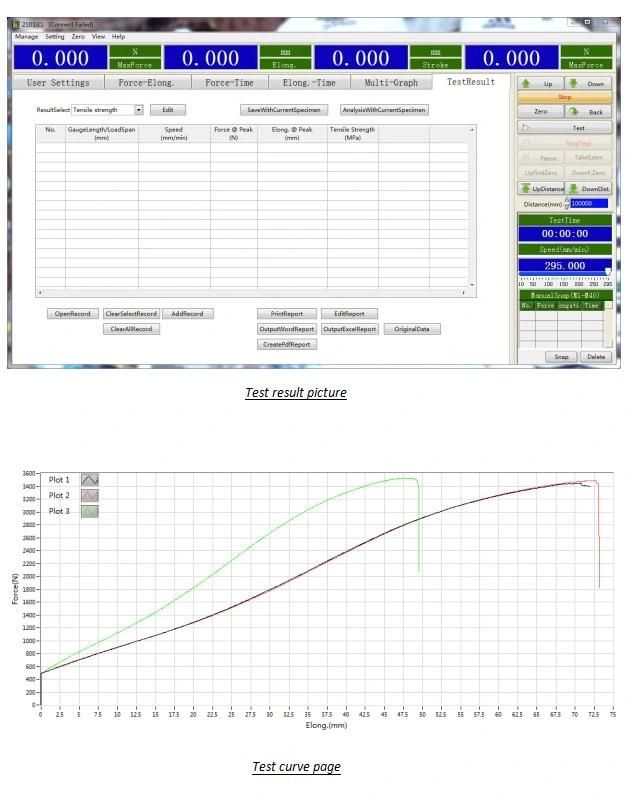

Accessories	One computer with software

(The table parameters for the company Standard Model parameters, we support customer customization parameters)



The introduction of Haida



Our Service

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    24 Hours online service for your consult.
    Help choose right model,and a series  of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging:  Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.


FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
