Xenon Aging Test Chamber with Raining Simulation

Sailham Equipment (Dongguan) Co., Ltd.
  • Certification：Ce, RoHS, FCC, ISO, SGS Certificates
  • Humidity Range：30%~98% Relative Humidity
  • Temperature Range：0 Degree~80 Degree
  • Service：OEM , ODM , Non-Standard Available
  • Application：School, Hospital, Lab, Factory
  • Power Supply：AC220V,AC380V, Customized

Base Info

  • Model NO.：ZH-XL-408
  • Interior Sizes：W500×d500×h600mm
  • Wave Length Range：290-800nm
  • Black Panel Temp.：85 Degree
  • Light Source：Imported Full Spectrum Xenon Arc Lamp
  • Transport Package：Wooden Case
  • Specification：Customization available
  • Trademark：Sailham
  • Origin：Guangdong, China
  • HS Code：8479899990
  • Production Capacity：5000sets,Year

Description

ModelZH-XL-150Interior sizes  W500×D500×H600mmExterior sizesW1050×D1050×1750mm (or so)Temp. range0ºC~80ºCControllerimported programmable 7inch touch screenMaterialinner and outer 304# stainless steelSample holderAluminum alloy frame baseProtection deviceresidual-current circuit breaker (RCCB) to control the warning for loop overload, thermal protection and water shortage protection.Temp. deflection±2ºC  (without lighting)Humid. range30%~98%R.HHumid. deflection±2.5%R.H(Humid.≥75%R.H); ±3%R.H(Humid.≤75%R.H)(without lighting)Light sourceimported full spectrum xenon arc lamp(average useful life 1600hrs)Raining time1~9999min (adjustable)Raining period1~240min, interval(cut)adjustablelamp powerTest period for Temp., irradiation, condensation, spray can be adjustableLamp1.8KWWave length range290-800nmheating power (or so)4.0KWhumidification (or so)2.0KWLight irradiance1200w/m2Distance between arc center and sample holder:350~380mmRevolving speed of sample holder≥1r/minWater spray perioda. spray time: 0~99h59min (Continuing or adjustable)
b. stop time: 0~99h59min, (Continuing or adjustable)  Lighting timeContinuing programming control availableBlack panel temp.85±3ºCCooling methodMechanical wind cooling; Room temp. less than 26ºC is recommend, relative humid: ≤85%R.H; humid. and temp. tested after 2 hours under idle condition.

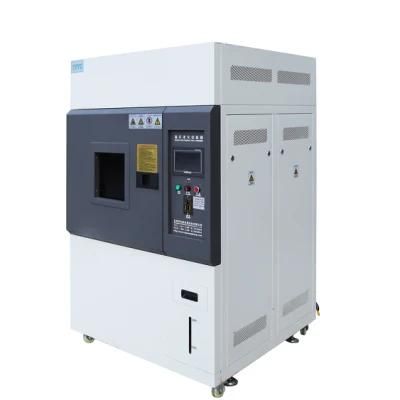

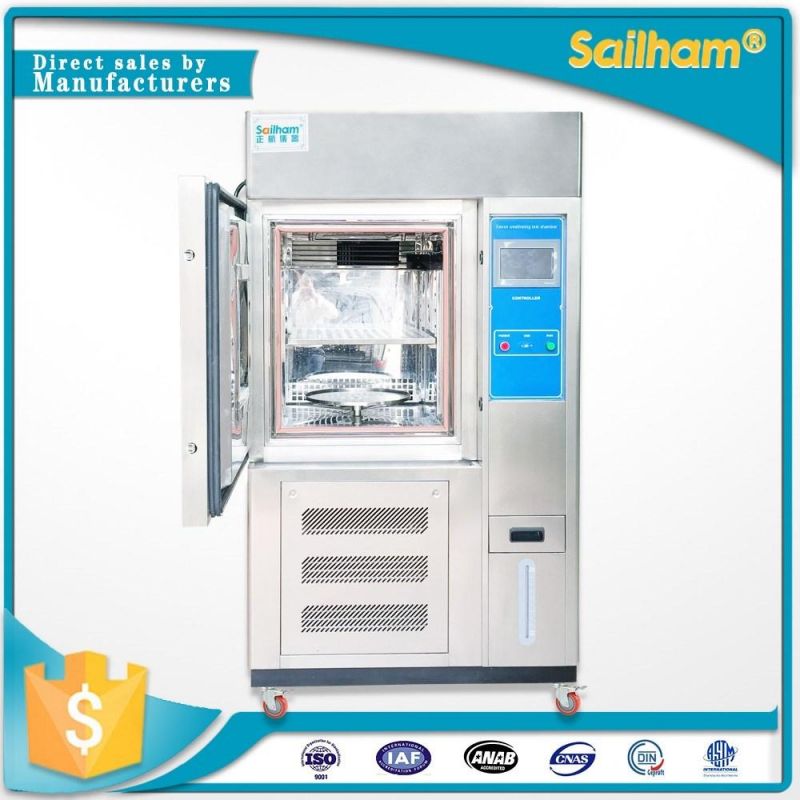

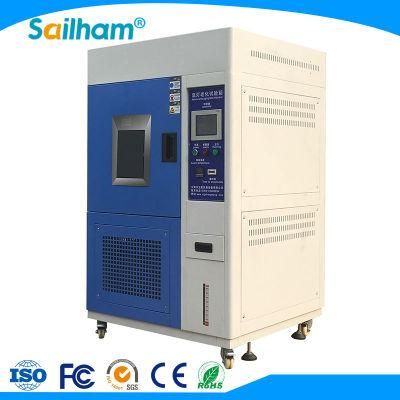

Product image
Xenon Aging Test Chamber with Raining Simulation
Trade show
Xenon Aging Test Chamber with Raining Simulation
Xenon Aging Test Chamber with Raining Simulation

Wooden case for export:
Xenon Aging Test Chamber with Raining Simulation

Certifications:
Xenon Aging Test Chamber with Raining Simulation
