The Accelerated Ageing of The Water-Cooled Xenon Lamp Box

Sailham Equipment (Dongguan) Co., Ltd.
  • Certification：Ce, RoHS, FCC, ISO, SGS Certificates
  • Humidity Range：30%~98% Relative Humidity
  • Temperature Range：0 Degree~80 Degree
  • Service：OEM , ODM , Non-Standard Available
  • Application：School, Hospital, Lab, Factory
  • Power Supply：AC220V,AC380V, Customized

Base Info

  • Model NO.：ZH-XL-408
  • Interior Sizes：W500×d500×h600mm
  • Wave Length Range：290-800nm
  • Black Panel Temp.：85 Degree
  • Light Source：Imported Full Spectrum Xenon Arc Lamp
  • Transport Package：Wooden Case
  • Specification：Customization available
  • Trademark：Sailham
  • Origin：Guangdong, China
  • HS Code：8479899990
  • Production Capacity：5000sets,Year

Description

ModelZH-XL-150Interior sizes  W500×D500×H600mmExterior sizesW1050×D1050×1750mm (or so)Temp. range0ºC~80ºCControllerimported programmable 7inch touch screenMaterialinner and outer 304# stainless steelSample holderAluminum alloy frame baseProtection deviceresidual-current circuit breaker (RCCB) to control the warning for loop overload, thermal protection and water shortage protection.Temp. deflection±2ºC  (without lighting)Humid. range30%~98%R.HHumid. deflection±2.5%R.H(Humid.≥75%R.H); ±3%R.H(Humid.≤75%R.H)(without lighting)Light sourceimported full spectrum xenon arc lamp(average useful life 1600hrs)Raining time1~9999min (adjustable)Raining period1~240min, interval(cut)adjustablelamp powerTest period for Temp., irradiation, condensation, spray can be adjustableLamp1.8KWWave length range290-800nmheating power (or so)4.0KWhumidification (or so)2.0KWLight irradiance1200w/m2Distance between arc center and sample holder:350~380mmRevolving speed of sample holder≥1r/minWater spray perioda. spray time: 0~99h59min (Continuing or adjustable)
b. stop time: 0~99h59min, (Continuing or adjustable)  Lighting timeContinuing programming control availableBlack panel temp.85±3ºCCooling methodMechanical wind cooling; Room temp. less than 26ºC is recommend, relative humid: ≤85%R.H; humid. and temp. tested after 2 hours under idle condition.

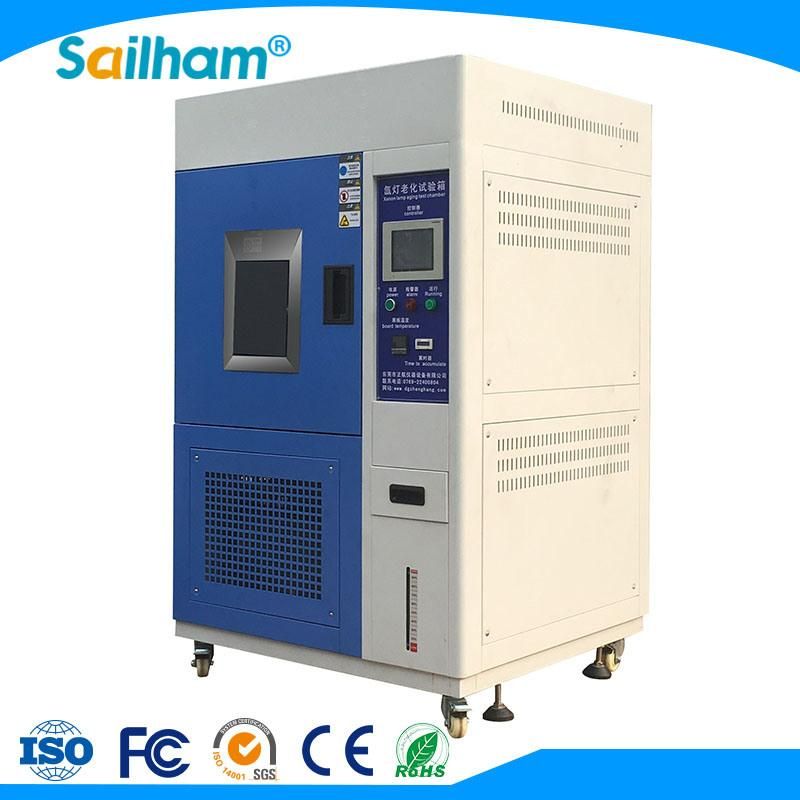

Product image
The Accelerated Ageing of The Water-Cooled Xenon Lamp Box

Trade show
The Accelerated Ageing of The Water-Cooled Xenon Lamp Box
The Accelerated Ageing of The Water-Cooled Xenon Lamp Box

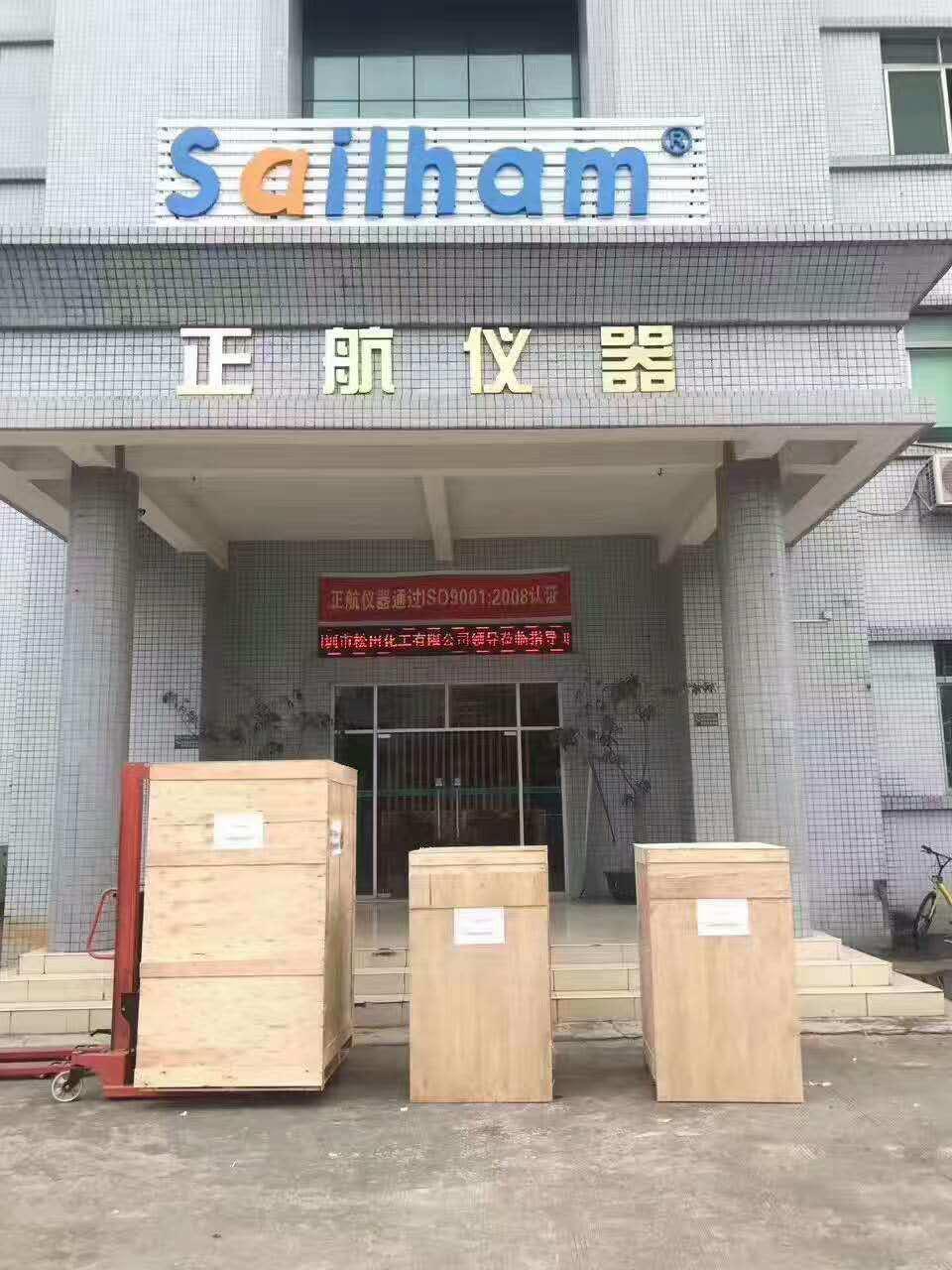

Wooden case for export:
The Accelerated Ageing of The Water-Cooled Xenon Lamp Box

Certifications:
The Accelerated Ageing of The Water-Cooled Xenon Lamp Box
