• Model NO.：PN-PID
• Trademark：PNSHAR
• Origin：Hangzhou, Zhejiang
• HS Code：90248000
• Production Capacity：400sets,Year

Basic Info.

Model NO. PN-PID Trademark PNSHAR Origin Hangzhou, Zhejiang HS Code 90248000 Production Capacity 400sets/Year

Product Description

1. INTRODUCTION

PN-PID ink printing rub durability tester is a new type testing machine designed to measure scuffing or rubbing resistance. Several testers can be performed including dry rub (the amount of transfer ink from one dry surface to another),wet rub (the amount of transfer of ink from wetted surface to another). PN-PID ink rub tester is used for test of presswork wearability, PS sensitization wearability and correlation product wearability. Also it able to do dry rubtest ,and wet rub test, decolour change test, paper blur test and especially attrition.

2. APPLICATIONS:

Paper. corrugated board. and corrugated carton.

3. STANDARDS:

GB/T 7706,ASTM D5264, TAPPI-UM486, ISO9000

4. SPECIFICATIONS:

1). Power supply: AC220V±10% 2A 50Hz;

2. Rub speed: 21/43/85/106 r/min;

3). Rub loading: 20N—GB,0.9kg(2Lb)—ASTM;

4). Rub distance: 60mm;

5). Ru time: 1~999999;

6). Display screen: LCD screen and system operation interface;

7). Size: length × width × height=335 ×295 × 295 mm;

8). Weight : 20 kg.

5. FEATURES:

1). Four speeds can select:21r/min,43 r/min,85 r/min, 106 r/min;

 2). The order of take count of rub time could be selected.

3). The rub time is between 1~999999.

4). It will stop when test over, and the rub body will return to the initially position.

5). The data can be saved and memory.

6). Big blue LCD display with Chinese and English operating system.

7). Mechanical and electrical integration of modern design, compact structure, nice appearance, easy maintenance.

Company Introduction:
PNSHAR, as one SGS-Audited company & ISO-Certified company, has been engaged in the R&D and production of lab equipment for paper & packaging industries since 1985.Our products has achieved CE certificate.
As the leading manufacturer from China, we are enjoying the Chinese market, competing the European suppliers, American suppliers and Taiwan Suppliers.
Based on good quality and reliable performance, our lab equipments also have been exported to more than 50 countries, such as follows:
1). Europe: Italy, Germany, Hungry, Macedonia, Latvia, Czech, Switzerland, Russia, Poland, Turkey etc;
2). Asia & Oceania: Japan, Indonesia, Singapore, Australia, Hongkong, South Korea, Iran, Thailand, Viet Nam, India, Bangladesh, Jordan, Saudi Arab, Bahrain, Pakistan, Malaysia, Philippines, Myanmar, Taiwan, Oman, Uzbekistan, etc;
3). America:USA, Mexico, Argentina, Brazil, Peru, Costa Rica, Guyana, Uruguay, etc;
4). Africa: Kenya, Egypt, South Africa, Cote d'Ivoire, Cameroon, etc.

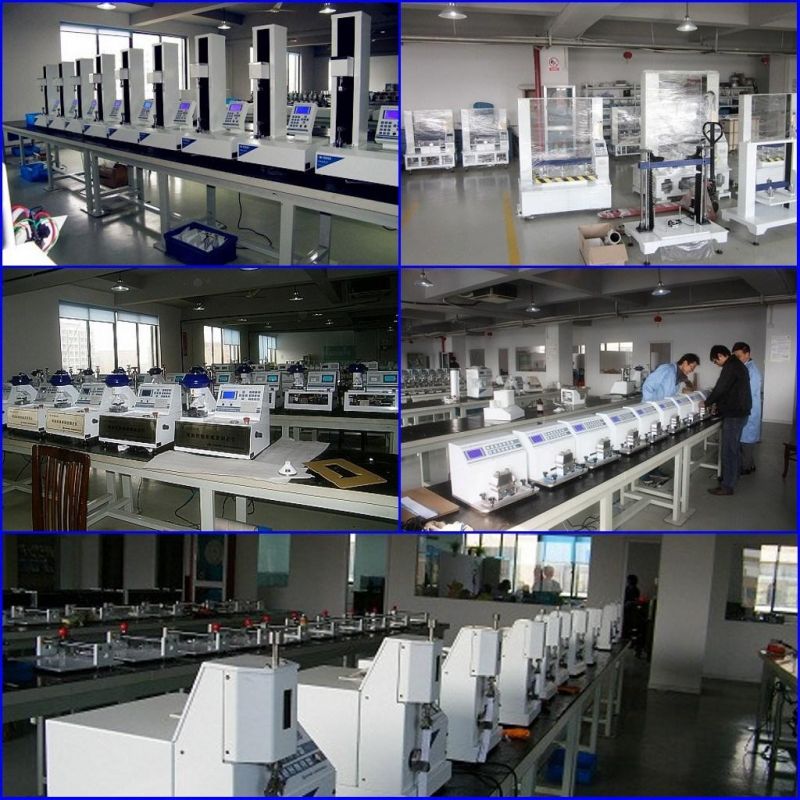

Our Workshop:

Our certificate:

Our customers:
