• Model NO.：PRZS-5
• Maxcapacity：<1000KN
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Length：1150 Mm
• Width：650 Mm
• Height：1350 Mm
• Gross Weight：160 Kg
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：903110009
• Production Capacity：1000 Sets,Month
• Package size per unit product：95.00cm * 95.00cm * 163.00cm
• Gross weight per unit product：258.000kg

Basic Info.

Model NO. PRZS-5 Maxcapacity <1000KN Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC380V Length 1150 Mm Width 650 Mm Height 1350 Mm Gross Weight 160 Kg Transport Package Packed in Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 903110009 Production Capacity 1000 Sets/Month

Packaging & Delivery

Package size per unit product 95.00cm * 95.00cm * 163.00cm Gross weight per unit product 258.000kg

Product Description

Balancing machine for Cooling fan (PRZS-5)





Production Description

Specially designed brackets can effectively transmit mechanical force with low vibration damping
Durable and reliable sensor possesses high sensitivity and good linearity
Specially designed clamp offers higher precision and easier operation
Realistic imitation of the working station minimizes inaccuracy for global balancing
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application. Soft-bearing

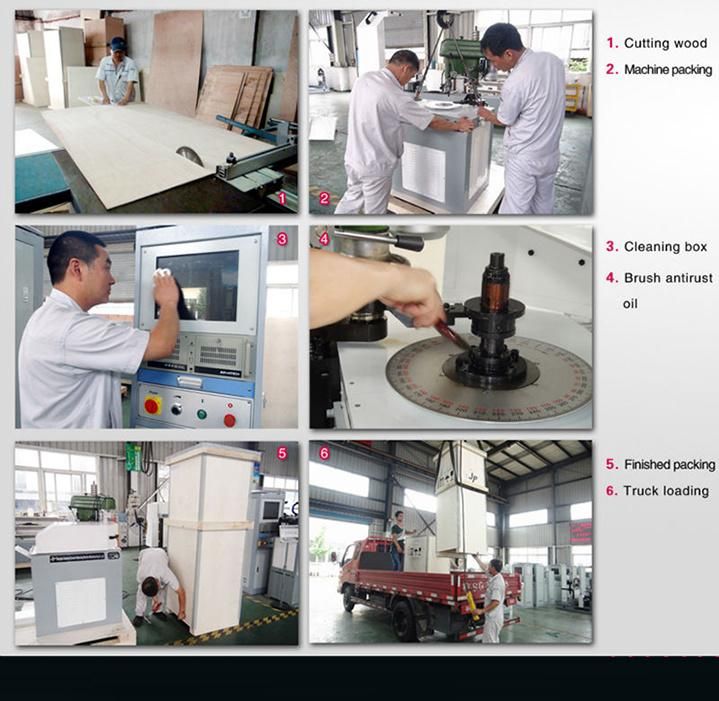

Package and transport

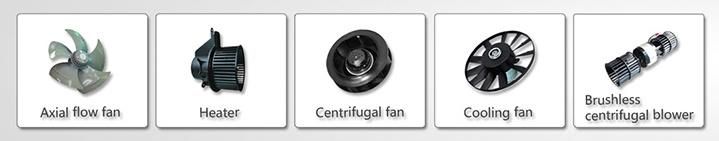

Range of Application

Global balancing is a newly-developed conceptation in recent years. Balancing Machine for Furnace Blower (PRZS-5) is also widely adopted in the balancing process of the machine tool spindles, motor assembly, coil fan, cooling fans, air-conditioner fans, fan heaters, range hood fan, Hard-Disk Drive of computers...Take full consideration of overall component's accuracy. To eliminate the unbalance amount caused by the bearings. Other parts and assembly errors so that improve products'quality

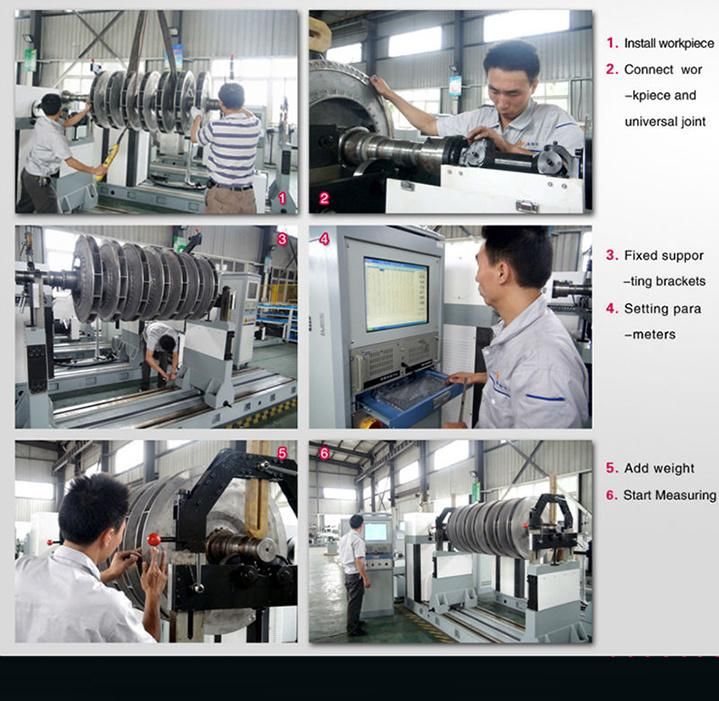

Workshop debugging



Design

Balancing Machine for Furnace Blower (PRZS-5) are well-designed mechanical module helps to do quick and precise balancing. Give more choices, Equip your optimal balancing device with less expense.

Special Features

It adopted soft bearing supporting frames system, with advantage of high precision, efficiency, customized special clamps can use quick chuck fastening, perfectly applied to the global balancing,

Certificates



Production Parameters

Technical data at a glance	PRZS-1.1/5
Mass Scope of Workpiece(kg)	1.1/5
Height of Workpiece (mm)	130/300
Min  Achievable  Residue Unbalance Amount   (emar)	5g. mm/kg
