• Model NO.：PHLD-35
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Length：1100 Mm
• Width：650 Mm
• Height：1350 Mm
• Gross Weight：180 Kg
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO9001: 2008 CE SGS
• Trademark：Jp
• Origin：Shanghai China
• HS Code：903110009
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHLD-35 Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC380V Length 1100 Mm Width 650 Mm Height 1350 Mm Gross Weight 180 Kg Transport Package Packed in Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark Jp Origin Shanghai China HS Code 903110009 Production Capacity 1000 Sets/Month

Product Description

Special pneumatic clamps balancing machine (PHLD-35)

Production Description
Specially designed, solid brackets can effectively transmit mechanical force
Durable and reliable sensor possesses high sensitivity and good linearity
Permanent calibration brings high accuracy
Special clamp offers higher accuracy and easier operation
Advanced electrical measuring system and friendly man-machine interface
As the customer's request, the de-weighting system can be equiped

Delivery inspection



Range of Application

Vertical Balancing Machine for Fan Blade isalso mainly used in balancing fan impeller, pump impeller, range hood fan, flywheel, grinding wheel, chuck, clutch, brake disc, saw blade, brake, tool, torque converter, belt pulley etc.
It can be equipped weight-removing equipment for customer if demanded.

Factory Outlook



Special Features

Display mode of measuring unit is all digital micro-compujter display, This model has the function of clamp compensation. Its resolution for weight is 1mg, and resolution for angle: 1°
It has the character of elaborate design, high measuring precision, high reliability, easy operation.

The measuring unit employs JP-580B Electrical Measuring unit is a system of top function and precisionIt can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equiped with 15-inch LCD screen and 1G Memory, Electric board 4G, Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Workshop debugging



Production Parameters

Technical data at a glance	PHLD-35
Weight of Workpiece (kg)	35
Max. Outer Diameter of Workpiece (mm)	800
Height of Workpiece (mm)	160
Rotating Speed of Main Shaft (r/min )	1630
Motor Power (KW)	1.5
Min Achievable Residual Unbalance Amount. (e mar )	2g. mm/kg

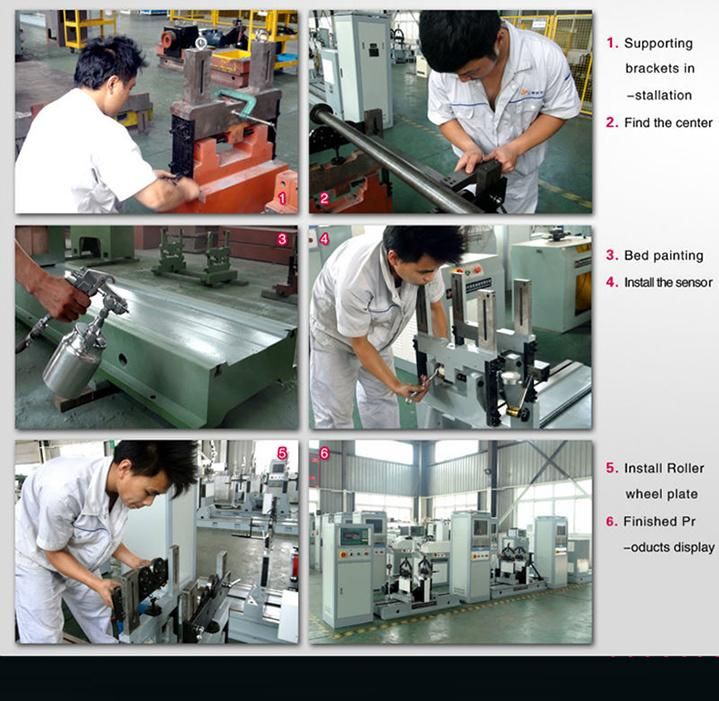

Production Process-Mechanical parts
