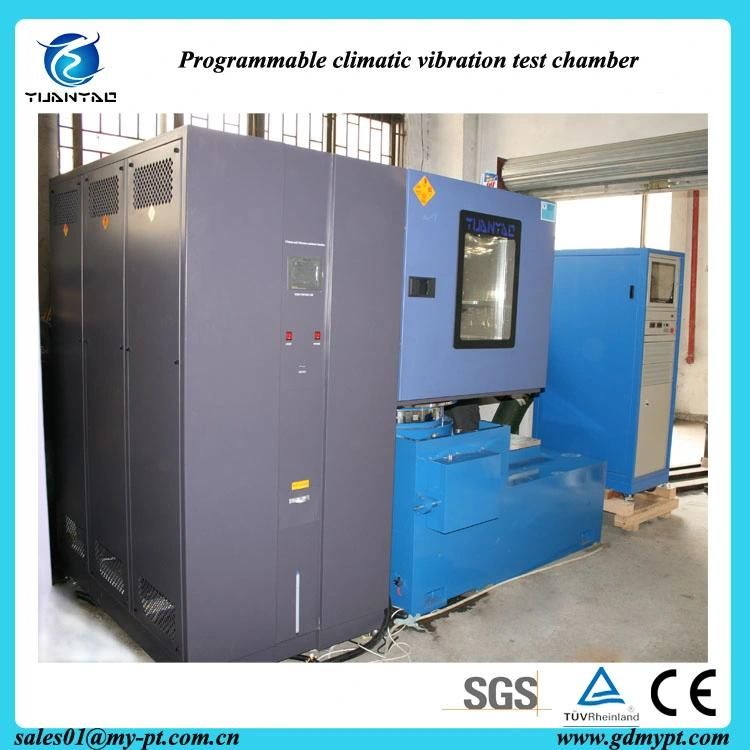

Temperature Humidity and Vibration Combined Test Chamber

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Type：Temperature Humidity Vibration Test Chamber
  • Maxcapacity：>1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：YTHV336
  • Control：Computer Control
  • Weight：1000-2000Kg
  • Power Source：AC380V
  • Oil Cylinder Position：N,a
  • Internal Size(Mm)：600*800*700
  • Humi.Range：20%-98%Rh
  • Frequency Range：3-2000Hz
  • Max.Displacement：25mm
  • Rated Force：200kgf
  • Controller：LCD Touch Panel Controller
  • Warranty：12 Month
  • Temp. Range：-40 Oc~150 Oc
  • Material：Stainless Steel
  • Customization：Inner Chamber Size, Temperature&Humidity Range
  • Transport Package：Well Packed in Strong Wooden Cases.
  • Specification：SGS, TUV certified.
  • Trademark：Yuanyao
  • Origin：Guangdong, China
  • HS Code：9032100000
  • Production Capacity：10 Sets , Month

Description

ModelYTHV-336YTHV-512YTHV-720Internal Dim.W×H×D(mm)600×800×700800×800×800900×800×1000External Dim.W×H×D(mm)1740×1900×11201940×1900×12202040×1900×1420Temp. Range0°C -20°C -40°C ~150°CHumi. Range20%RH~98%RHFrequency Range3~2000HzMax.Displacement25mmRated Force200kgfController1P PROGRAMMRLE COXTROL+SINE WAVE CONTROL SYSTEMPower Source(K.W.)AC 3Ψ 380V 60 / 50HzTemperature Humidity and Vibration Combined Test Chamber
Temperature Humidity and Vibration Combined Test Chamber

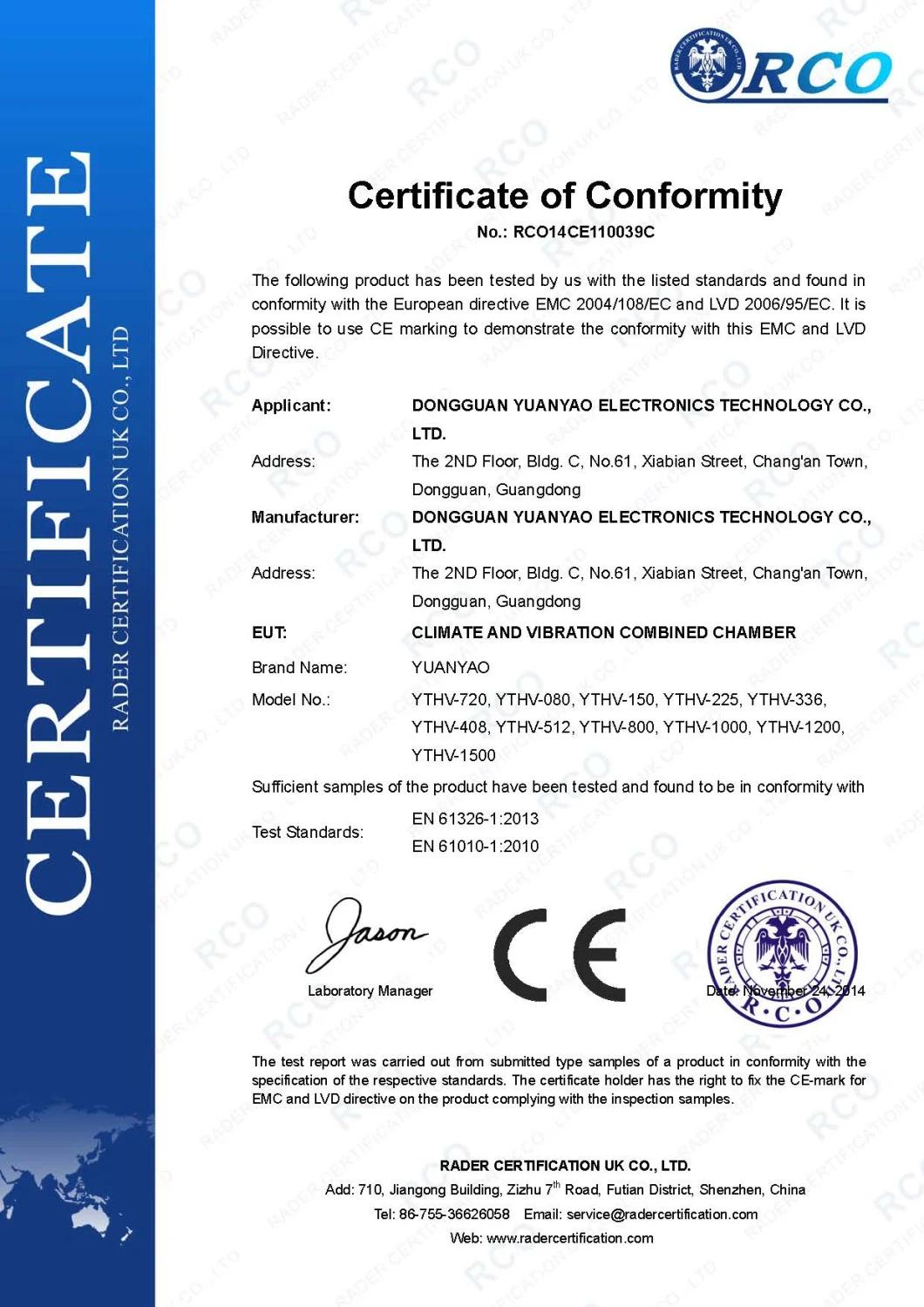

CE certificate
Temperature Humidity and Vibration Combined Test Chamber
Temperature Humidity and Vibration Combined Test Chamber
Our advantages:
1. Ten years factory experience, competitive price, quality warranty.
2. Provide after sales service on site to serve more customers at home and abroad.Till now, our technicists have been to HongKong, Australia, USA, UK, Singapore, Indonesia, Turkey, UAE, Pakistan and Russia for the large chamber installation and training.
Temperature Humidity and Vibration Combined Test Chamber
3. Local agent or representatives in foreign countries:
Thailand, Pakistan, Vietnam, Belarus, Russia.

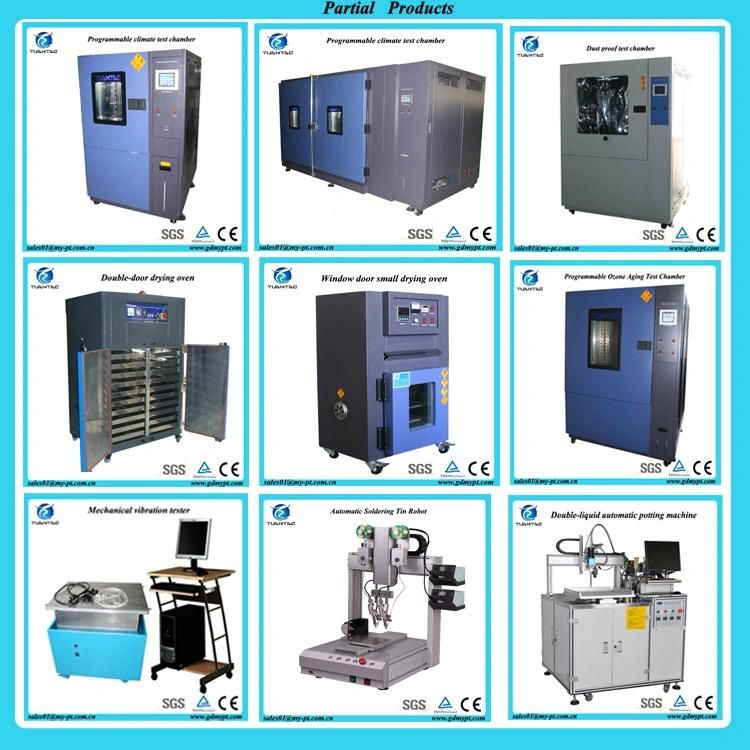

You may also interest our other products, any help, please direct contact MS Angela Cheng, I will be here to reply you within 24hours during our working time.
Temperature Humidity and Vibration Combined Test Chamber
Many thanks for your patiently reading!
