Made in China Electromagnetic System Vibration Shaker
Guangdong Yuanyao Test Equipment Co., Ltd.- Type：Vibration Testing Machine
- Display：Digital
- Control：Computer Control
- Weight：500-1000Kg
- Power Source：AC220V
- Oil Cylinder Position：N,a
Base Info
- Model NO.：YEV-13
- Frequency Range：2-4000Hz
- Max.Vibration Force：300kg.F
- Max.Displacement：25mmp-P
- Max.Acceleration：80g
- Max.Speed：160cm,S
- Size(Mm)：675*560*660
- Cooling Way：Air Cooling
- Warranty：12 Months
- Max.Load：110kg
- Excitor Weight：240kg
- Transport Package：Strong Wooden Case
- Specification：CE, TUV, SGS Certificate
- Trademark：Yuan Yao
- Origin：Guangdong, China(Mainland)
- Production Capacity：100 Sets,Month
Description
ModelYEV-11 YEV-12 YEV-13 Exciter Model GV100/25 GV200/25 GV300/25 Frequency range (Hz) 2-4000 2-4000 2-4000 Max Eciting Force (kg.f) 100 200 300 Max Displacement (MMP-p) 25 25 25 Max Acceleration (G) 40 80 80 Max Speed (cm/s) 150 150 160 Payload (kg) 65 65 110 Moving Coil Mass (kg) 2.5 2.5 4 Circumference of the movable ring(mm) 140 140 150 Exciters Weight (kg) 220 250 240 Dimensions (LWH) mm 675×560×660 675×560×660 675×560×660 Power amplifier Model SA1K SA2K SA3K Power developed weight (kg) 210 210 250 Cooling method 210 210 250 Power Amplifiers Size (L×W×H)(mm) 720×545×1625 720×545×1625 720×545×1625 Power Source[k.w] AC 1Ψ 220V/50Hz; 3Ψ 380V 50Hz
Except Vibration test chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

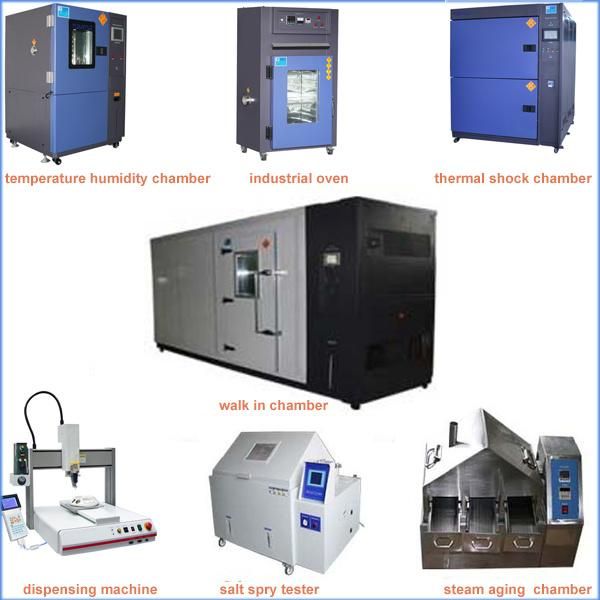

Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Tensile Tester, Drop Tester and so on.
If you are interested in the items, please contact me soon.
