• Model NO.：YSRT-1728
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Internal Size(Mm)：1200*1200*1200
• Test Specimen Frame：1rpm
• Flow Rate of Water：0.07L,Min
• Material：SUS#304
• Water Temp.：Normal
• Warranty：12 Months
• Delivery：Prompt
• Other Components：Chamber Lamp.Wiper, Casters with Adjusters
• Application：Auto Testing Machine
• Service：Customization
• Transport Package：Strong Plywood Case
• Specification：1 set
• Trademark：Yuanyao
• Origin：Guangdong, China
• HS Code：8424899990
• Production Capacity：100 Sets,Month

ModelYSRT-1728-AYSRT-1728-E(IEC-529)(CNS14165)Internal Dim.W×H×D(mm)1200×1200×12001200×1200×1200External Dim.W×H×D(mm)1750×1850×13001750×1850×1300Water Temp.NormalNormalSpray TypeTotal Water Flow(L/min)R11.8IP×1With in 1~1.5mm/min(In drip box)R23.2IP×2With in 3~3.5mm/min(In drip box)S124.5IP×3angle±600,R:400mm,1.1L/minS239.2IP×4angle±1800,R:400mm,1.8L/minPressure of spray nozzle(kgf/cm*2)R10.11.Flow rate of the water=0.07L/min
2.1P×3,Radius:400mm,16Number or open
holes=16,total water flow:1:1L/min.
3.1P×4,Radius:400mm,25Number or open
holes=25,total water flow:1:8L/min.
*Radius:200mm,R400mm.
(For 1P×3,1P×4 only)R20.3S11S23(RPM)Test Specimen Frame17RMP1RPMSpray Nozzle Rotation Speed23RPMPromote the pipe on both sides of the vertical line of 30 ° each time back and forth about four seconds to promote
Swing 60 ° from vertical for 4 seconds at one time
Promote the pipe on both sides of the vertical line of 180 ° for about 12 seconds to promote one round
Swing 180 ° from vertical for 12 seconds at one timeMaterialInteriorSUS#304 Stainless steel ExteriorCold rolled plate + Powder coatingOther ComponentsChamber lamp.Wiper
casters with AdjustersChamber lamp.Wiper,casters with AdjustersPower Source(K.W.)AC 1Ψ 220V 60/50Hz 4KW

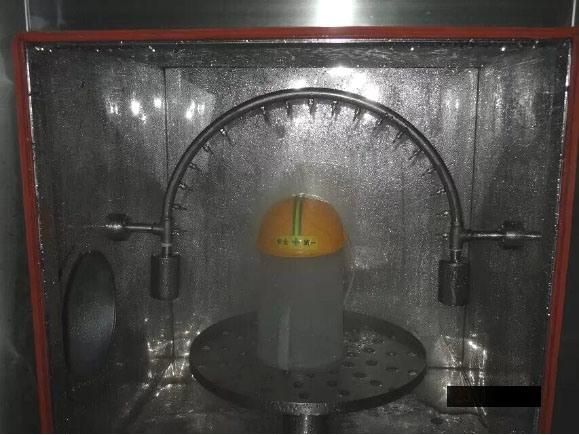

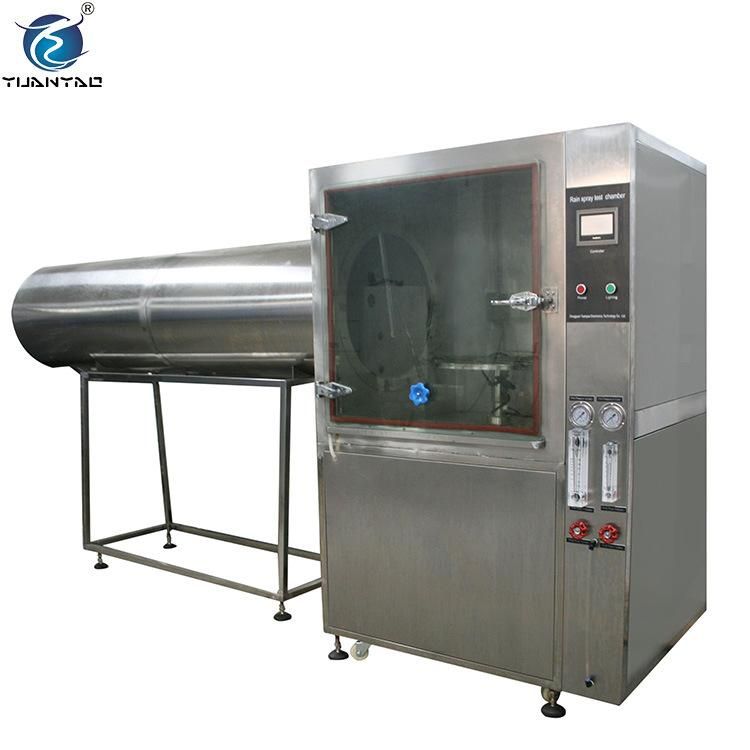

Product detail








Company profile








 In addition to water rain spray test chamber, we are also manufacturing:

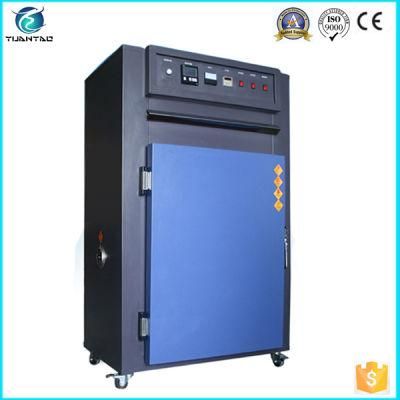

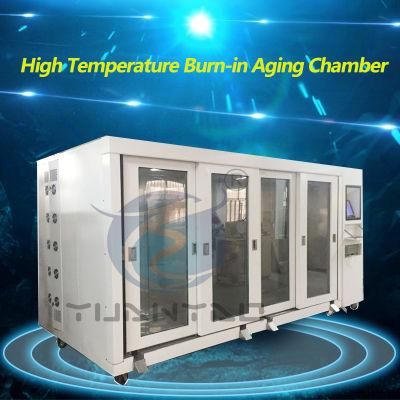

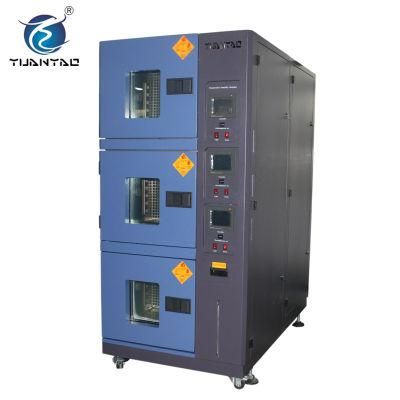

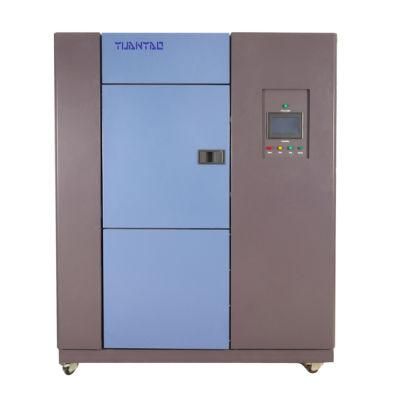

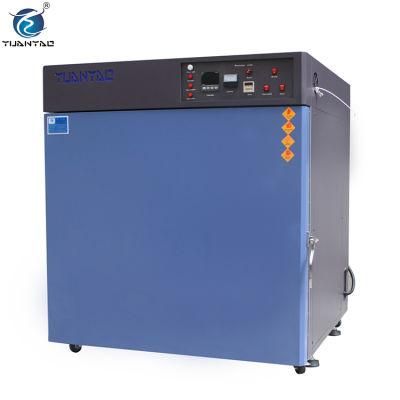

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Other styles / size with different configurations are available upon request, welcome to enquire and purchase!



If you want to know more about water resisitance test chamber,please feel free to contact us.
