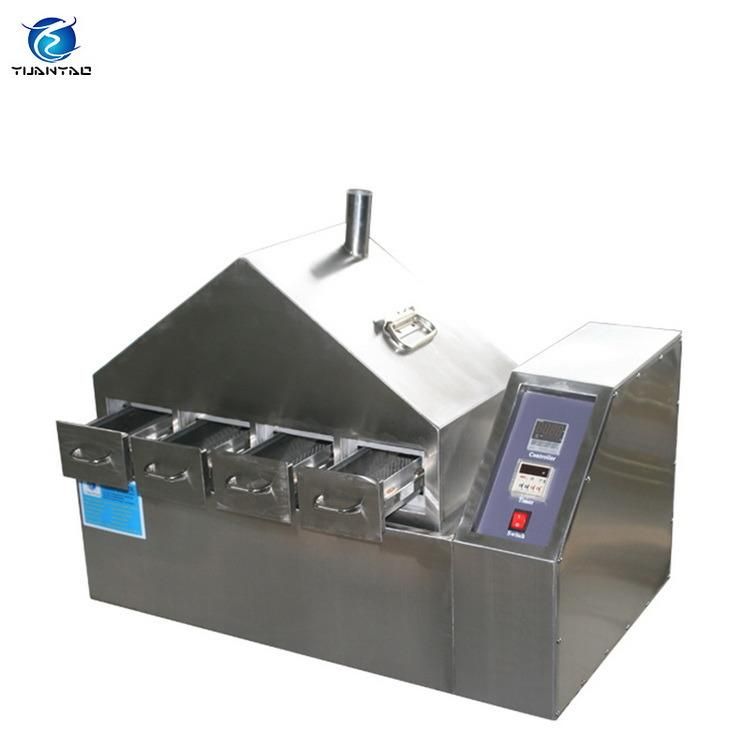

• Model NO.：YSA-4
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Test Basket Size：100*54*260mm with 4 Drawers
• External Size：760*540*340mm
• Temp. Range：R.T. +10 Degrees to 98 Degrees
• Temp. Accuracy：+,-0.3degree
• Temp.Resolution：+,-0.1degree
• Heat up Time：45 Mins
• Insulation：PU&Fiberglass Wool
• Color：Ivory
• Interior Chamber Material：SUS#304 Stainless Steel Plate
• Exterior Chamber Material：Stainless Steel Plate + Powder Coated
• Transport Package：Strong Wood Carton
• Specification：SGS, TUV Certification
• Trademark：Yuanyao
• Origin：China
• HS Code：9032100000
• Production Capacity：100 Sets,Month

SpecificationMODELYSA-3YSA-4Test basket.W×H×D(mm)100×54×260,3Sets100×54×260,4SetsExternal Dim.W×H×D(mm)610×540×340760×540×340FerformanceTemp.Range R.T+10ºC-- +98ºCTemp.Constancy±0.3ºCTemp.Resolution±0.1ºCHeat-up( min )45minsMaterialExteriorSUS#304 stainless steel piateInteriorSUS#304 stainless steel piateInsulationPU & Fiberglass woolSYSTEMSHeatingChrome Steel Strip Wire HeaterControllerDigital electronic indicators controller+S.S.R.With P.I.D & timer max 9,990minsSafety DevicesOverheating prevention pretector,Water shortage protector, steam outlet hole, no fuse breaker.Power Source[K.W.]AC 1Ψ 220V  60/50Hz1.12.5More details about the specification, please contact Angela Cheng, thanks for your attention.

Except Four Drawers High Temperature High Humidity Ageing Instruments, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

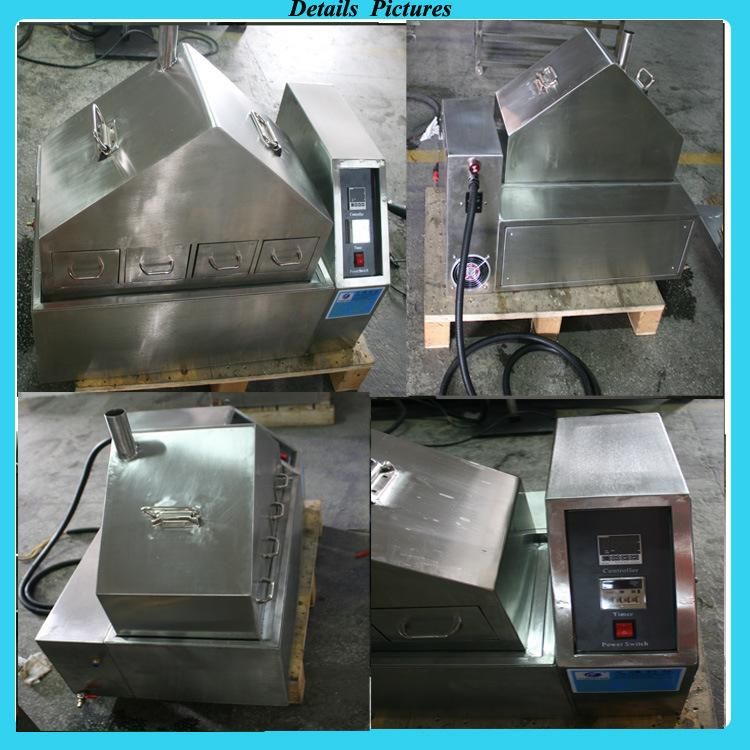

Product detail
