• Model NO.：YSDT-1000-C(IEC-529)
• Display：Digital
• Control：Controller
• Power Source：AC220V; AC380V
• Oil Cylinder Position：Under
• Internal Size(Mm)：1000*1000*1000
• Testing Type：IEC60529
• Concentration of Dust：Above 5000 Mg,M3
• Testing Temp.：20 Degree Celsius +,- 15 Degree Celsius
• Humidity Range：45%-85%Rh
• Swirl Time：5s
• Material：Stainless Steel
• Warranty：12 Months
• Flow Rate of Dust：5m,S
• Total Time：2h
• Transport Package：Strong Wooden Case
• Specification：CE, ISO, TUV, SGS Certificate
• Trademark：Yuanyao
• Origin：Guangdong, China
• HS Code：8479899990
• Production Capacity：100 Sets,Month

ModelYSDT-1000-FYSDT-1000-C(IEC-529)Internal Dim.W×H×D(mm)1000×1000×10001000×1000×1000External Dim.W×H×D(mm)1350×1950×13501350×1950×1350Testing TypeF1F2F3IEC60529C1C2Concentration of dust(mg/m3)Above 60000Above 3000Above 100Above 5000Above 100Testing Temp.20°C±15°CHuimidi.Range45%RH~85%RHFlow rate of dust(m/s)No Limited5m/s10m/sTesting TimeSwirl time5S or otherNORest time15min or otherTotal time5H8H8H2H6HMaterialExteriorSUS#304+Powder CoatedInteriorSUS#304Other ComponentsChamber lamp,Wiper,Casters with adjustersPower Source(K.W.)AC 1Ψ 220V 60/50Hz   4KW

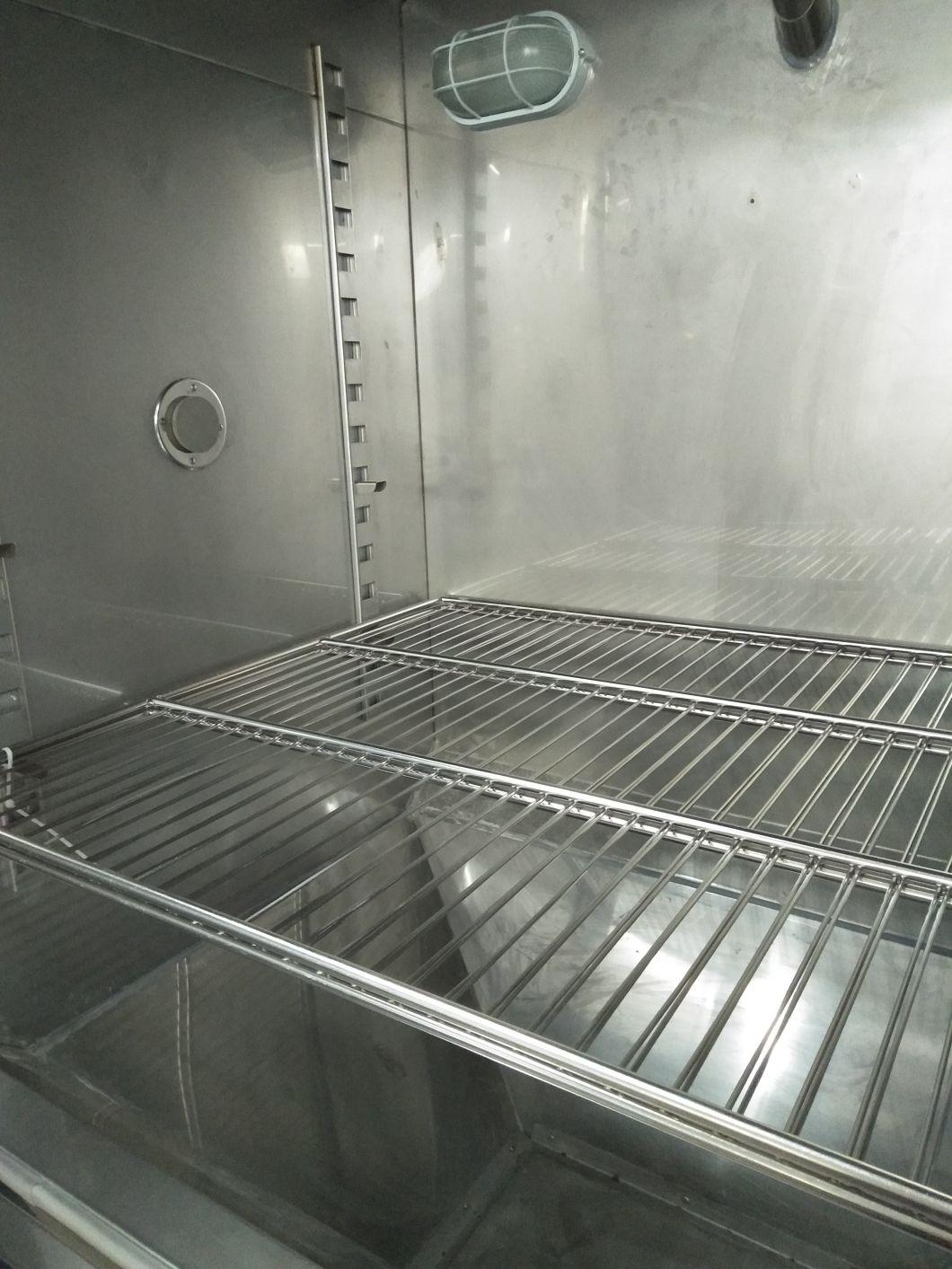

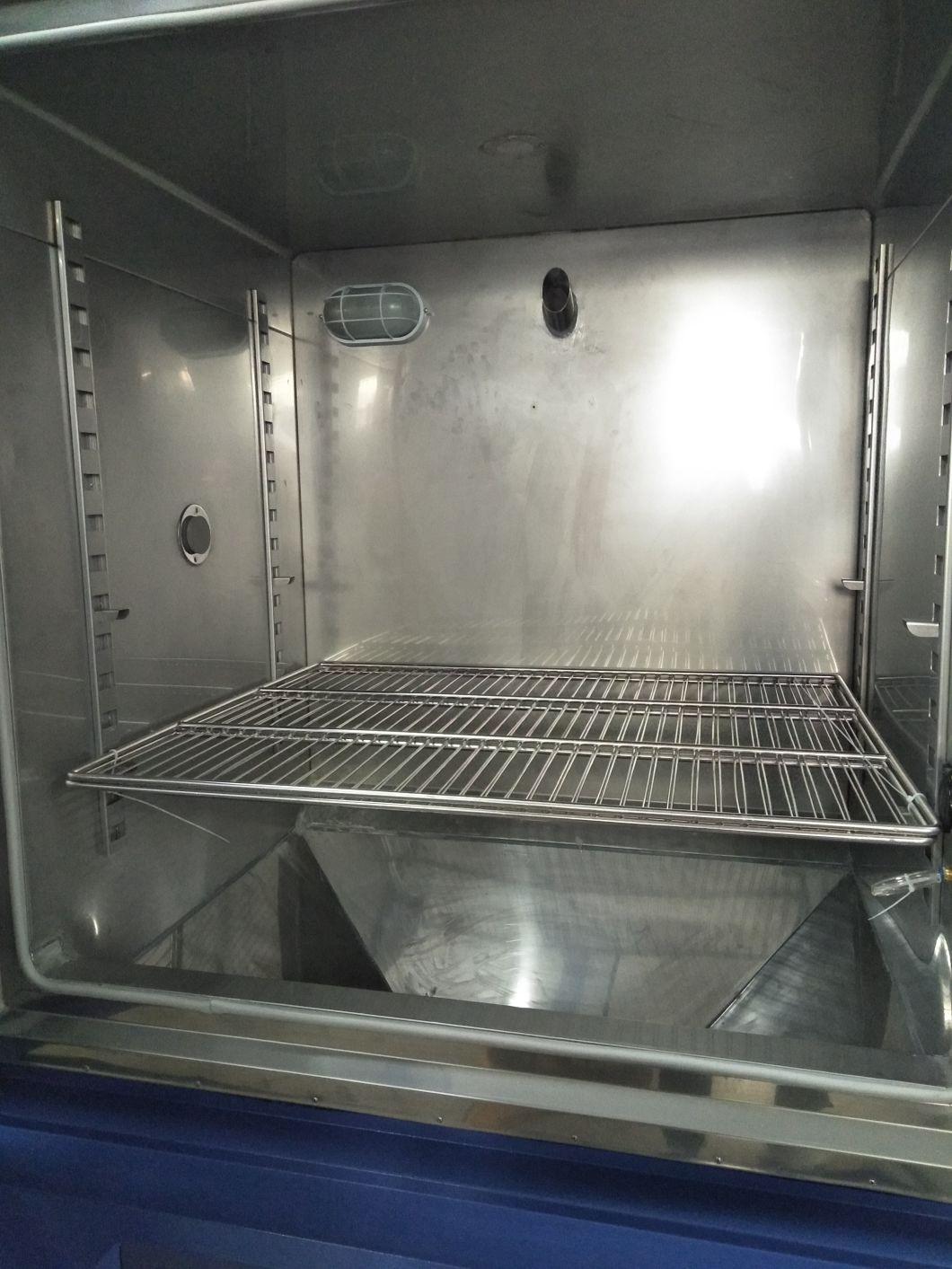

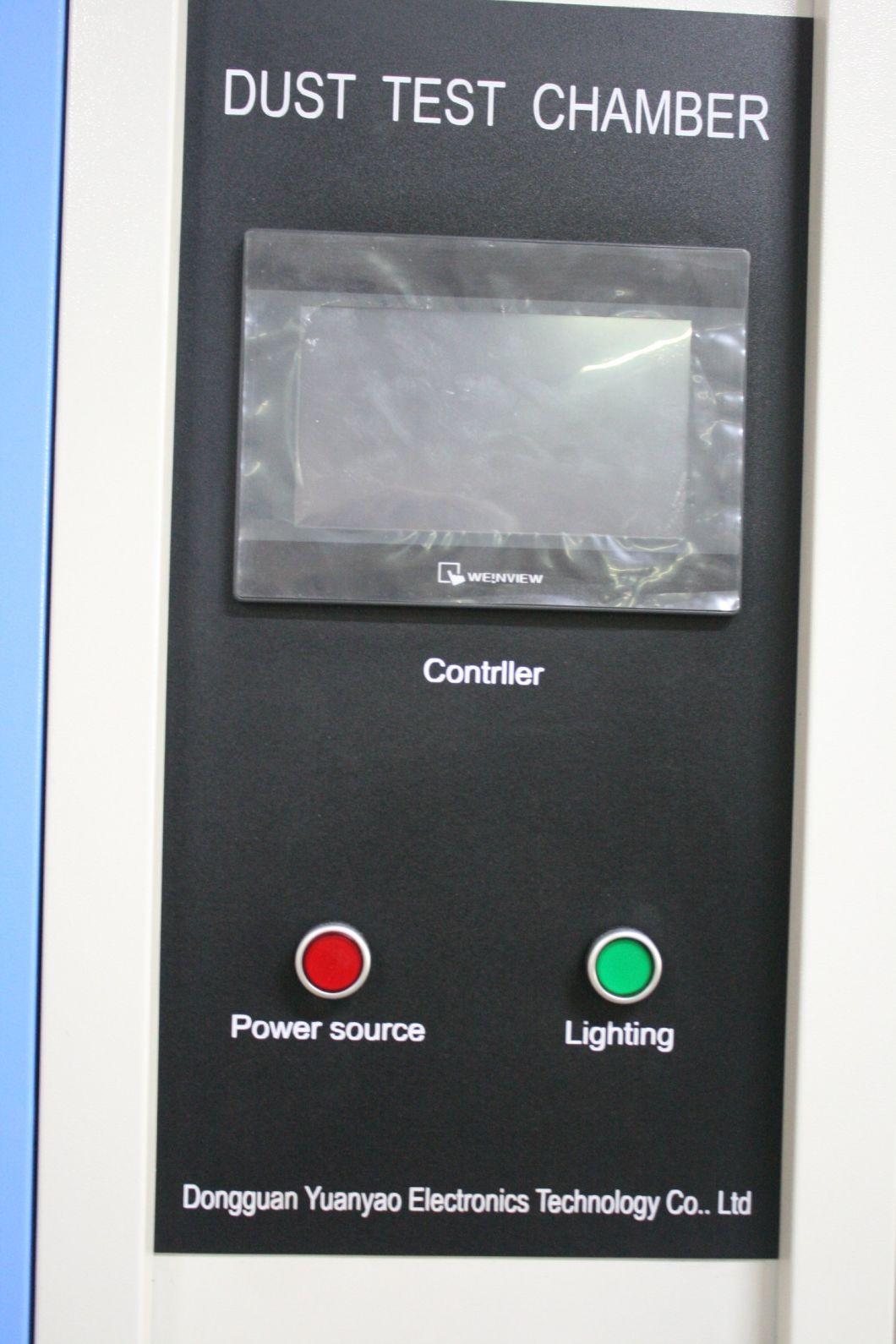

Product detail

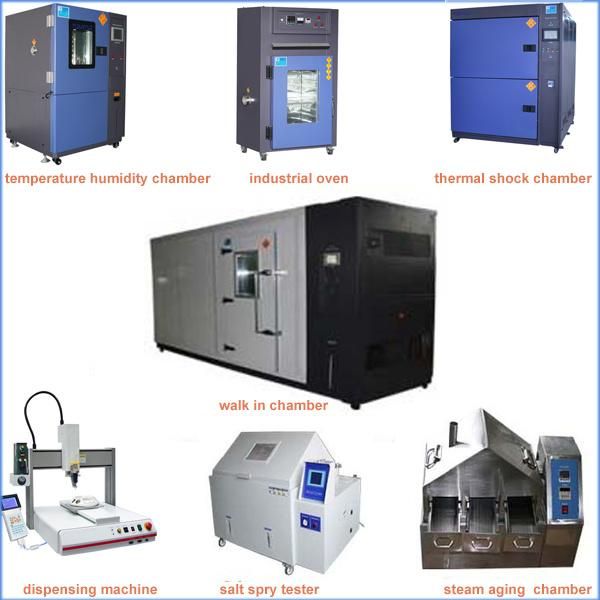

Except dust tester chamber, Dongguan Yuanyao Electronics Technology Co., Ltd also can supply:

Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester,
Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber,
Burn-in test equipment, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.




Company profile







If you want to know more about dustproff test chamber,please feel free to contact us.

Thank you for your reading !
