• Model NO.：RSY-01
• Temperature Range：Room Temperature ~ 200 Degree
• Temperature Accuracy：+-0.3 Degree Celcius
• Heating Medium：Oil
• Trademark：Pubtester
• Origin：China

Basic Info.

Model NO. RSY-01 Temperature Range Room Temperature ~ 200 Degree Temperature Accuracy +-0.3 Degree Celcius Heating Medium Oil Trademark Pubtester Origin China

Product Description

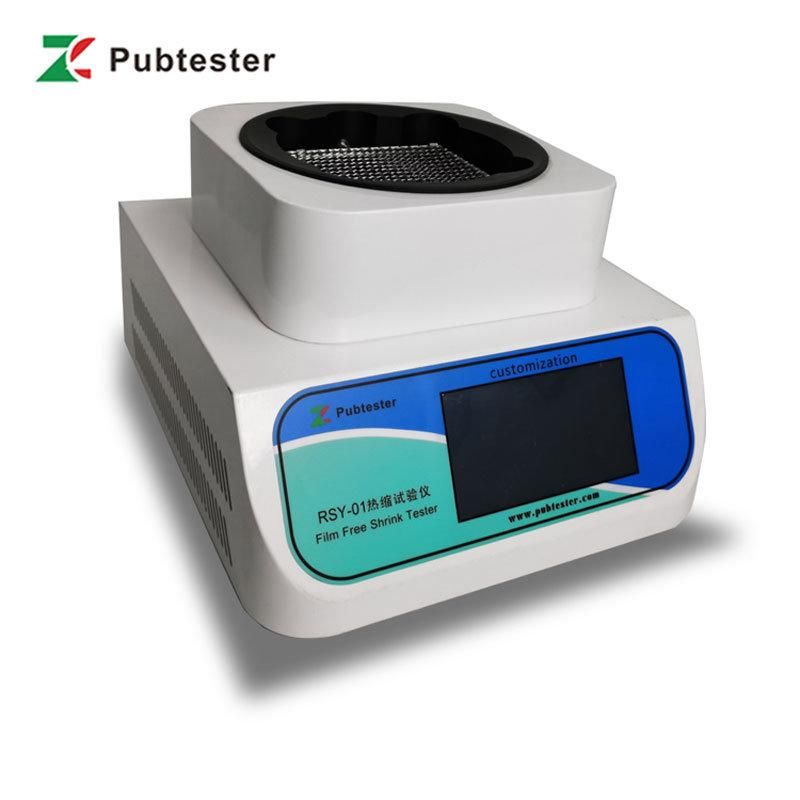

RSY-01 Film Free Shrink Tester

RSY-01 Film Free Shrink Tester is professionally applicable to the determination of heat shrinking performance and dimensional stability of various films, heatshrinkable tubes, hard PVC films for tablets, and back-sheets in the fluid medium at different temperatures.


Product Features

• Controlled by micro-computer with 7-inch color touch screen, simple operation
• High-precision circuit processing technology, which is accurate and reliable
• Non-volatile liquid medium heating, wide heating range
• Digital P.I.D. temperature control technology ensures the preset temperature to be reached rapidly without any fluctuation
• Automatic timer function to efficiently guarantee the accuracy of test data
• Standard clamp wire mesh support could make the test done smoothly

Technical Specifications

Specification	RSY-01
Sample dimension	≤140mm x140mm
Temperature Range	Room Temperature ~ 200ºC
Temperature Accuracy	±0.3ºC
Heating Medium	Oil
Dimension	370(L)mm×420(W)mm×310(H)mm
Net weight	14Kg
Working Temperature	23ºC±2ºC
Working Humidity	50%±5%
Power supply	AC220V 50Hz / 120VAC 60Hz

Standards
ASTM D2732, GB/T 13519

Configuration
Standard Configuration: Instrument, Clamp Wire Meshes, Clamp Wire Mesh Support
