GDTF-200/200 CVT Calibration System (Customized)

HV Hipot Electric Co., Ltd.
  • Type：CVT Test and Calibration
  • Maxcapacity：No
  • Accuracy Grade：0.2
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Digital

Base Info

  • Model NO.：GDTF-200,200
  • Control：Manual Control
  • Weight：500-1000Kg
  • Power Source：380V or 415V
  • Oil Cylinder Position：No
  • Input Voltage：415V±10%, 50Hz
  • Voltage output：200kV
  • Rated Capacity：200kVA
  • Rated current：1A
  • Adjustable inductance range：330-630H
  • Duty cycle：constant working of 5mins under rated capacity
  • Adjustable gap range：0-120mm
  • Transport Package：Wooden Case
  • Specification：SGS, ISO
  • Trademark：HVHIPOT
  • Origin：Wuhan, China
  • HS Code：9030899090
  • Production Capacity：500set,Year

Description

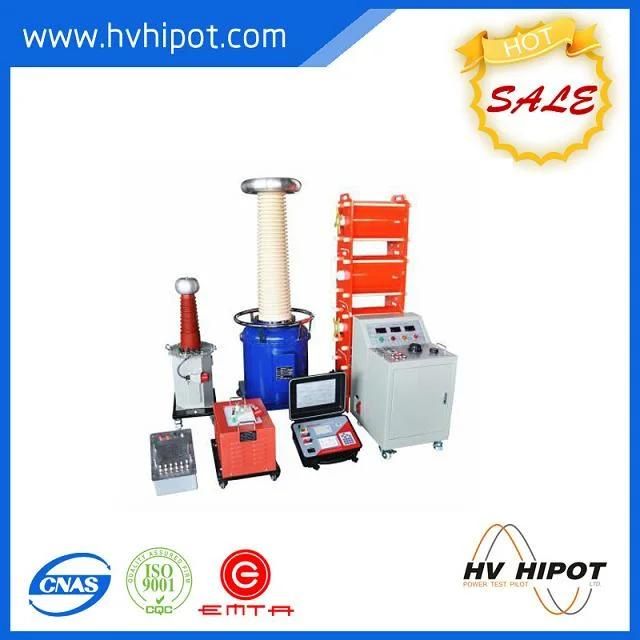

Rated capacity200kVA  Rated frequency50HzRated voltage200kVRated current1AAdjustable inductance range330-630HAdjustable gap range0-120mm

Excitation Transformer  GDJL-10kVA/5/10kV
 Rated capacity10kVAInput voltage0-400V, single phase 50HzOutput voltage5kV,10kVTypeDry type transformerWeightapprox. 60kg

Control Unit  GDTF -10kVA
 Rated capacity50kVARated voltage50kVRated current1AInductance330-630H (per set, adjustable)Quality factorQ ≥20 Weightapprox. 80kg

HV Testing Transformer  YD-10/100
 Input voltage0-400VInput current25AOutput voltage0-100kVOutput current0-100mA

GDTF-200/200 CVT Calibration System (Customized)
