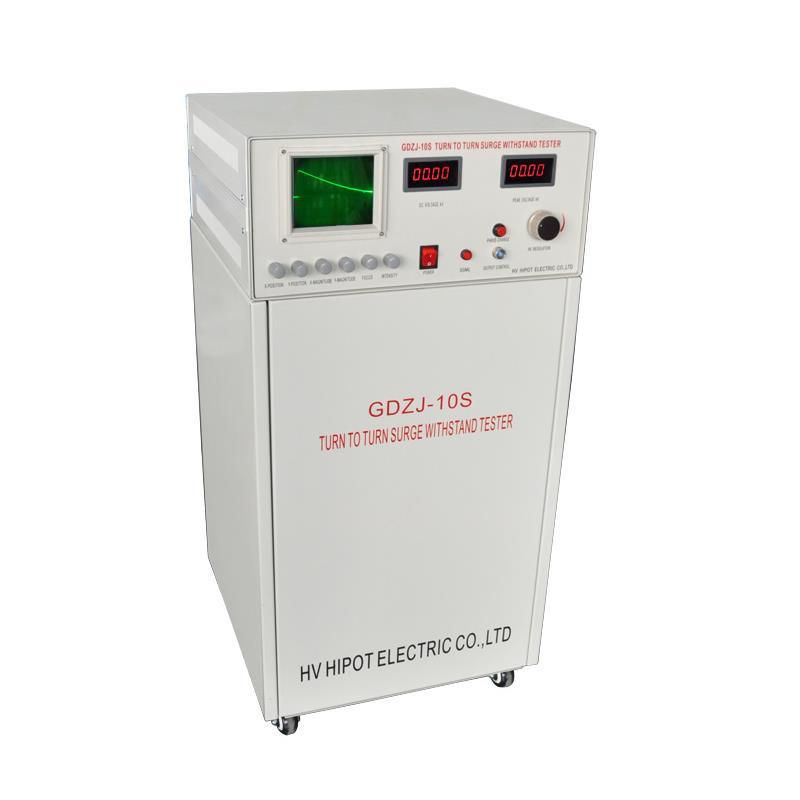

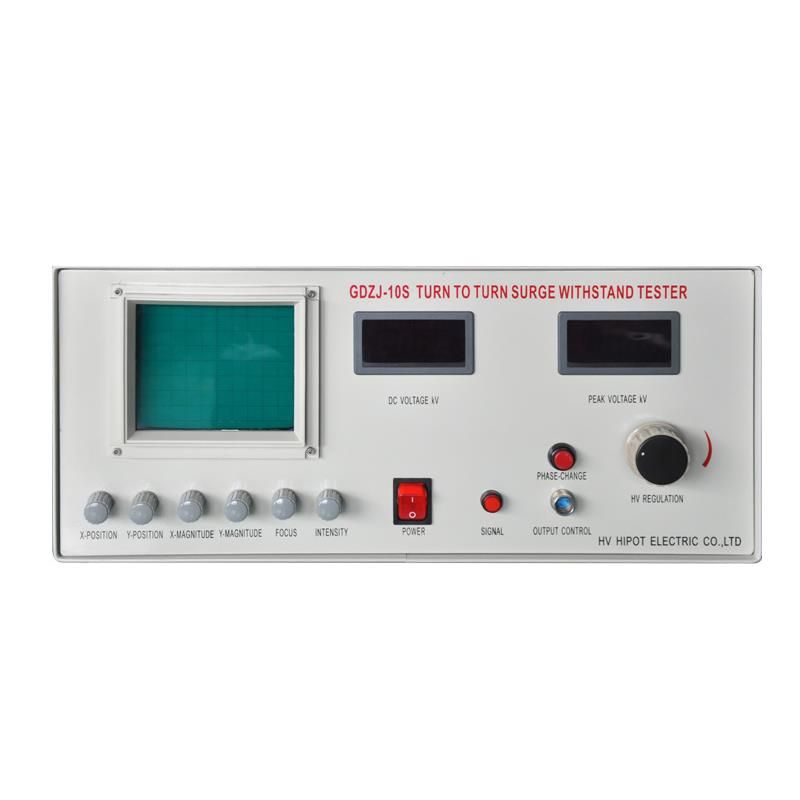

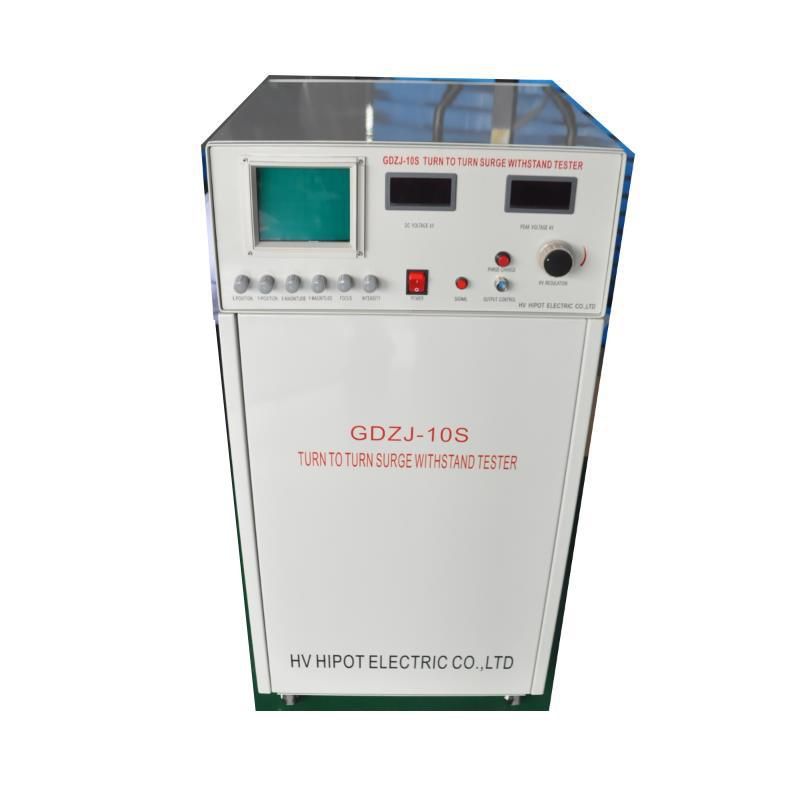

GDZJ-10S Turn to Turn Surge Withstand Tester for Generator

Product Description

GDZJ-10S is used to test turn-to-turn insulation strength of single phase motor, 3-phase motor, Micro motor, Special motor, electrical motor, transformer(including switching mode power supply transformer), relay and winding electrical equipment.

Features

It can detect below faults:

• Turn-to-turn Insulation breakdown
• Corona discharge
• Winding connection mistake
• Winding disconnection
• Turn-to-turn difference
• Short-circuit between inter-phase,winding phase or iron core

Specifications

Peak voltage	500V-10kV continuous adjustment
Peak error	≤ 5%(1kV-10kV)
Waveform rising time	0.5μS or 0.2μS
Power supply	220V±10%, 50HZ
Power consumption	≤ 800 W
Dimension	Upper part: 460*480*200 mm Below part: 460*480*730 mm Total: 1000*450*550mm
Weight	about 70kg



Important Tips

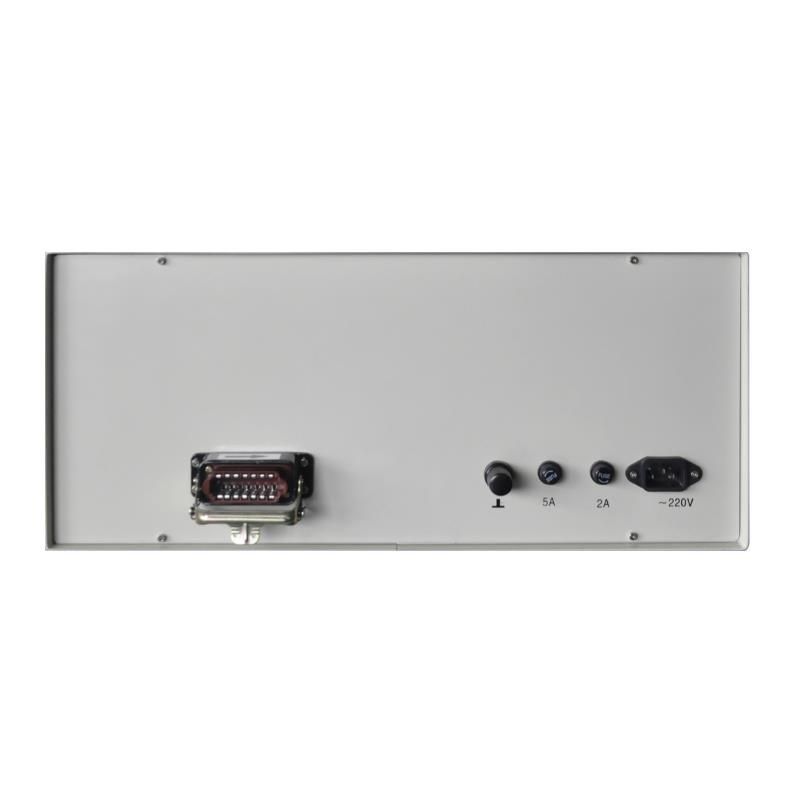

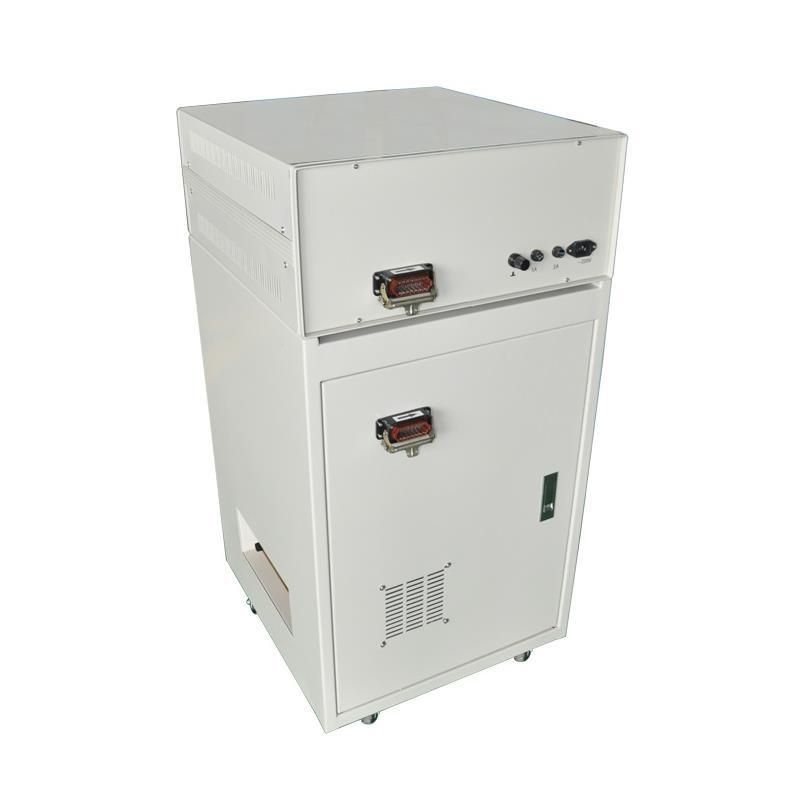

GDZJ-10S includes two parts. Upper part includes control unit and regulator. The below part is HV major loop. The two parts are connected by 14core socket.
