• Model NO.：STPZ-3
• Loading Method：No
• Display：Digital
• Control：Electronic
• Weight：250kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stpz-3 Continuous Eight-Wheel Viameter
• Application：Widely Applied in Construction Inspection and Road
• Benchmark Measuring Length：3m
• Error：1%
• Measurement：4061X800X600mm
• Elongation：4061mm Compression: 2450mm
• Apparatus Weight：235kg
• Controller Weight：6kg
• Transport Package：Wooden Case
• Specification：2CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STPZ-3 Loading Method No Display Digital Control Electronic Weight 250kgs Power Source AC220V Oil Cylinder Position No Product Name Stpz-3 Continuous Eight-Wheel Viameter Application Widely Applied in Construction Inspection and Road Benchmark Measuring Length 3m Error 1% Measurement 4061X800X600mm Elongation 4061mm Compression: 2450mm Apparatus Weight 235kg Controller Weight 6kg Transport Package Wooden Case Specification 2CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

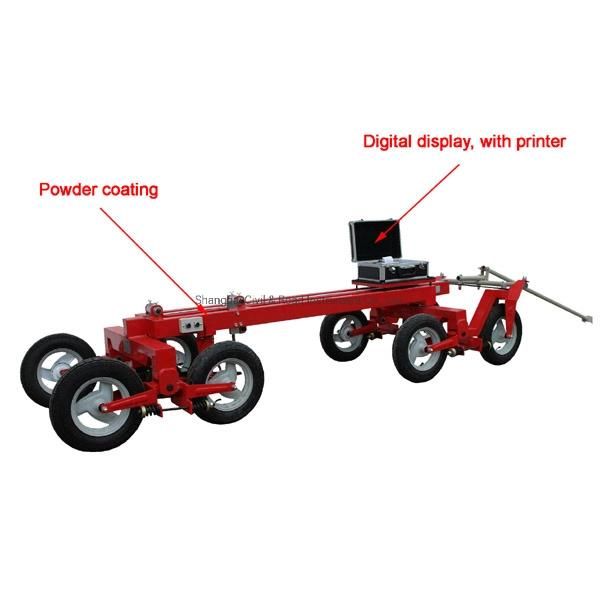

STPZ-3 Continuous Eight-wheel Viameter
Application: widely applied in construction inspection and road maintenance acceptance,  and providing reliable analytical pavement data for teaching, design and research institutes.
Features: advanced micro-processing systems and large-scale integrated circuit technology are adopted in the apparatus, continuous measurement, automatic calculation, display and print standard deviation of pavement roughness; with high  accuracy and speed while significantly reducing the labor intensity and improve working efficiency.
Specification:

Benchmark measuring length	3m
Used to	determine road level and flatness
Error	1%
Measuring speed	12Km/h
Pull speed not on inspection	25Km/h
Power	2W
Environment temperature shall be between	-10ºC and +40ºC
Measurement	4061×800×600mm
Elongation	4061mm compression: 2450mm
Apparatus weight	235kg
Controller weight	6kg
