• Model NO.：GD-8017
• Warranty：12 Months
• Accuracy of Pressure Meter：+-0.4%
• Testees：Gasoline, Volatile Petroleum and Other Volatile PE
• Temperature Control：Digital Temperature Controller
• Transport Package：Standard Wooden Case
• Specification：CE, ISO
• Trademark：GOLD
• Origin：Chongqing of China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. GD-8017 Warranty 12 Months Accuracy of Pressure Meter +-0.4% Testees Gasoline, Volatile Petroleum and Other Volatile PE Temperature Control Digital Temperature Controller Transport Package Standard Wooden Case Specification CE, ISO Trademark GOLD Origin Chongqing of China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

Summary:

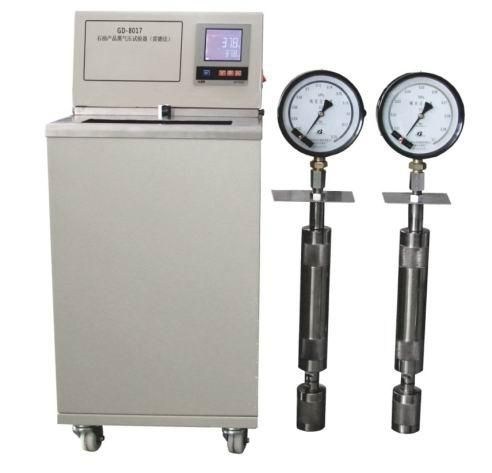

    This instrument is made and designed as per national standard of People's Republic of China GB/T 8017 Petroleum Products- Determination of vapor pressure- Reid method. It is used to test make determination for vapor pressure of gasoline, volatile crude oil and other volatile petroleum products.


I. Main technical features:
1. Floor type structure. Stainless steel working table. It is good looking and easy to operate. Accessories are complete.
2. Digital temperature controller. The temperature in water bath is uniform. Temperature control accuracy is high. It can meet the requirements of test.
3. Two precise pressure meters to detect the gas pressure inside the bomb.
4. Two sets of vapor pressure bombs. It can do synchronous tests.

II. Main technical specifications:

1. Power supply:   AC (220±10%) V, 50Hz
2. Heating power of bath:  1600W
3. Temperature control range of bath:  Ambient to 90ºC
4. Temperature control accuracy of bath: ±0.1ºC
5. Accuracy of pressure meter:  ±0.4%
6. Ambient temperature: (-10~35)ºC
7. Relative humidity: ≤85%
8. Maximum power consumption:  1700W
9. Dimension:    350mm×340mm×750mm

Packaging List:


No	Name	Unit	Quantity
1	Water bath and temperature controlling device	Set	1
2	Single opening pressure bomb	Set	1
3	Pressure meter (0~0.1 ) MPa	Piece	2
4	Mercury thermometer 0°C~50 °C, sale division is 0.1 °C	Piece	1
5	Screw valve with outer screw thread (for sealing air chamber)	Piece	2
6	Screw cap with inner screw thread (for sealing gasoline chamber)	Piece	2
7	Small gasket (outer diameter φ14.5mm, inner diameter φ8mm)	Piece	4
8	Sealing ring for pressure meter (outer diameter φ18mm, inner diameter φ6mm)	Piece	4
9	Silicone stopper 8#	Piece	1
10	Stopping ring for thermometer (1#)	Piece	2
11	Fuse 10 A (Inner Dia.5×20)	Piece	2
12	Power supply wire	Piece	1
