• Model NO.：GD-H1634
• Loading Method：Dynamic Load
• Weight：0-100Kg
• Power Source：AC220V
• Application：Oxidation Stability Test Apparatus for Grease
• Function：ASTM D 942 Oxidation Stability Tester
• Device：Grease Oxidation Stability Apparatus-ASTM D942
• ASTM D942：ASTM D942 Oxidation Stability of Grease
• Heating Method：Heating Tube Heating
• Control Method：Automatic Control
• Temperature Control Mode：Single Chip Pid Thermostat
• Temperature Control Range：Normal Temperature ~ 99c
• Work Unit：Two Bombs
• Pressure Display：LCD Display Curve
• Transport Package：Wooden Case or Plywood
• Specification：according to ASTM D942
• Trademark：GOLD
• Origin：China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-H1634 Loading Method Dynamic Load Weight 0-100Kg Power Source AC220V Application Oxidation Stability Test Apparatus for Grease Function ASTM D 942 Oxidation Stability Tester Device Grease Oxidation Stability Apparatus-ASTM D942 ASTM D942 ASTM D942 Oxidation Stability of Grease Heating Method Heating Tube Heating Control Method Automatic Control Temperature Control Mode Single Chip Pid Thermostat Temperature Control Range Normal Temperature ~ 99c Work Unit Two Bombs Pressure Display LCD Display Curve Transport Package Wooden Case or Plywood Specification according to ASTM D942 Trademark GOLD Origin China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

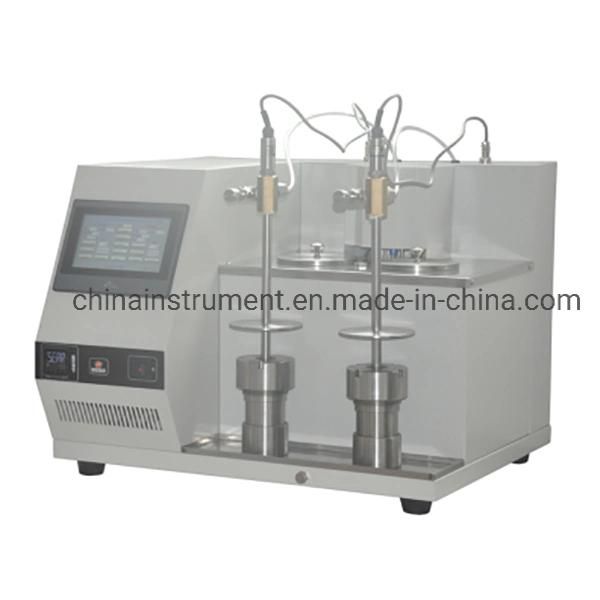

GD-H1634 ASTM D 942 OXIDATION STABILITY TESTER for Lubricating Greases


Introduction:
The sample is oxidized in an oxygen bomb that meets the conditions. Observe and record pressure at regular intervals. After a specified period of time, the degree of oxidation of the grease is determined by a corresponding decrease in oxygen pressure. The instrument is suitable for determining the oxidation resistance of grease in static storage in an oxygen-tight system under conditions of increased test temperature.


Main Features:
1. The entire test is controlled by computer and does not require manual operation.
2. The test process has a curve real-time display.
3. Automatically store the results at the end of the test.
4. A test bomb can be loaded into 5 sample containers.
5. Stainless steel electric heater, heating bath.
6. The instrument can automatically check for gas leaks and alarms.
7. PID program temperature control technology, digital display, accuracy ± 1 ° C PT100 sensor.
8. 64-bit PIC capture card, the sampling speed is fast, and the result is processed quickly.
9. The LCD interface uses human-machine dialogue.
10. Alloy steel dish holder with 18% chromium and 8% nickel.


Technical Parameters:
1. Applicable standards: ASTM D942, IP142, SH/T0325
2. Heating method: heating tube heating
3. Control method: automatic control
4. Temperature control mode: single chip PID thermostat
5. Machine power: 2.2KW
6. Temperature control range: normal temperature ~ 99ºC
7. Work unit: two bombs
8. Result processing: automatic calculation of single chip microcomputer
9. Pressure display: LCD display curve
10. Working power supply: AC220V / 50HZ


ASTM D 942 OXIDATION STABILITY TESTER for Lubricating Greases:
