• Model NO.：GW-011A1
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-011A1
• Print：Print The Test Result
• Testing Speed：0-500mm,Min
• Max.Load：2t
• Unit：Kg,N,Lb
• Motor：AC Serve Motor
• Testing Stroke：800mm or 1000mm
• Power：AC 220V,50Hz
• Transport Package：Wooden Case
• Specification：50kg
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-011A1 Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-011A1 Print Print The Test Result Testing Speed 0-500mm/Min Max.Load 2t Unit Kg,N,Lb Motor AC Serve Motor Testing Stroke 800mm or 1000mm Power AC 220V,50Hz Transport Package Wooden Case Specification 50kg Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

 Computer system universal testing machine/equipment(GW-011A1)with the extend device


Brief introduction:

This machine is used to test tension, compression, bend, shearing force, adhesion, peeling force, tear strength, etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, electric appliance, automobile, etc., which are the basic facilities for input quality control, physical inspection, material research.

This machine is suitable for test all material .can change all grips.
Technical Specifications:



Model	GW-011A1 Computer system universal testing machine
Test speed:	0~500mm/min
Max. load:	2000kg
Unit:	kg, N, Ib switchable
Counter:	LCD display
Motor:	AC serve motor
Sample rate:	16times/sec.
Speed resolution:	0.003mm
Stroke:	1000mm(exclude the grips)
Voltage:	AC220V
Dimension:	81*48*230cm
N.W.:	210kg



Standard for:
ISO,ASTM,GB

Attached accessories:
3 sets of grips (GW-G: Pliers grips; GW-O: leather tear grips; GW-C: Elastomeric grips)
2 die moulds
Lenovo business PC with 17 inch screen, software CD, Canon printer  (for computer desk, customer prepared by customers.)



What about the product quality?

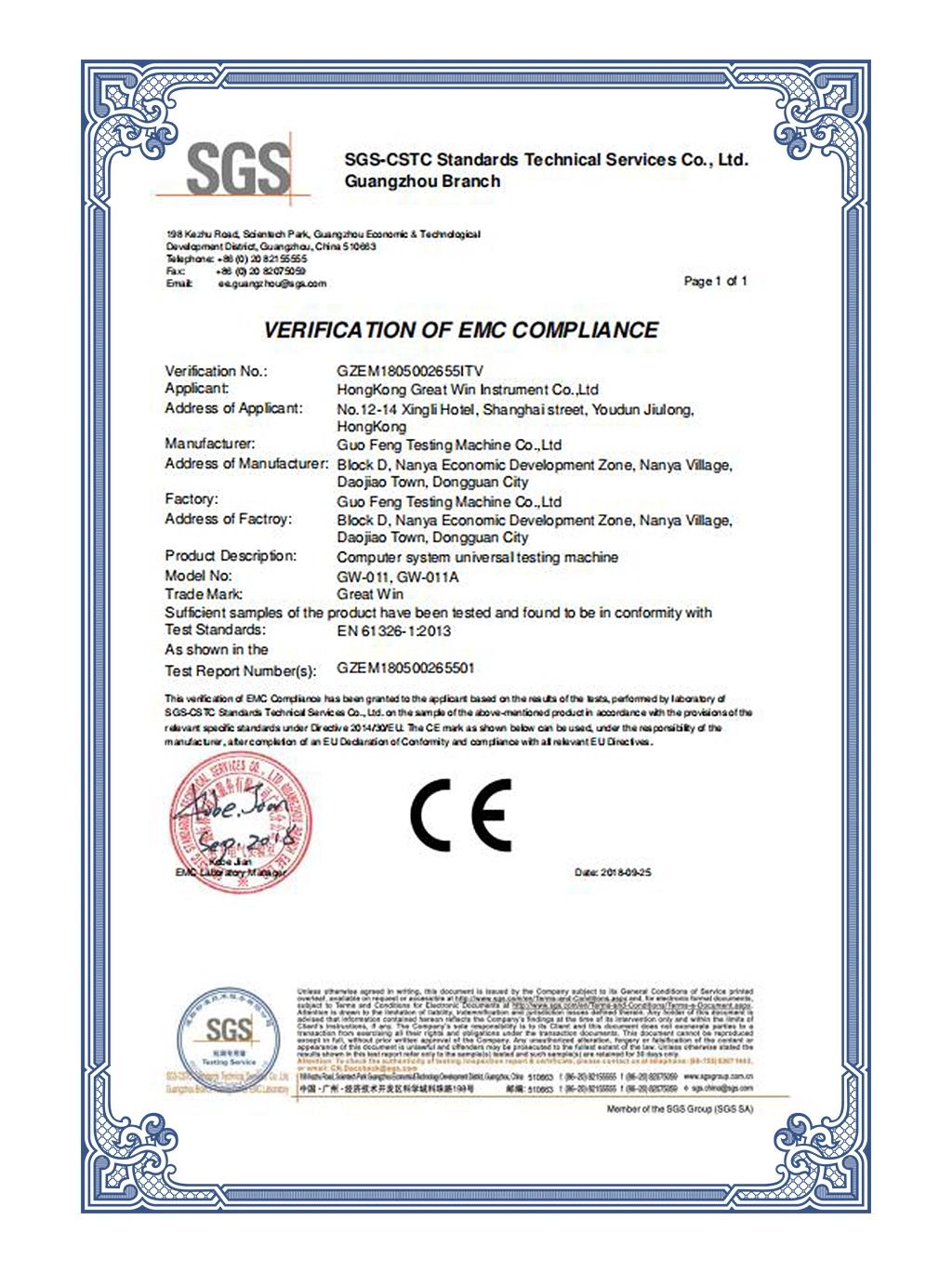

For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
