• Model NO.：STMJ-1
• Loading Method：No
• Display：Digital
• Control：Digital Display
• Weight：350kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stmj-1 Automatic Marshall Compactor
• Hammer Weight：4.536kg
• Height of Fall：457.2mm
• Compaction Frequency：60hit,Min
• Diameter of The Compaction Head：98.5mm
• Specimen Size：101.6(Dia)X87mm
• Direct Reading Counter：0-9999 Times
• Laminated Hardwood Block Compaction Foun：457X200X200mm
• Voltage：AC220V
• Power：370W
• Features：Whole Hammerhead, Control Cabinet Made of ABS Plas
• Transport Package：Wooden Case
• Specification：0.87CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STMJ-1 Loading Method No Display Digital Control Digital Display Weight 350kg Power Source AC220V Oil Cylinder Position No Product Name Stmj-1 Automatic Marshall Compactor Hammer Weight 4.536kg Height of Fall 457.2mm Compaction Frequency 60hit/Min Diameter of The Compaction Head 98.5mm Specimen Size 101.6(Dia)X87mm Direct Reading Counter 0-9999 Times Laminated Hardwood Block Compaction Foun 457X200X200mm Voltage AC220V Power 370W Features Whole Hammerhead, Control Cabinet Made of ABS Plas Transport Package Wooden Case Specification 0.87CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

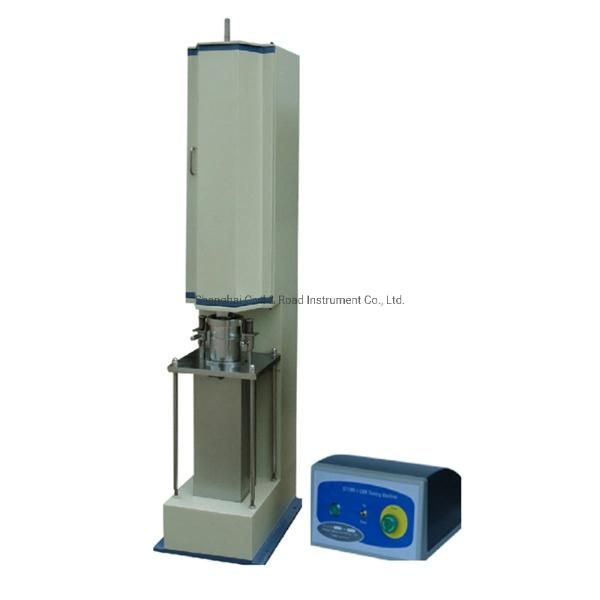

STMJ-1 Automatic Marshall Compactor
Application: The Marshall compactor is applied for compaction of Marshall specimen, which will result in consistent and repeatable laboratory specimens, and releasing staff for other work during the compaction process.
Technical parameters:

Hammer weight	4.536Kg(STMJ-1)
Height of fall	457.2mm
Compaction frequency	60hit/min
Diameter of the compaction head	98.5mm(STMJ-1)
Specimen size	101.6(dia)×87mm(STMJ-1)
Direct reading counter	0-9999 times
Laminated hardwood block compaction foundation	457x200x200mm
Voltage	AC220V
Power	370W
Dmension	Main: 540mm*540mm*1740mm Control cabinet: 400mm*330mm*700mm
Net weight	about 180kg

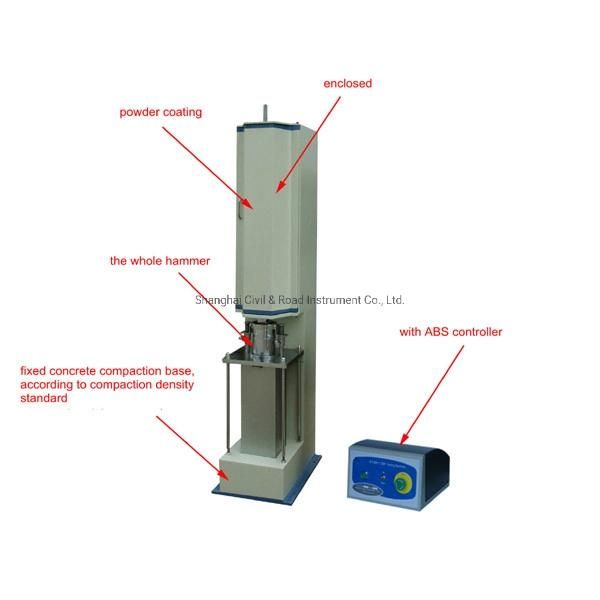

Features: whole hammerhead, control cabinet made of ABS plastic; consistent and even compaction
