• Loading Method：No
• Display：Digital
• Control：Digital
• Weight：60kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Zc3-a Digital Concrete Vibro Consistometer (Vebe T
• Slump Cone：100mm; Inner Diameter at Bottom: 100mm Cone Heigh
• Container Inner Diameter：240mm Inside Height: 200mm
• Voltage：for AC220V
• Vibrator Frequency：3000mn;200hit,Min
• Amplitude of The Vibrtion Table：0.5mm
• Engine Power：250W
• Timing Range：0.1-99.9sec
• Transport Package：Wooden Case
• Specification：0.3CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Loading Method No Display Digital Control Digital Weight 60kg Power Source AC220V Oil Cylinder Position No Product Name Zc3-a Digital Concrete Vibro Consistometer (Vebe T Slump Cone 100mm; Inner Diameter at Bottom: 100mm Cone Heigh Container Inner Diameter 240mm Inside Height: 200mm Voltage for AC220V Vibrator Frequency 3000mn;200hit/Min Amplitude of The Vibrtion Table 0.5mm Engine Power 250W Timing Range 0.1-99.9sec Transport Package Wooden Case Specification 0.3CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

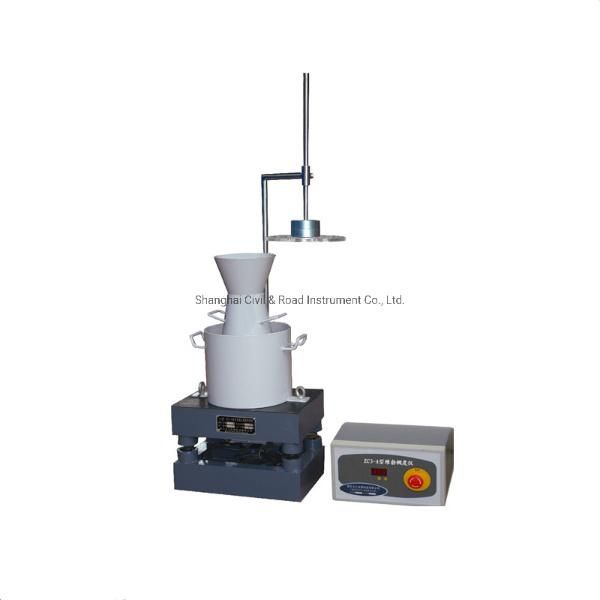

ZC3-A Digital Concrete Vibro Consistometer(Vebè consistometer)
VeBe Time Digital Concrete Vibro Consistometer VeBe Time Consistometer
Concrete Vebe Consistometer Apparatus


STANDARD: ASTMC143, BS1881
Application: determination of consistency and workability of concrete. Vibro Consistometer comprises vibrating table,  container, slump cone, graduated rod and plate. Mainly used for the determination of dry concrete with the aggregate diameter not greater than 40mm and Weibo consistency value is between 5-30 seconds. It complies with the requirements of GB / T 50080, JG/T248-2009, JG / T 250-2009, JB3043, SL352, ASTMC143, JTG E30, and BS1881 Standards.

This test method is a variation of the simple slump test and subjects the concrete to vibration after removal from the slump cone. The time taken for the concrete to be recompacted is taken as a measure of workability. The small vibrating table operates at a fixed amplitude and frequency, and in the test a plastic disc is placed into contact with the upper surface of the concrete.
The test is completed when the lower surface of the disc has been completely coated with cement grout.

Main techical parameter:



Slump cone	100±2mm; inner diameter at bottom: 100±2mm cone height: 300±2mm
Container inner diameter	240±5mm inside height: 200±2mm
Voltage	For AC220V±10%
Vibrator frequency	3000±200hit/min
Amplitude of the vibrtion table	0.5±0.10mm
Engine power	250W
Timing range	0.1-99.9sec
Net weight	30kg
