• Model NO.：SXVLF
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC 110V,220V at Customized
• Oil Cylinder Position：Under
• Test Voltage Range：80kv
• Output Frequency：0.1Hz,0.05Hz,0.02Hz
• Fuse：20A
• Transport Package：Plywood Case
• Specification：ISO9001 SGS
• Trademark：Sansion
• Origin：Wuhan, China
• HS Code：9030339000
• Production Capacity：100 Units

Basic Info.

Model NO. SXVLF Control Computer Control Weight 0-100Kg Power Source AC 110V/220V at Customized Oil Cylinder Position Under Test Voltage Range 80kv Output Frequency 0.1Hz,0.05Hz,0.02Hz Fuse 20A Transport Package Plywood Case Specification ISO9001 SGS Trademark Sansion Origin Wuhan, China HS Code 9030339000 Production Capacity 100 Units

Product Description

General information:

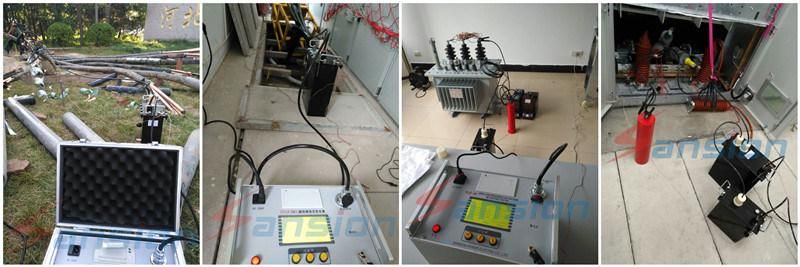

VLF stands for Very Low Frequency. VLF is generally considered to be 0.1 Hz and lower, its major application is for testing solid dielectric cable, transformers, motors, generators, switchgear and other electrical apparatus.

A VLF hipot is just an AC output tester but with an output frequency of 0.1 Hz or lower rather than 50/60Hz. Although the frequency is very low, it is still an alternating current with polarity reversals every half cycle. At 0.1 Hz output, rather than 60Hz, it takes 600 times less current and power to apply an AC voltage to a capacitive load, like a long cable.

Features:

√  Adapts microprocessor controlled, can realize voltage set-up/down, measuring and protecting automatically. Manual intervention is allowable even during the auto voltage boosting.
√  Portable, easy to move.
√  Large LCD can display waveform clearly, and test report can be printed. Built-in printer.
√  The data of current, voltage, and waveform can be sampled at HV side.
√  A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside.
√  Closed-loop negative feedback circuit is adopted. No capacity rising during outputting.
√  Over voltage and current protection: When the output is beyond the limitation, the control unit will shut itself down within 20ms.

Specifications:
√   Peak voltage: 80kV
√   Output frequency: 0.1Hz, 0.05Hz and 0.02 Hz (selectable)
√   Fuse: 20A
√   Maximum load capacity: 0.5μF@0.1Hz; 1.0μF@0.05Hz; 2.5μF@0.02Hz
√  Power supply: 220V ±10%, 50Hz ±5% (If using a portable generator, make sure the output voltage and frequency are stable. Power >3kW. Power supply @ 110V 60Hz is optional)
√   Output voltage accuracy: peak voltage instability ≤1%; frequency instability ≤3%.
√   Voltage waveform distortion: ≤5%.
√   Working environment:  indoor or outdoor; -10ºC-+50ºC; 85%RH.
√   Weight: Control unit - 4kg; HV unit I: 25kg; HV unit II: 45kg.

Remarks: Capacitance of test object cannot be larger than the maximum value of the test instrument. If capacitance of test object is smaller than 0.05μF, the hipot should be equipped with an auxiliary device (supplied by Sansion Power Electric at your option).

Please contact us for further information. Sansion Power has a technically experienced expertise team to select correctly designed test set for you.
