• Model NO.：GW-220A
• Loading Method：Static Load
• Display：Computer Rubber Rheometer
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-220A
• Torque Range：0-5n.M 0-10n.M 0-20n.M
• Air-Pressure Requirement：0.5MPa--0.65MPa (User Prepare The Dia 8 Trachea)
• Swing Frequency：100r,Min(About 1.67Hz)
• Temperature Resolution：0.1 Centigrade
• Torque Resolution：0.001nm
• Compressed Air：0.35-0.40MPa
• Transport Package：Standard Export Safety Packing
• Specification：60KG
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-220A Loading Method Static Load Display Computer Rubber Rheometer Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-220A Torque Range 0-5n.M0-10n.M0-20n.M Air-Pressure Requirement 0.5MPa--0.65MPa (User Prepare The Dia 8 Trachea) Swing Frequency 100r/Min(About 1.67Hz) Temperature Resolution 0.1 Centigrade Torque Resolution 0.001nm Compressed Air 0.35-0.40MPa Transport Package Standard Export Safety Packing Specification 60KG Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

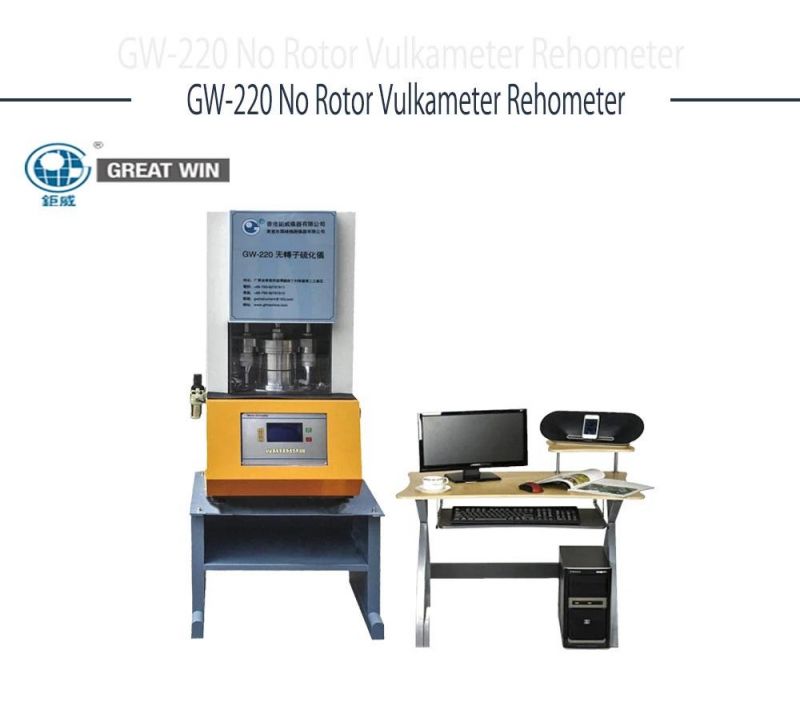

Computer Control No Rotor Rheometer with Is06502 (GW-220A)

Equipment summary:
Computer-type non-rotor rheometer is a widely used tester in rubber processing industry, rubber quality control and basic research rubber, For optimize formula of rubber provide accurate data, It can accurately measure the scorch time, rheometer time, sulfide index, the maximum and minimum torque and other parameters.

Main functions:

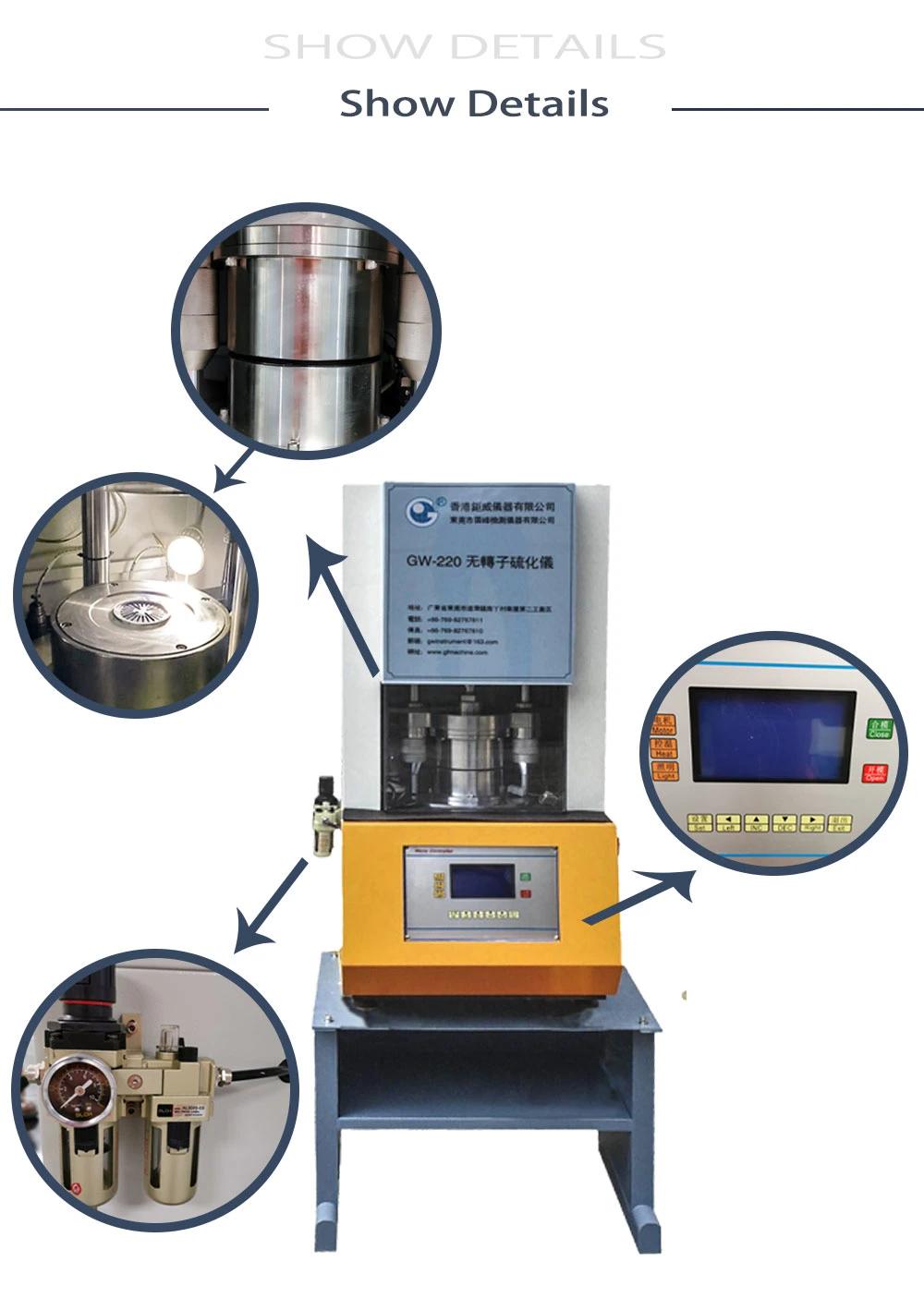

Computer-type non-curing equipment used monolithic rotor control, which include: Host, temperature measurement, temperature control, data acquisition and processing, sensors and electrical chains and other components. These measurements, temperature control circuit consists of a temperature control device, platinum resistance, heater composition, capable of automatic tracking power and ambient temperature changes, automatically correct PID parameters to achieve fast and accurate temperature control purposes. Data acquisition system and mechanical linkage to complete the rubber vulcanization process of force torch signal automatic detection, automatic real-time display of temperature and settings. After curing, automatic processing, automatic calculation, print vulcanization curve and process parameters. Show curing time, curing power Ju, also has a variety of audible alert.
Computer-type non-rotor curing equipment controlled by computer, the computer setting the parameters of the direct control of test parameters rheometer. Display real-vulcanization curve and temperature curve, store test results, different adjustable comparison of test results and in a different color.

Features:
1. This instrument is really confined mold cavity, and the United States Alpha (formerly Monsanto) has done. Repeatability, and test data comparable with the Alpha. At the international leading position in the same industry.
2, . The instrument development platform based on large databases, temperature control devices using the software to directly control and collection and processing. Instrument to overcome the general curing temperature of the shortcomings of using temperature controller (accuracy poor). The technical leadership of international new trend.
3. This instrument has statistics, analysis, storage and comparison functions. Humanized design, easy to operate
4. Using imported high-precision sensors

How it works:
The rubber sample into the mold cavity is almost entirely enclosed and maintained at test temperature, the mold cavity are of two parts, of which the lower part with a small linear reciprocating movement (swing oscillation), oscillatory shear specimen produced strain determination is the reaction torque of the mold cavity (force), this torque (force) depends on the shear modulus of rubber.
Curing test specimens after the start of the shear modulus increases, the computer machine real-time display and record the torque (force), when the torque (force) rose to a stable value or the maximum as well as return to the state, they get a torque ( force) and time curve, that is, curing curve (Figure 1), shape of the curve and test the temperature and plastic material characteristics.

Corresponding standard:
ASTMD5289-95    ISO6502-1999(E)   GB/T16584-1996

Applicable industry:
Widely used in rubber products industries.





What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
