• Model NO.：GDQH-601-50
• Power Source：AC220V
• Vacuum pump：BSV24 20m3 , H 0.5PA
• Compressor：MT18 6.75m3 , H
• Purification system：D48 filter element F-03 adsorbent heating system
• Cooling system：Air cooling
• Transport Package：Standard Export Wooden Box
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan, China

Basic Info.

Model NO. GDQH-601-50 Power Source AC220V Vacuum pump BSV24 20m3 / H 0.5PA Compressor MT18 6.75m3 / H Purification system D48 filter element F-03 adsorbent heating system Cooling system Air cooling Transport Package Standard Export Wooden Box Specification ISO, SGS Trademark HV Hipot Origin Wuhan, China

Product Description

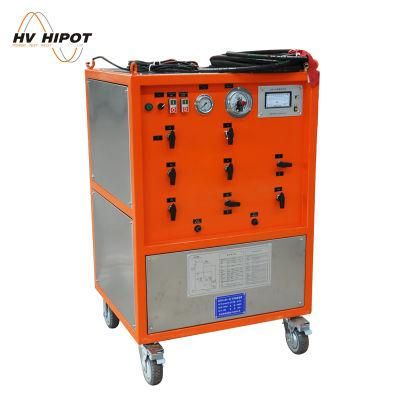

GDQH-601-50 SF6 Gas Recovery Device SF6 Filling Device

General Information

This device is a special equipment for SF6 gas insulated electrical equipment manufacturing, using and scientific research departments to recover from SF6 equipment, purify SF6 gas, it has the ability to vacuum and inflate.

Main functions

1. This equipment can vacuum the SF6 electrical switch and measure the degree of vacuum.
2. Can fill SF6 electrical switch with SF6 gas.
3. Can recover gas from SF6 electrical switch.
4. It can purify the recovered SF6 gas.
5. Store SF6 gas.



Main components

1.Vacuum pump: BSV24   20m³ / H   0.5Pa
2.Compressor: MT18   6.75m3 / H
3.Purification system: D48 filter element F-03 adsorbent   heating system.
4.Cooling system: Air cooling
5.Storage tank:  50L container, safety valve, pressure 3.9Mpa
6. Valve:  ball-valve 3-365R01   DN15
7. Control system: It can perform various operations and instrument monitoring of the device.
8. Connection pipe: DN10 high pressure hose M20 * 1.5.


Technical Specifications


Vacuum rate	20M3/H vacuum degree: 10Pa
Inflation rate	10M3/H
Recovery rate	8M3/H
SF6 gas recovery rate	95~98%
Working temperature	-10ºC~+45ºC
Storage tank	50L  3.9MPa
Initial recovery pressure	8bar
Unit weight	200KG
Power supply	220V ± 10%, 50HZ
Power	4kW
