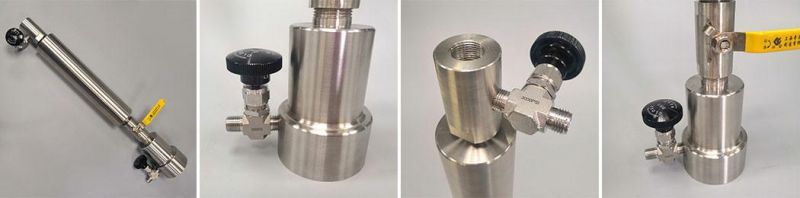

LPG Gauge Vapor Pressure Apparatus with Upper and Lower Chambers
Fushun Bright Science and Technology Co., Ltd.- Spare Parts：Upper and Lower Chambers, 3 PCS Valves
- Body Material：304 Stainless Steel
- Valves Material：316 Stainless Steel
- Thread of Valves：M14*1.5 M or 1,4 NPT M
- Thread of Gauge：M20*1.5 or 1,4 NPT F
- Thread of Body：1,4 NPT F
Base Info
- Model NO.：BZYT
- Transport Package：According to Orders, Air Column
- Specification：Conform to ASTM D1267
- Trademark：BRT
- Origin：China
- HS Code：9026209090
- Production Capacity：1000 PCS,Month
Description
Thread of Needle Valves M14*1.5 in china, (1/4"NPT M can be choosed for you),
Thread of Apparatus Body 1/4"NPT F
Note:
1. Samples shall be obtained and stored in accordance with Practice D1265 unless the test samples can be taken directly from the source of the material to be tested.
2. Assemble the apparatus with inlet valve of the lower chamber open, the straight-through valve between the two chambers open, the bleeder valve closed, and with the proper range pressure gauge attached.
Keywords:
ASTM D1267 Gauge Vapor Pressure of Liquefied Petroleum (LP) Gases Test Bomb, Gasoline and Diesel Typical Vapor Pressure Apparatus with Valves, Upper and Lower Chambers according to ASTM D323
