Helmet Visor Projectile Shooter Testing Machine

Dongguan Hong Tu Instrument Co., Ltd.
  • Type：Impact Testing Machine
  • Accuracy Grade：0.5
  • Display：Digital
  • Control：Manual Control
  • Weight：100-500Kg
  • Power Source：AC220V

Base Info

  • Model NO.：HT-6023-1
  • Electricity：220V,50Hz
  • Materials：Stainless Steel and Aluminum
  • Testing Standard：En166,En168,ANSI Z87.1
  • The Impact Speed：45-200m,S (Adjustable)
  • The steel Ball Diameter：6mm
  • Impact Ways：Horizontal Impact
  • Safety Function：Alarm Function
  • Air Pressure：0.6MPa
  • Touch Ways：Touch Screen Control
  • Data Display：Touch Screen Display
  • Transport Package：Stronger Wooden Case
  • Specification：GB 811-1998, SNELL SA,K 2010, DOT 218, AS1698
  • Trademark：HOTOTECH
  • Origin：Dongguan
  • HS Code：9013809000
  • Production Capacity：50 Sets Per Month

Description

Impact speed45~200m/s Impact ways Horizontal impactThe stell  ball diameter6mmHigh speed testing velocity systemuse high precision laser testing velocity sense deviceSafety functionMatch the safety alarm indicate light (eg. if the door havn't close, the testing machine can't enter into testing statu) and double limit swtich Headform deviceThe headform can rotation 0-90 degree Laser position deviceLaser point with the impact point at the same positionControl ways Touch screen control Unit displaywill have ft/s, m/s, km/s unit displayCompressor  requirement≥500l/min, ≥0.6MpaElectricity220V 50HZ
Testing procedure
1. Checking the testing machine whether exsit leakage air and appearance damager
2. Connect the air source , waiting for the air source arrived ≥0.6Mpa
3. According to the standard wearing the testing sample on the headform and fixed
4.Open the power , according to the testing standard select the correct steel ball installation to the barrel
5. Use the laser find the impact point on the testing sample
6.According to the testing standard speed , select relative speed to do testing

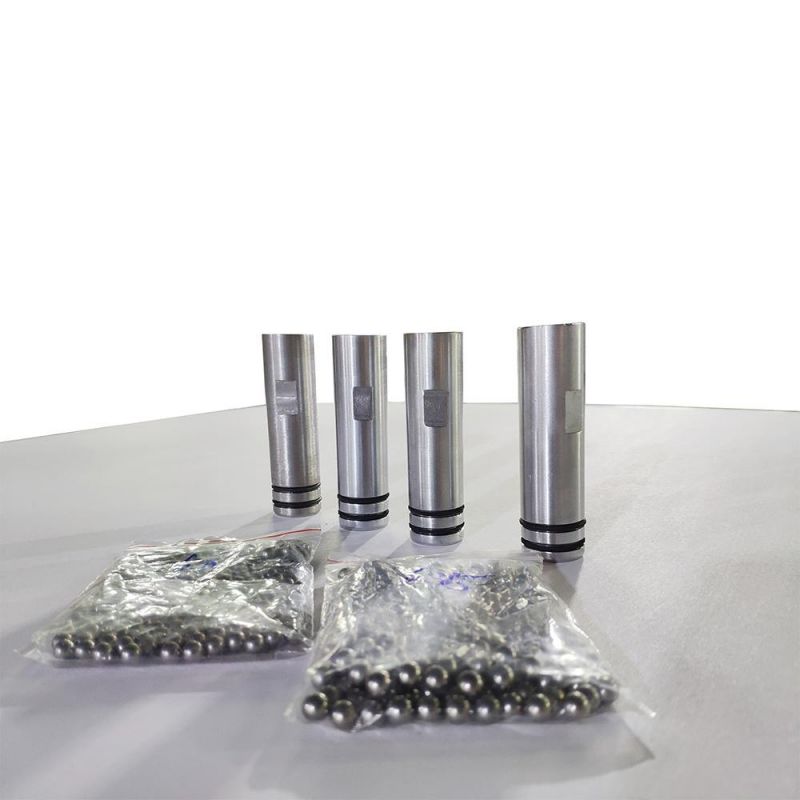

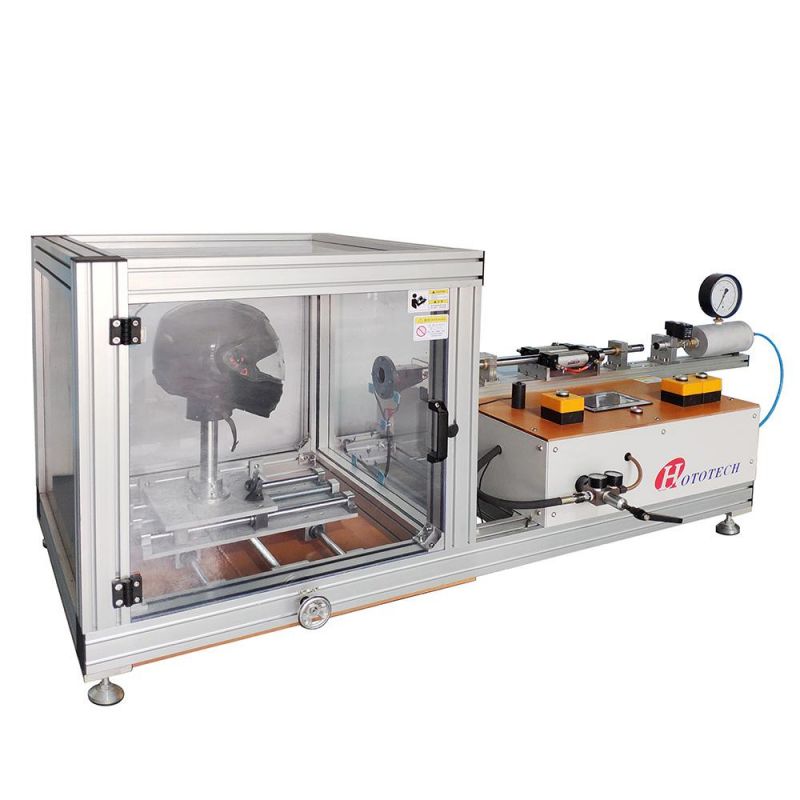

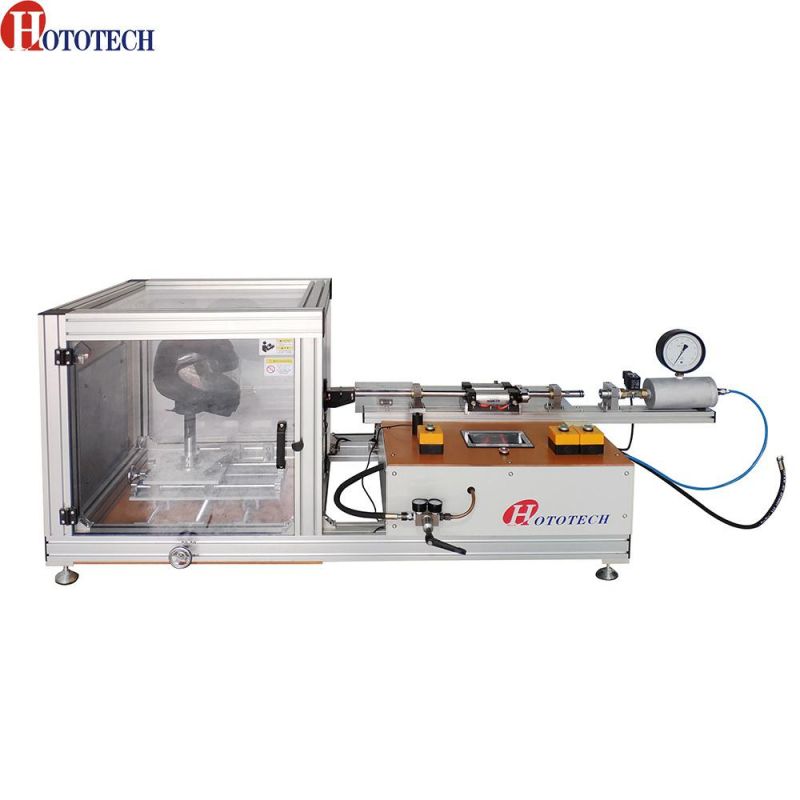

Pictures display
Helmet Visor Projectile Shooter Testing Machine

Helmet Visor Projectile Shooter Testing Machine
Helmet Visor Projectile Shooter Testing Machine


Package show
Helmet Visor Projectile Shooter Testing Machine
