JIS-P8112 L1018 Automatic Leather Bursting Strength Testing Equipment (GW-002)

GREAT WIN INSTRUMENT CO., LTD.
  • Max Diameter of Workpiece：900mm
  • Mass Scope of Workpiece：<900kg
  • Type：Material Testing Machine
  • Maxcapacity：Capacity: 0~100kg,Cm;
  • Accuracy Grade：1
  • Load Way：Mechanical Load

Base Info

  • Model NO.：GW-002
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Electric Control
  • Packaging：Wooden Case
  • Export Markets：Global
  • Model No：Gw-002
  • Sensing Method：Pressure Transducers
  • Indicating Method：LCD Display
  • Capacity：0-100 Kg,Cm
  • Dimension：48*53*53 Cm
  • N.W：67 Kg
  • Power：AC 220V, 50Hz
  • Transport Package：Standard Export Safety Packing
  • Specification：60kg
  • Trademark：Great Win
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：500 Pieces,Year

Description

Basic Info.

Model NO. GW-002 Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-002 Sensing Method Pressure Transducers Indicating Method LCD Display Capacity 0-100 Kg/Cm Dimension 48*53*53 Cm N.W 67 Kg Power AC 220V, 50Hz Transport Package Standard Export Safety Packing Specification 60kg Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

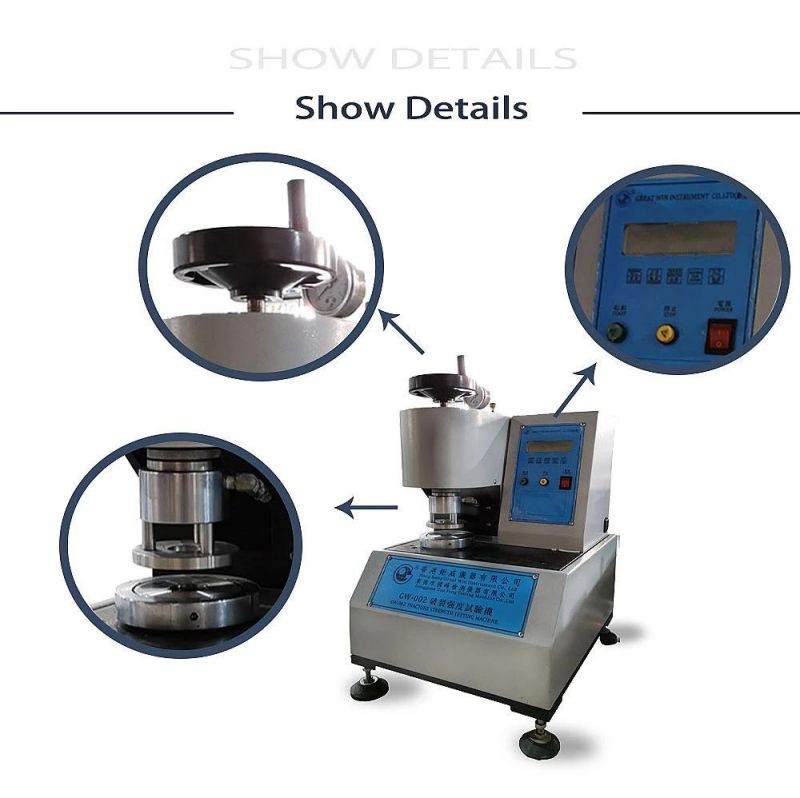

                       Bursting strength testing machine ( GW-002)

•Brief introduction:
 This tester is used to test the bursting- resistance strength of corrugated paper box which are used in packing the products as electronic instruments, electric wire, hardware, bike, valise, food, shoe, furniture,etc, it can be also used to test the cloth and synthetic leather. It is equipped with a pressure cell for detecting output signal. The maximum breaking value can be caught and reserved when to break the specimen. Its resolution is 100 times more than the traditional dial gauge.

•Techincal specifications:

Model GW-002   Bursting strength testing machine
Sensing method: pressure transducers
Indicating method: LCD display
Capacity: 0~100kg/cm;
Dimension: 48*53*53cm;
N.W.:67kg;
Power:AC220V,2.6A

•Standard for:
JIS-P8112,L1018,ASTM-D2210,TAPPI-T403,etc.

•Attached accessories:
1pc spanner
3pcs ruptured membranes
10pcs aluminum films
1 bottle of glycerin

JIS-P8112 L1018 Automatic Leather Bursting Strength Testing Equipment (GW-002)
JIS-P8112 L1018 Automatic Leather Bursting Strength Testing Equipment (GW-002)
JIS-P8112 L1018 Automatic Leather Bursting Strength Testing Equipment (GW-002)JIS-P8112 L1018 Automatic Leather Bursting Strength Testing Equipment (GW-002)JIS-P8112 L1018 Automatic Leather Bursting Strength Testing Equipment (GW-002)JIS-P8112 L1018 Automatic Leather Bursting Strength Testing Equipment (GW-002)JIS-P8112 L1018 Automatic Leather Bursting Strength Testing Equipment (GW-002)JIS-P8112 L1018 Automatic Leather Bursting Strength Testing Equipment (GW-002)JIS-P8112 L1018 Automatic Leather Bursting Strength Testing Equipment (GW-002)JIS-P8112 L1018 Automatic Leather Bursting Strength Testing Equipment (GW-002)
What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
