Computer Universal Testing Machine Hydraulic Pump Test Bench for Hose/Tube/Pipe/Valve/Cylinder
SHANDONG TEREK MANUFACTURE & TRADING CO., LTD.- Max Diameter of Workpiece：>3200mm
- Mass Scope of Workpiece：>20000kg
- Type：Compression Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Computer Control
Base Info
- Model NO.：THT-LDD-10-PC
- Loading Method：Pneumatic Liquid Booster Pump
- Display：Computer Display
- Control：Computer Control
- Weight：500-1000Kg
- Power Source：AC220V
- Oil Cylinder Position：Under
- Pressure Source：Terek Air Driven Booster Pump
- Maximum Output Pressure：4400bar Output Pressure
- Material：Stainless Steel and Aluminum
- Driven Piston Diameter：160mm
- Feature：Test Data Storage and Printing
- Drive Air Range：Compressed Air of 3-10 Bar
- Transport Package：Standard Wooden Case
- Specification：Hydraulic test
- Trademark：Terek
- Origin：Shandong
- Production Capacity：4000pieces,Year
Description
Type
Pressure ratio
Max outlet pressure (bar)
Max flow (L/min)
Connection size(inch)Drive
Connection size(inch) Inlet
Connection size(inch) Outlet
THT-LDD-16
16:1
128
19.73
G1/2
NPT 1/2
NPT 1/2
THT-LDD-28
28:1
224
11.3
G1/2
NPT 1/2
NPT 1/2
TBT-LDD-40
40:1
320
7.69
G1/2
NPT 1/2
NPT 1/2
TBT-LDD-64
64:1
512
4.94
G1/2
NPT 1/2
NPT 3/8
TBT-LDD-80
80:1
640
3.96
G1/2
NPT 1/2
NPT 3/8
TBT-LDD-100
100:1
800
3.13
G1/2
NPT 1/2
NPT 3/8
TBT-LDD-130
130:1
1040
2.4
G1/2
NPT 1/2
M14*1.5
TBT-LDD-175
175:1
1400
1.81
G1/2
NPT 3/8
M14*1.5
TBT-LDD-255
255:1
2040
1.23
G1/2
NPT 1/4
M14*1.5
TBT-LDD-400
400:1
3200
0.79
G1/2
NPT 1/4
M14*1.5

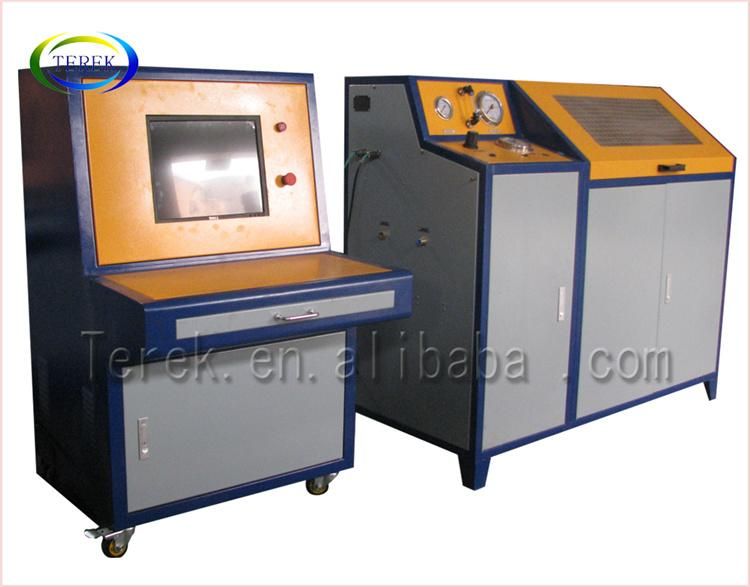

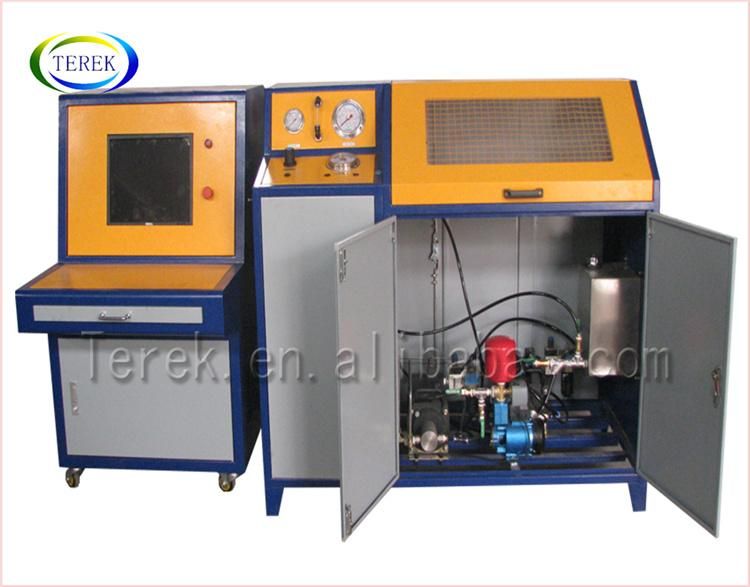

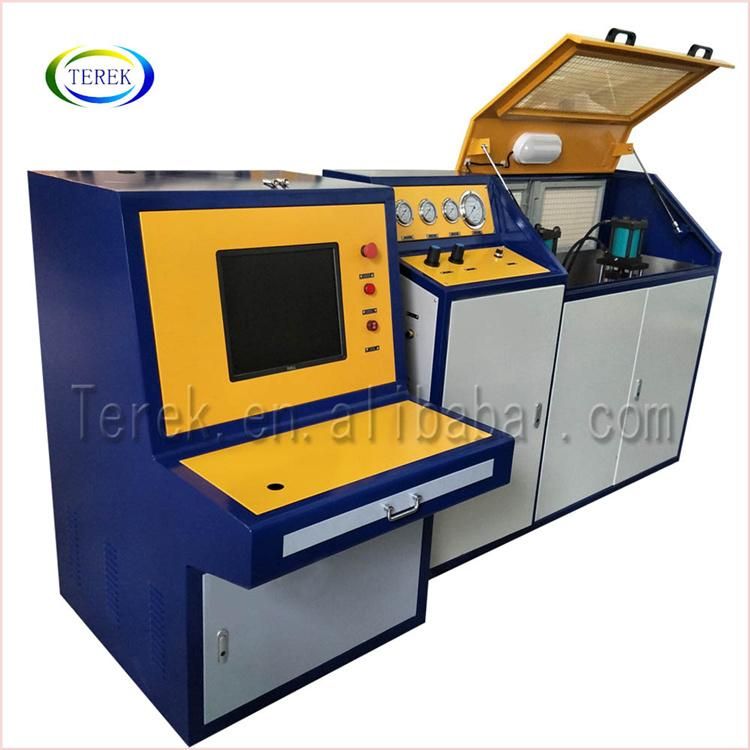

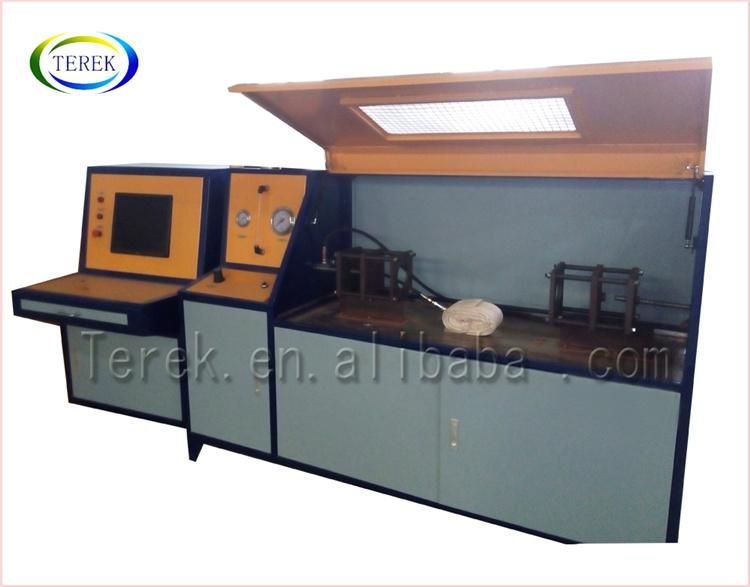

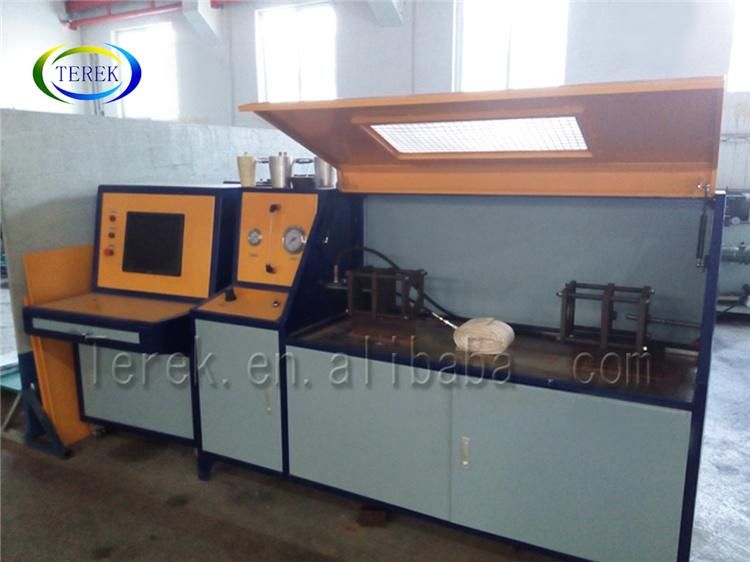

Hydraulic high pressure test machine -Computer control and Manual control type with armored glass protection cabinet.

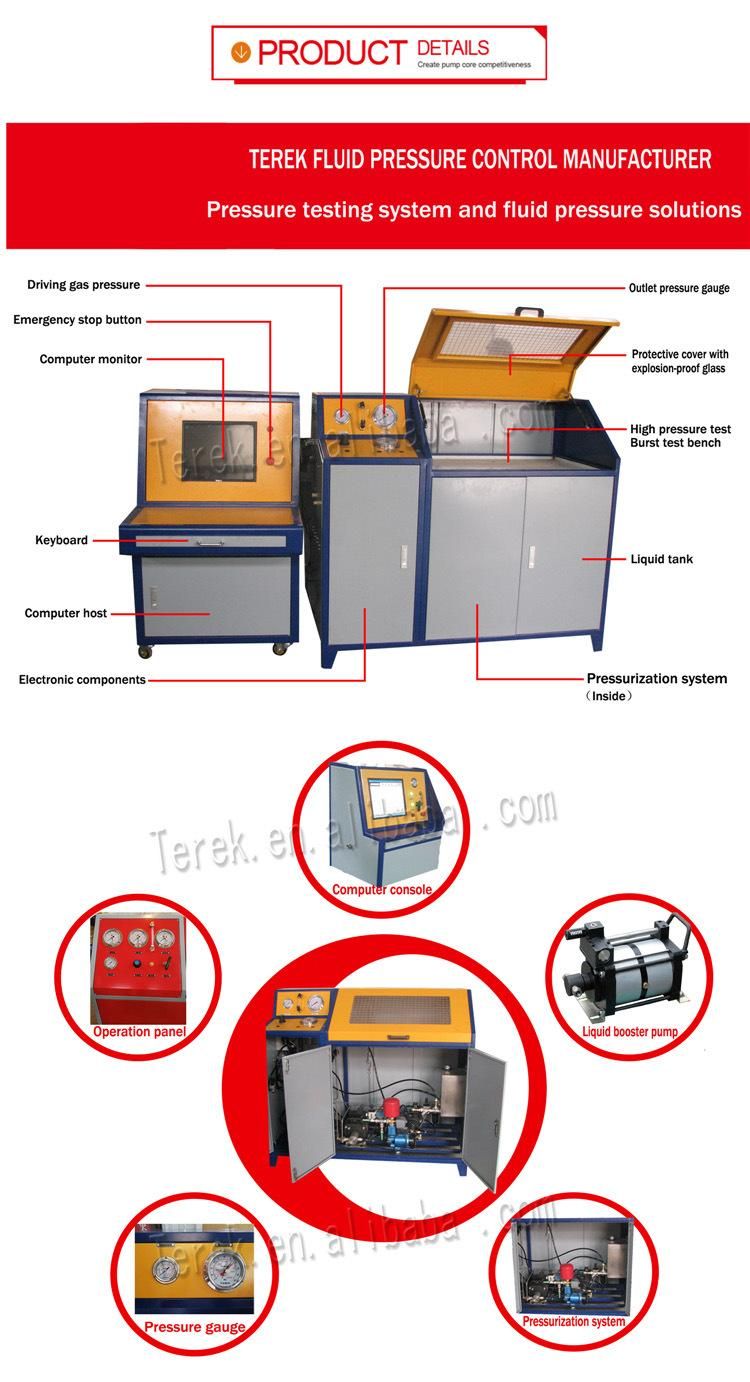

Product picture :
1.TEREK Burst Pressure Test Benches is Special pressure testing equipment, Provide pressure and bursting testing for various hydraulic hoses, valves, vessels, tubes and other hydraulic products.
2.They are use air driven hydraulic pump for liquid pressurization. Test pressure is up to maximally 320Mpa. Test medium can be water and hydraulic oil.
3.We have introduced the German technology to produce this high-performance test bench. The machine has a pneumatic pump and no electricity needed.
4.The machine is easy for operation with low noise and fast boosting. Testing liquid can be recycled. It played a important role in the improvement of quality and reliability.
1. Reliable ,Easy to Maintain ,compact and robust.
2. No heat, flame or spark risk
3. Infinitely variable output pressure and flow capability
4. Air driven Models do not require electrical connection ,easy to apply automatic controls.
5. The piping system with non welded connection
6.Seals system designed for long working life, No lubricated required.
7. Wide range of standard and customized liquid pressure test systems
8.The test fluid system and driving fluid system are separated; it is more convenient for test temperature control and test media diversification
9.There are three different control modes available: Manual control, PLC control, Computer control
10.The use of high-speed sampling card sampling test data (computer control)
11.In the testing process, the pressure can be automatically compensated; time after the bursting pressure decreased rapidly, pressure automatic stop system;
12.The protection of tooling, special design, can effectively protect the damage of blasting operation personnel and equipment.

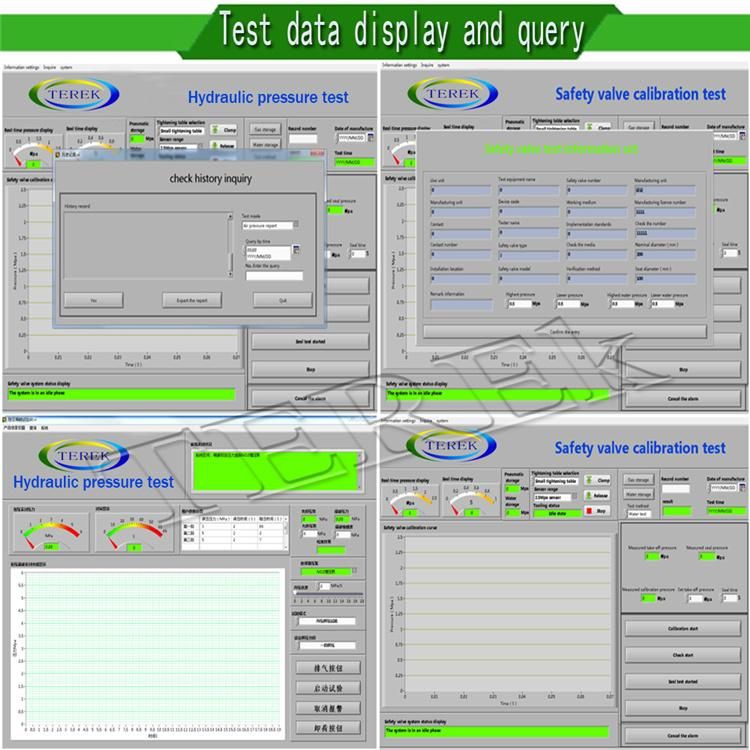

13. The realization computer control function, can be free to set up a water filled exhaust time, holding pressure time, aeration cleaning time, test pressure in the process of the experiment can be set arbitrarily single or multi section pressure maintaining test, can also holding pressure directly after blasting, boost the speed to maintain a constant, can realize adjustment and test data and curve parameters can real-time display, can automatically save the test results, and any print test reports. (computer control)
14. With comprehensive security protection; observation window with security protection mechanism which cannot operate before turn off. Meanwhile with emergency stop switches, safety valves and other hardware protection measures.
