Gdbc-901 IEC60044 Standard Three Phase Transformer Turns Ratio Tester
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- After-sales Service：Life Time Support
- Warranty：1 Year
- Type：Transformer Turns Ratio Tester
- Applicable to Transformer：Connected in Y Type, D Type
- Ratio Measurement Range：1-10000
- Group Measurement Range：1-12
Base Info
- Model NO.：GDBC-901
- Phase Measurement Error：1 Degree
- Standard：IEC76-1, IEC60044
- Power Supply：220V 50Hz
- Turn Ratio Resolution：0.0001
- Test Voltage：0-80kv
- Product Name：Three Phase Transformer Turns Ratio Tester
- Transport Package：Wooden Case
- Specification：57*44*33CM
- Trademark：Gold
- Origin：Chongqing
- HS Code：9031809090
- Production Capacity：300PCS,Month Turns Ratio Tester
Description
GDBC-901 IEC standard Transformer Turns Ratio Tester1 Ratio measurement range 1-10000 2 Group measurement 1-12 3 Phase measurement error 1 degree 4 Ratio measurement error 1-2000 ± 0.2%RDG 2000-10000 ± 0.5%RDG 5 Turns Ratio Tester Test voltage 0~80V, frequency 50Hz 6 Turns Ratio Tester Power supply AC220V ± 10%, 50Hz/60Hz 7 Environment temperature 0-50°C 8 Humidity ≤85%RH 9 Turns Ratio Tester Size 400mm*350mm*200 mm 10 Turns Ratio Tester Weight 7kg
2) Phase angle testing:single phase power transformer, three phase power transformer, CT,PT;
3) Polarity testing: single phase power transformer, three phase power transformer, CT, PT;
4) Vector group testing: three phase power transformer;
Turns Ratio Tester Main Functions:
1) Turns ratio testing: single phase power transformer, three phase power transformer, CT, PT;2) Phase angle testing:single phase power transformer, three phase power transformer, CT,PT;
3) Polarity testing: single phase power transformer, three phase power transformer, CT, PT;
4) Vector group testing: three phase power transformer;

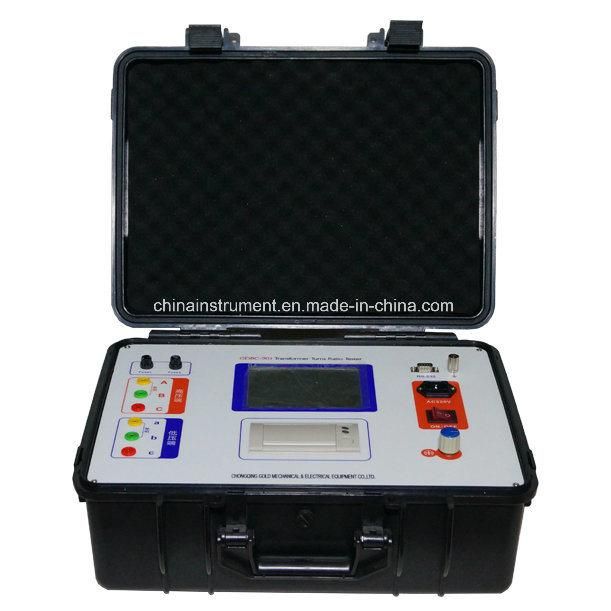

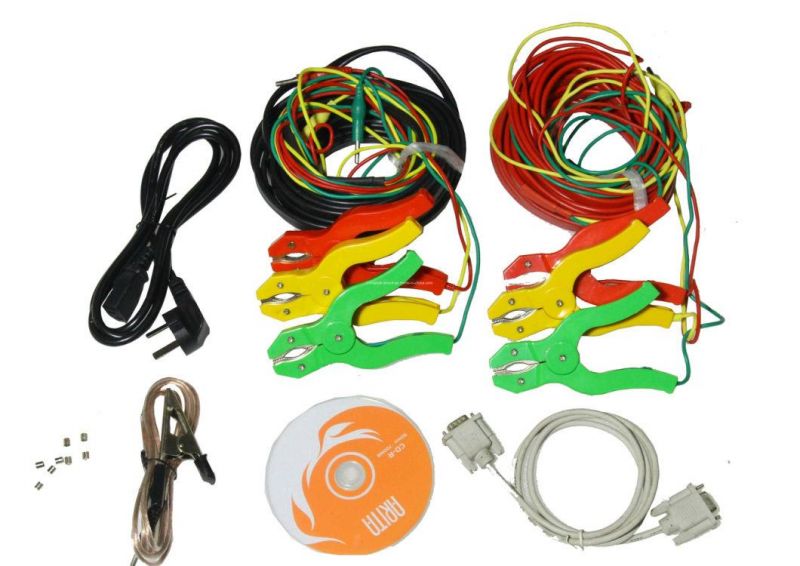

Turns Ratio Tester details:
