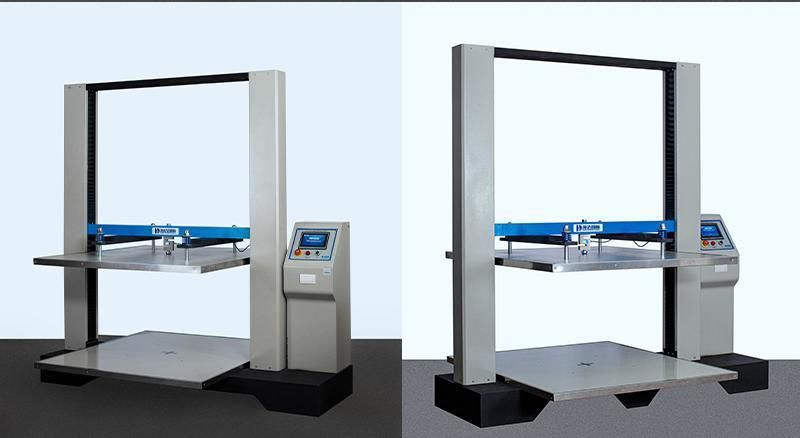

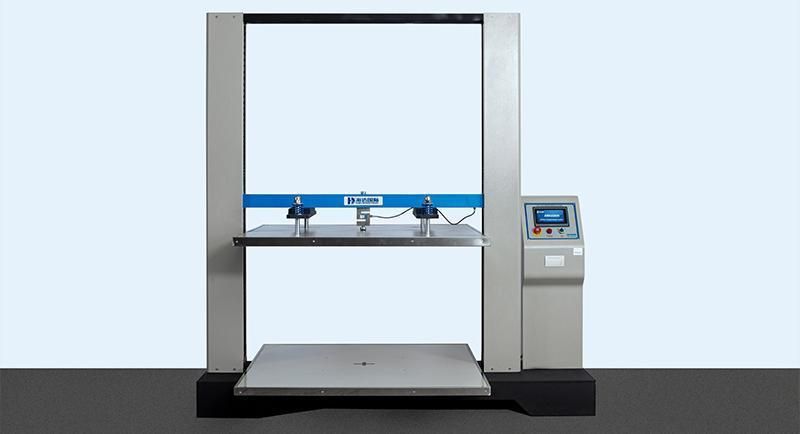

Automatic Carton Box Compression Test Machine
Dongguan Haida Equipment Co., Ltd.- Type:Compression Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
Base Info

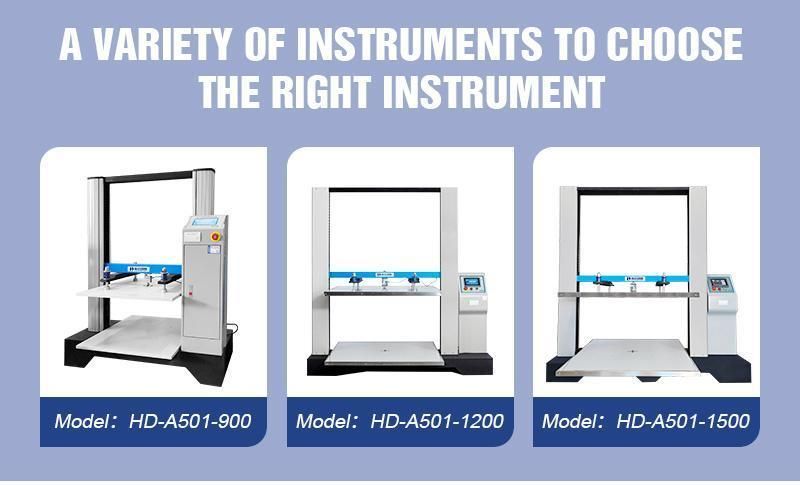

- Model NO.:HD-A501-1200
- Control:Computer Control
- Weight:500-1000Kg
- Power Source:AC220V
- Motor:AC Frequency Conversion Motor ( Taiwan);
- Price:Reasonable
- Quality:High
- Load Accuracy:≤0.5%
- Dimension (L*W*H):2370*1500*2100mm (Can Be Custom Made)
- Load Resolution:1,100, 000
- Capacity (Optional):1t
- Test Space (L*W*H):600*800*800mm
- Speed of Compression:10 ± 3 mm,Min
- Power:1phase, 220V, 50Hz
- Transport Package:Strong Wooden Case
- Specification:Tappi-T804, JIS-20212, GB4857.3.4, ASTM-D642
- Trademark:Haida
- Origin:China
- HS Code:9024109000
- Production Capacity:150 Sets,Month
Description
Basic Info.
Model NO. HD-A501-1200 Control Computer Control Weight 500-1000Kg Power Source AC220V Motor AC Frequency Conversion Motor ( Taiwan); Price Reasonable Quality High Load Accuracy ≤0.5% Dimension (L*W*H) 2370*1500*2100mm (Can Be Custom Made) Load Resolution 1/100, 000 Capacity (Optional) 1t Test Space (L*W*H) 600*800*800mm Speed of Compression 10 ± 3 mm/Min Power 1phase, 220V/ 50Hz Transport Package Strong Wooden Case Specification Tappi-T804, JIS-20212, GB4857.3.4, ASTM-D642 Trademark Haida Origin China HS Code 9024109000 Production Capacity 150 Sets/MonthProduct Description

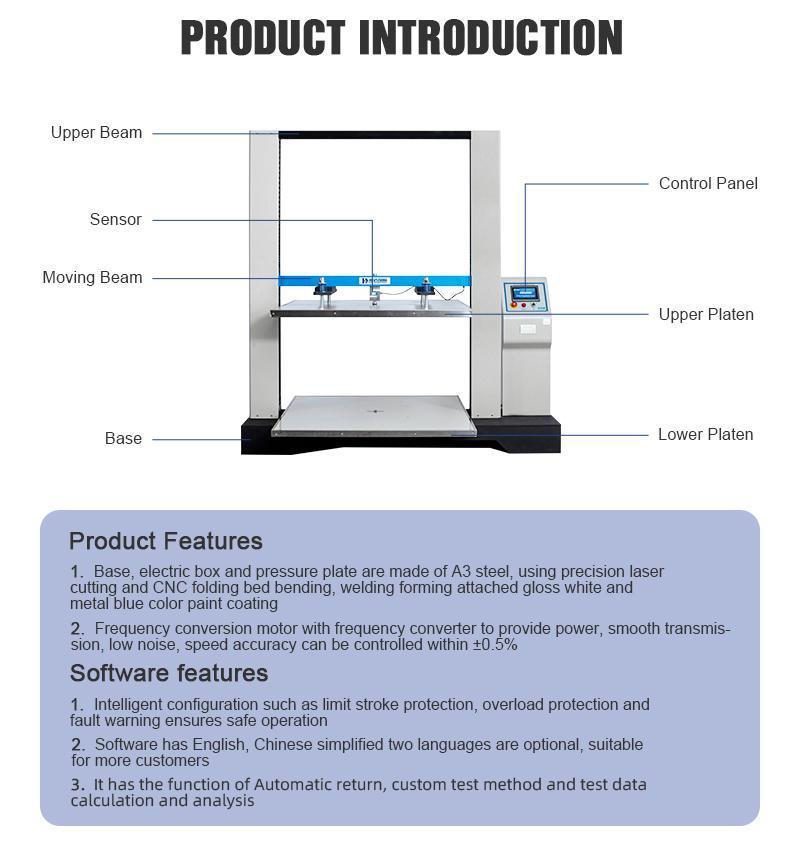

Automatic Carton Box Compression Test MachineSpecifications:
1.AC frequency conversion motor (Taiwan).
2.For box compression testing.
3.Carton test.
The usage:

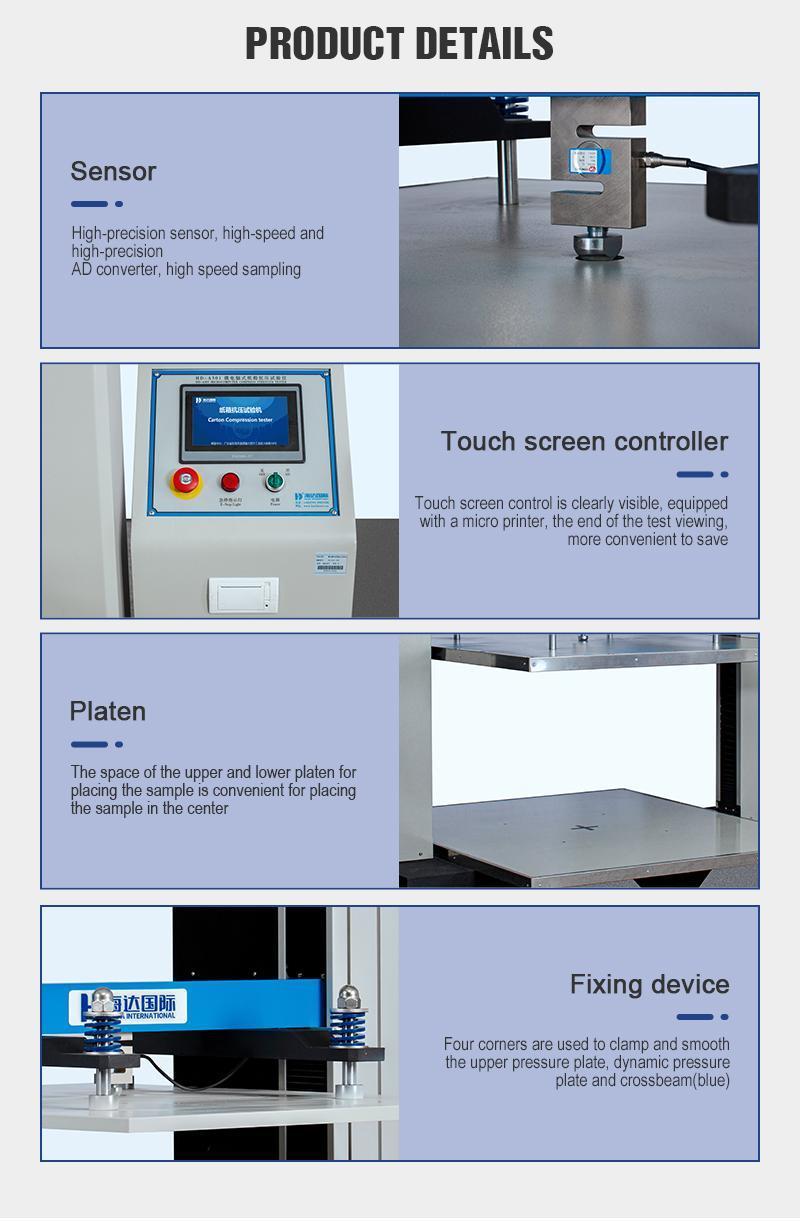

10KN Container Compression Testing Machine is used for measuring the pressure strength of boxes,cartons, packaging containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Also it can do hold pressure stacking test ,It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.
The Main Parameters of Compression Testing Machine:
(The table parameters for the company Standard Model parameters, we support customer customization parameters)
Item | Description |
Max. Force | 1000KG |
Load cell | 1 load cell |
Control system | PLC control |
Motor | AC motor, guild rod |
Force reading | kgf, Ibf, N etc |
Load cell Resolution | 1/100,000 |
Load Precision | within ±0.5% |
Parallelism of Platens | Parallel within ±5mm |
Effective test area | 700×900×900mm |
Test speed | 10 ±3mm/min |
Report output | Mini-printer, thermal printing |
Data display | Load, displacement, speed |
Safety features | E-Stop Over-load protection Upper and lower limit switches |
TAPPI-T804,JIS-20212,GB4857.3.4,ASTM-D642
Images:
The Introduction Of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
