• Model NO.：HD-B609A-S
• Display：Digital, Computer Display
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Standards：ASTM JIS Cns Pstc
• Motor：Servo Motor
• Delivery Time：15 Days After Receive The Deposit
• Load Resolution：≤ 0.5%
• Maximum Trip：1000mm (Exclude The Fixture)
• Test Speed：20-300mm,Min
• Disign Criteria：ASTM, Cns, JIS, Pstc
• Accessory：One Set of Fixture
• Outside Dimension：520* 520 *1200mm
• Transport Package：Strong Plywood Case
• Specification：Design Standards: GB,T16491; GB,T1040; GB,T1041; G
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024109000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-B609A-S Display Digital, Computer Display Control Computer Control Weight 0-100Kg Power Source AC220V Standards ASTM JIS Cns Pstc Motor Servo Motor Delivery Time 15 Days After Receive The Deposit Load Resolution ≤ 0.5% Maximum Trip 1000mm (Exclude The Fixture) Test Speed 20-300mm/Min Disign Criteria ASTM, Cns, JIS, Pstc Accessory One Set of Fixture Outside Dimension 520* 520 *1200mm Transport Package Strong Plywood Case Specification Design Standards: GB/T16491; GB/T1040; GB/T1041; G Trademark Haida Origin Dongguan, China HS Code 9024109000 Production Capacity 150 Sets Per Month

Product Description

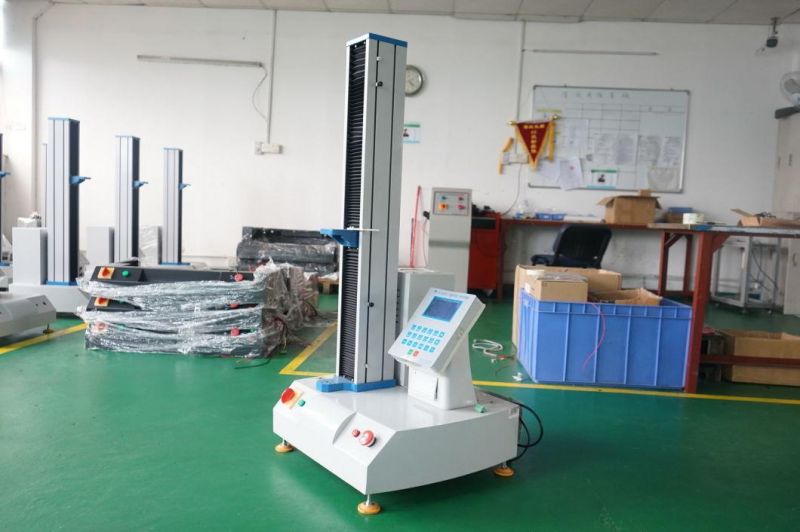

                                       Microcomputer Plastic Film Tensile Strength Test Equipment


Application
Haida series tensile strength testers are widely applied to determining elongation, compression, flexing, tear, peeling, shear force, adhesive force. For conducting tests in either finished or semi-finished products such as rubber, plastic, footwear,  leathers, metal, wire, paper, timber, etc.

Main Parameters of Single Column Tensile Strength Testing Machine:

Capacity	50.100, 200kg, (Optional)
Load resolution	1/250, 000
Load precision	≤ 0.5%
Maximum trip	1000mm (exclude the fixture)
Test speed	20-300mm/min
Display device	PC display( which can display and print the number of tests,   print the fracture value, maximum, average and minimum values
Outside dimension	520 × 520 ×1200mm
Weight	70kg
Power	1 phase, 220V/ 50HZ
Accessory	One set of fixture
Motor	AC frequency conversion control
Disign criteria	ASTM, CNS, JIS, PSTC

NOTE: All kinds of fixture and elongation measurement device and other accessories can be equipped depending on client's demand, our company would give client the most appropriate advice.
If any specification or content of product has changed, please refer to our company's actual price list.

Characteristics of Single Column Tensile Strength Testing Machine:

1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;

2. Using a single-screen operation; Do not need to switch the screen;

3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

4. The pattern of Test reports can be self-designated; Test data can be displayed directly in the main screen;

5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;

6. With a variety of measurement units, Measure In Imperial & Metric are switchable

7. With self-return & auto-correction function;

8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;

9. With the user-defined Test methods; With experimental data analysis function;

10. High quality, accurate and reliable models with reasonable price.



FAQ
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve  problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the  product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.  We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted byusers.
