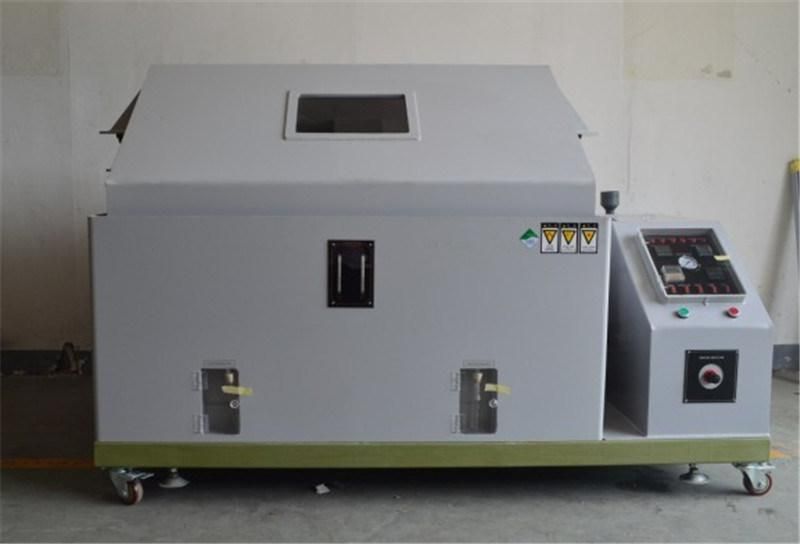

Salt Spray Chamber Salt Fog Tester / Corrosion Testing Equipment
Dongguan Haida Equipment Co., Ltd.- Warranty:1 Year
- Type:Salt Spray Testing Machine
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Display:Digital
- Control:Computer Control
Base Info
- Model NO.:HD-E808
- Weight:500-1000Kg
- Power Source:AC220V
- Certificate:ISO9001: 2008
- Warranty Period:12 Months
- Design Criteria:Cns, JIS, ISO, ASTM
- Delivery:15 Days After Receiving Deposit
- Spray Quantity:1.0 ~ 2.0ml,80cm2,Hr
- Lab Valume:600L
- Brine Tank Capacity:40L
- Power:AC220V, 30A
- Inner Box Size (L* W* H):120* 100*50 Cm
- Outside Box Size(L* W*H):190* 130* 140 Cm
- Transport Package:Rolled Resin Fiber, Put in Strong Wooden Case.
- Specification:ISO9001: 2008
- Trademark:Haida
- Origin:China
- HS Code:9031809090
- Production Capacity:80 Sets,Month
Description
Basic Info.
Model NO. HD-E808 Weight 500-1000Kg Power Source AC220V Certificate ISO9001: 2008 Warranty Period 12 Months Design Criteria Cns, JIS, ISO, ASTM Delivery 15 Days After Receiving Deposit Spray Quantity 1.0 ~ 2.0ml/80cm2/Hr Lab Valume 600L Brine Tank Capacity 40L Power AC220V, 30A Inner Box Size (L* W* H) 120* 100*50 Cm Outside Box Size(L* W*H) 190* 130* 140 Cm Transport Package Rolled Resin Fiber, Put in Strong Wooden Case. Specification ISO9001: 2008 Trademark Haida Origin China HS Code 9031809090 Production Capacity 80 Sets/MonthProduct Description
Salt Spray Chamber Salt Fog Tester / Corrosion Testing EquipmentDesign Criteria:
1, CNS: 3627, 3385, 4159, 8886
2, JIS: D0201, H8502, H8610, K5400, Z2371
3, ISO: 3768, 3769, 3770
4, ASTM: 8117, B268
Salt spraying chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.
Corrosive atmosphere chambers subject test items to corrosion without introducing other contaminants into the test area.
Associated Environmental Systems' salt spray chambers are entirely self-contained. The basic chamber conforms to military specifications, including MIL-STD-810, and is also used for many commercial and ASTM specifications.
Features:
1, Has a transparent Lucite test area that is impervious to corrosion.
2, Provides continuous direct visual observation of the test item.
3, Contains thermostats and metallic items made of Monel to avoid transference and minimize corrosion.
4, Provides lucite rods to hang or support items within the test area.
5, Performscontinuous unattended tests for up to 72 hours. This period may be extended by adding an external storage tank, a tower level control and a salt solution reservoir level control to automatically refill the system.
Model | HD-E808-120 |
Equipment Material | Both inside & outside shell of Salt spray test equipment adopt imported P. V. C rigid plastic board, and tank cover uses imported transparent P. V. C. rigid plastic board |
Inner Box Size (L× W× H) | 120× 100× 50 cm |
Outside Box Size(L× W× H) | 190× 130× 140 cm |
Temperature Range | 35 centigrade degrees to 55 centigrade degrees |
Temperature Fluctuations | ≤ ± 0.5 centigrade degrees |
Temperature Uniformity | ≤ ± 2 centigrade degrees |
Temperature Precision | ± 1 centigrade degrees |
Test Chamber Temperature | Salt Spray Method (NSS ACSS)35± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 50± 1 centigrade degrees |
Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 63± 1 centigrade degrees |
Brine Temperature | 35 centigrade degrees± 1 centigrade degrees |
Spray Quantity | 1.0~2.0 ml / 80cm2 / hr |
PH | Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2 |
Lab Volume | 600L |
Brine Tank Capacity | 40L |
Power | AC220V, 10A |
Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
Accessories | Testing Salt/ Measuring tank/ Equipment each 1 set |
Standard | CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502, H8610, K5400, Z2371; ISO: 3768, 3769, 3770; ASTM: B117, B-117, B268 |
