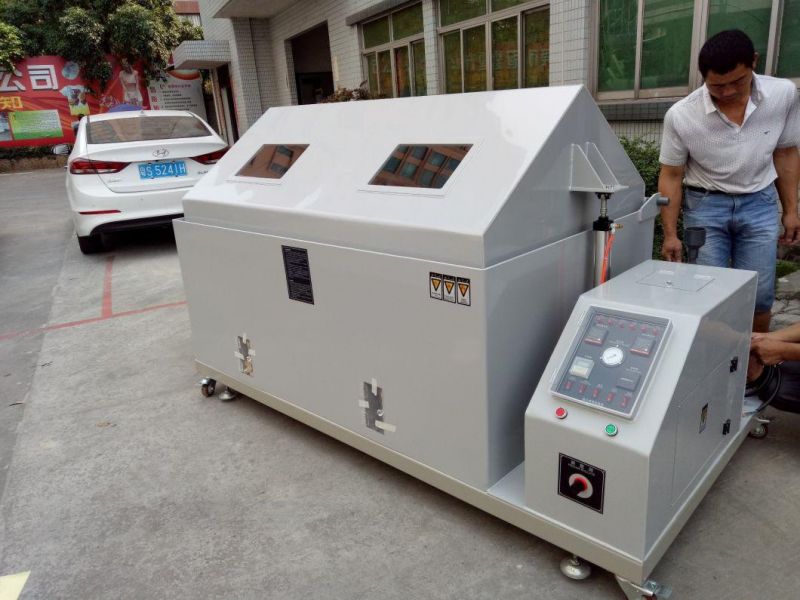

Programmable Salt Fog Test Chamber for Corrosive Resistance
Dongguan Haida Equipment Co., Ltd.- Warranty:1 Year
- Type:Salt Spray Testing Machine
- Accuracy Grade:0.5
- Display:Digital
- Control:Computer Control
- Weight:500-1000Kg
Base Info
- Model NO.:HD-E808
- Power Source:AC220V
- Certificate:Ce
- Control Interface:LCD (Programmable)
- Test Standard:ASTM B117, ISO and JIS Standard
- Warranty Period:One Year
- Delivery Time:15 Days After Receive The Deposit
- Model:HD-E808-160
- Inner Box Size (L* W* H):160* 100* 50 Cm
- Outside Box Size(L* W* H):230*130*140 Cm
- Brine Temperature:35 Centigrade Degrees± 1 Centigrade Degrees
- Lab Volume:800L
- Transport Package:Strong Plywood Case
- Specification:ASTM B117; Cns: 3627, 3385, 4195, 7669
- Trademark:Haida
- Origin:Dongguan, China
- HS Code:9031809090
- Production Capacity:150 Sets,Month
Description
Basic Info.
Model NO. HD-E808 Power Source AC220V Certificate Ce Control Interface LCD (Programmable) Test Standard ASTM B117, ISO and JIS Standard Warranty Period One Year Delivery Time 15 Days After Receive The Deposit Model HD-E808-160 Inner Box Size (L* W* H) 160* 100* 50 Cm Outside Box Size(L* W* H) 230*130*140 Cm Brine Temperature 35 Centigrade Degrees± 1 Centigrade Degrees Lab Volume 800L Transport Package Strong Plywood Case Specification ASTM B117; Cns: 3627, 3385, 4195, 7669 Trademark Haida Origin Dongguan, China HS Code 9031809090 Production Capacity 150 Sets/MonthProduct Description
Programmable Salt Fog Test Chamber for Corrosive ResistanceSalt Fog Equipment adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.
Features:
1 Durable hard PVC construction, anti-corrosion, easy to clean.
2 Reservoirs with mixing system on stand.
3 Cabinet heated by water jacket, heating element from USA famous company.
4 Separate heating system, be apart from salt testing chamber to ensure accurate result and protect circuit.
5 Exposure zone lined with corrosion-resistant PVC sheets.
6 Clear cover allows viewing of test conditions.
7 Peaked cover prevents dripping of condensation onto samples.
8 Water seal and water level protection system.

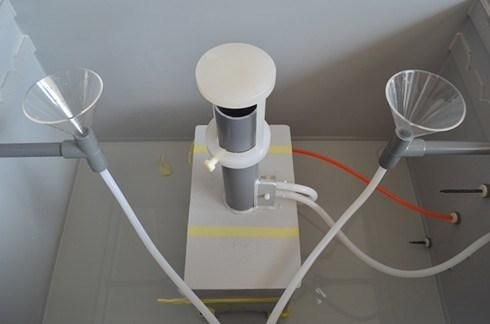

9 Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
10 Automatic DI water fill to humidifying tower.
11 Digital temperature control and readouts.
12 Integral over-protection on all heaters.
13 Low water cut-off protection on humidifying tower.
Model | HD-E808-160 |
Inner Box Size (L× W× H) | 160× 100× 50 cm |
Outside Box Size(L× W× H) | 230× 130× 140 cm |
Equipment Material | Both inside & outside shell of the salt spray tester adopt imported P. V. C rigid plastic board, and tank cover uses imported transparent P. V. C. rigid plastic board |
Temperature Range | 35 centigrade degrees to 55 centigrade degrees |
Temperature Fluctuations | ≤ ± 0.5 centigrade degrees |
Temperature Uniformity | ≤ ± 2 centigrade degrees |
Temperature Precision | ± 1 centigrade degrees |
Test Chamber Temperature | Salt Spray Method (NSS ACSS)35± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 50± 1 centigrade degrees |
Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 63± 1 centigrade degrees |
Brine Temperature | 35 centigrade degrees± 1 centigrade degrees |
Spray Quantity | 1.0~2.0 ml / 80cm2 / hr |
PH | Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2 |
Lab Volume | 800L |
Brine Tank Capacity | 40L |
Power | AC220V, 10A |
Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
Accessories | Testing Salt/ Measuring tank/ Equipment each 1 set |
Standard | CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502, H8610, K5400, Z2371; ISO: 3768, 3769, 3770; ASTM: B117, B268 |
