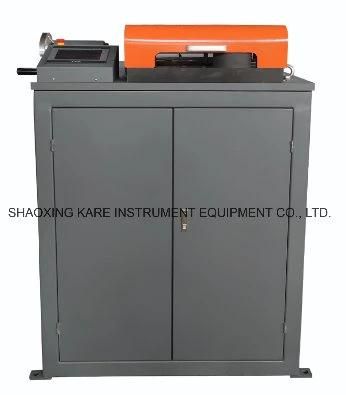

Rebar Bending and Rebending Machine (GW-40A)
SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.- Transport Package：Wooden Case
- Specification：1000*750*1200mm
- Origin：China
Base Info
- Model NO.：GW-40A
- HS Code：8462299000
- Production Capacity：30 Sets , Month
Description
Basic Info.
Model NO. GW-40A HS Code 8462299000 Production Capacity 30 Sets / MonthProduct Description
GW-40A Rebar Bending and Rebending MachineGW-40A-type rebar bending and rebending machine is the professional equipment for rebar cold bending test and plane reverse bending test. It meets the requirement of cold bending test and horizontal reverse bending test of GB/T1499.2-2018 "Steel Tube for Rebar Concrete Part 2: Hot Rolled Ribbed Steel Bar", YB/T5123-2003 "Rebar Plane Reverse Bending Test Program" and ISO10065:1900. It is an ideal test equipment for rebar bendability in steel factory and construction unit.
It has the characteristics of compact structure, easy operating, bending angle indicating visually, easy repairing, stable running, safety, low noise, and so on.
Main technical parameters
| Maximum bending diameter | Φ6-Φ40 |
| Forward bending angle | Any set in 0°-180° |
| Reverse bending angle | Any set in 0°-180° |
| Working disk rotation speed | ≤20°/S |
| Motor power | 1.5kW |
| Outline dimension | 1000*750*1200mm |
| Weight | 1000kg |
