Rebar Forward and Reverse Bending Machine (GW-40A)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.
  • Transport Package：Wooden Case
  • Specification：1000*750*1200mm
  • Origin：China

Base Info

  • Model NO.：GW-40A
  • HS Code：8462299000
  • Production Capacity：30 Sets , Month

Description

Basic Info.

Model NO. GW-40A HS Code 8462299000 Production Capacity 30 Sets / Month

Product Description

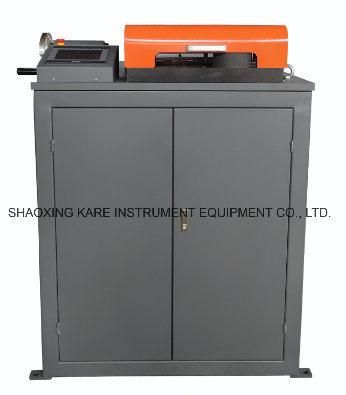

                       GW-40A Rebar Forward and Reverse Bending Machine

GW-40A-type rebar forward and reverse bending machine is the professional equipment for rebar cold bending test and plane reverse bending test. It meets the requirement of cold bending test and horizontal reverse bending test of GB/T1499.2-2018 "Steel Tube for Rebar Concrete Part 2: Hot Rolled Ribbed Steel Bar", YB/T5123-2003 "Rebar Plane Reverse Bending Test Program" and ISO10065:1900. It is an ideal test equipment for rebar bendability in steel factory and construction unit.
It has the characteristics of compact structure, easy operating, bending angle indicating visually, easy repairing, stable running, safety, low noise, and so on.

Main technical parameters
Maximum bending diameterΦ6-Φ40
Forward bending angleAny set in 0°-180°
Reverse bending angleAny set in 0°-180°
Working disk rotation speed≤20°/S
Motor power1.5kW
Outline dimension1000*750*1200mm
Weight1000kg

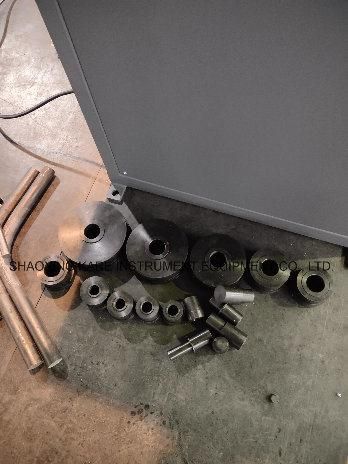

Rebar Forward and Reverse Bending Machine (GW-40A)

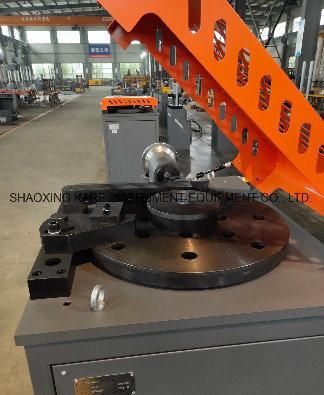

Rebar Forward and Reverse Bending Machine (GW-40A)

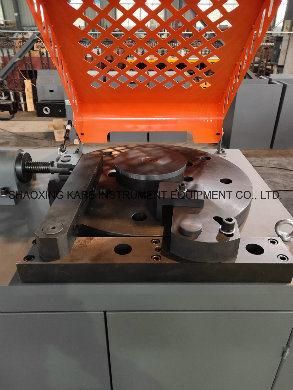

Rebar Forward and Reverse Bending Machine (GW-40A)

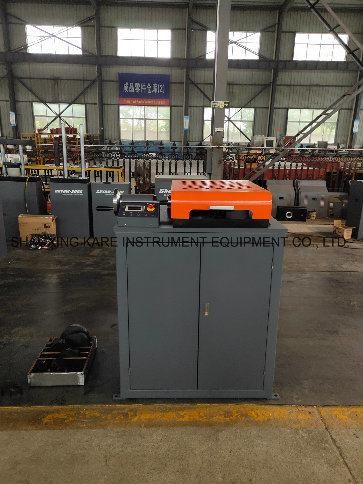

Rebar Forward and Reverse Bending Machine (GW-40A)

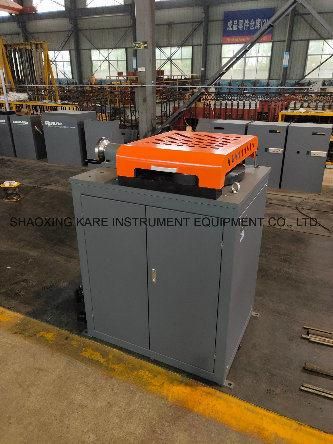

Rebar Forward and Reverse Bending Machine (GW-40A)
