• Model NO.：HD-A502S-1200
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Resolution：1,100, 000
• Unit ( Switchable)：Kg, Lb, N
• Dimension (L*W*H)：2000*1200*2030mm
• Power：1phase, 220V, 50Hz
• Operation Mode：PC
• Stacking Test Machine：0.5%
• Load Cell：Celtron Sensor
• Test Space(L*W*H)：1200*1200*1200mm
• Speed of Compression：10 ± 3 mm,Min
• Maximum Capacity：2 Ton
• Transport Package：Strong Plywood Case
• Specification：ASTM D624, TAPPI, ISO
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024800000
• Production Capacity：150 Set Per Month

Basic Info.

Model NO. HD-A502S-1200 Control Computer Control Weight 500-1000Kg Power Source AC220V Resolution 1/100, 000 Unit ( Switchable) Kg, Lb, N Dimension (L*W*H) 2000*1200*2030mm Power 1phase, 220V/ 50Hz Operation Mode PC Stacking Test Machine 0.5% Load Cell Celtron Sensor Test Space(L*W*H) 1200*1200*1200mm Speed of Compression 10 ± 3 mm/Min Maximum Capacity 2 Ton Transport Package Strong Plywood Case Specification ASTM D624, TAPPI, ISO Trademark Haida Origin Dongguan, China HS Code 9024800000 Production Capacity 150 Set Per Month

Product Description

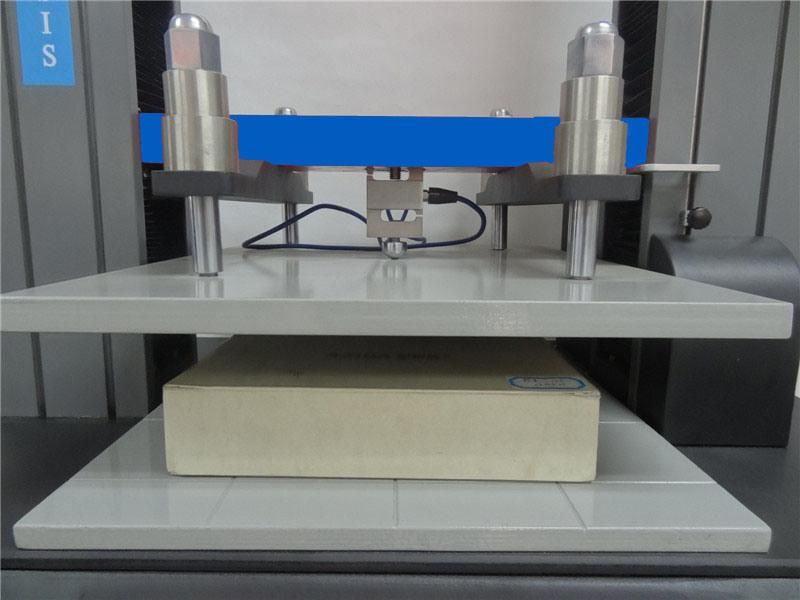

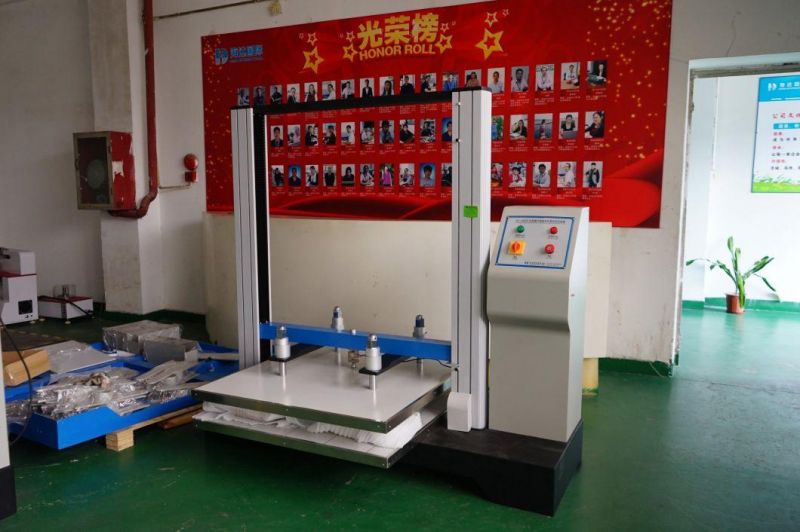

                Cardboard Box Compression Test Machine for Package Industry

Usage

Corrugated Package Compression Strength Test Equipment mainly used in the various types of secondary normal size corrugated carton compressive strength test or other material made of compressive strength of packaging container FCL compressive strength test and test, such as food and beverage instant noodles packing, cosmetic packaging, beer packing, cereals and oil and so on the packaging. The instrument control accuracy is high, the development of advanced technology, for the present domestic the most cost-effective one universal carton compression tester.

Design criteria:

TAPPI-T804JIS-20212GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3GB/T4857.

Test Principles:

Test samples in test enginery two parallel between linking piece, and then even to put pressure on record load and linking piece displacement, until the test sample fracture, or load or linking piece a says to the expected value so far.

Features of Corrugated Package Compression Strength Test Equipment:

1. Using a single-screen operation; do not need to switch the screen;

2. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;

4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;

5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;

6. With a variety of measurement units, Measure In Imperial & Metric are switchable;

7. With self-return & auto-correction function;

8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;

9. With the user-defined Test methods; with experimental data analysis function;

10. It can do test of compression, bending, pressure holding & fatigue.

11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically;

12. Using a single-screen operation; do not need to switch the screen;

13. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

14. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily.

The Main Parameters of Compression Strength Test Equipment:


Item	Specification
Measuring range	0 ~10000mN
Indication error	± 1%
Display	LCD
Resolution	1mN
length of the test	5,10,15,20,25,50 mm
curvature	5 ~ 30 °
Gripper speed	15 ± 0.3 °(degrees / 10 sec)
Sample size specimen width	38 ± 0.2mm width, 70mm length (76mm best )
Dimensions	(L × W × H)330 × 340 × 230mm
Power supply	220V ± 10%
Weight (approx.)	about 12kg

(The table parameters for the company Standard Model parameters, we support customer customization parameters)





The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



Customer Feedback

FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
