Gdbc-901 Power Transformer Turns Ratio Tester IEC76-1

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

Type：Transformer TTR Tester
Display：Digital
Power Source：220V 50,60Hz( Support Customize 110V,127V)
Application：Turns Ratio and Group Vector Test of Transformer
Test Standard：IEC76-1 ,IEC60044
Ratio Measurement Range：1-10000

Base Info

Model NO.：GDBC-901
Group Measurement：1-12
Ratio Measurement Error：1-10000 ± 0.2%Rdg
Test Voltage：0~80V, Frequency 50Hz
Power Supply：AC220V ± 10%, 50Hz,60Hz
Phase Measurement Error：1 Degree
Transport Package：Plywood Case
Specification：22KG
Trademark：GOLD
Origin：Chongqing, China
HS Code：9030849000
Production Capacity：500 Pieces,Month

Description

22Kg

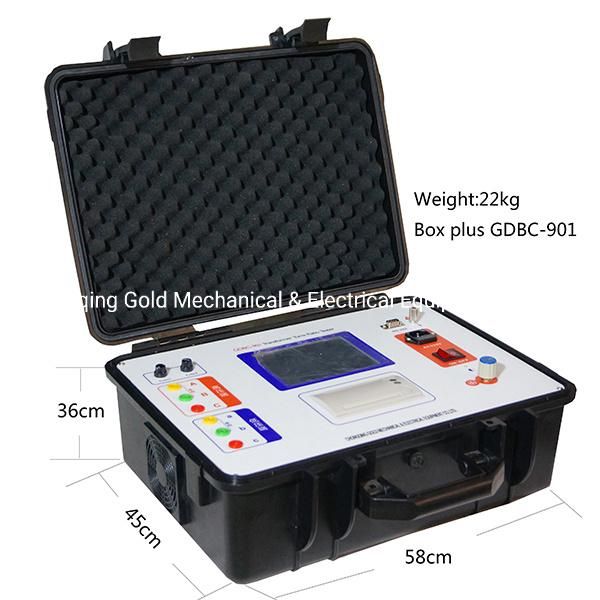

Product Details

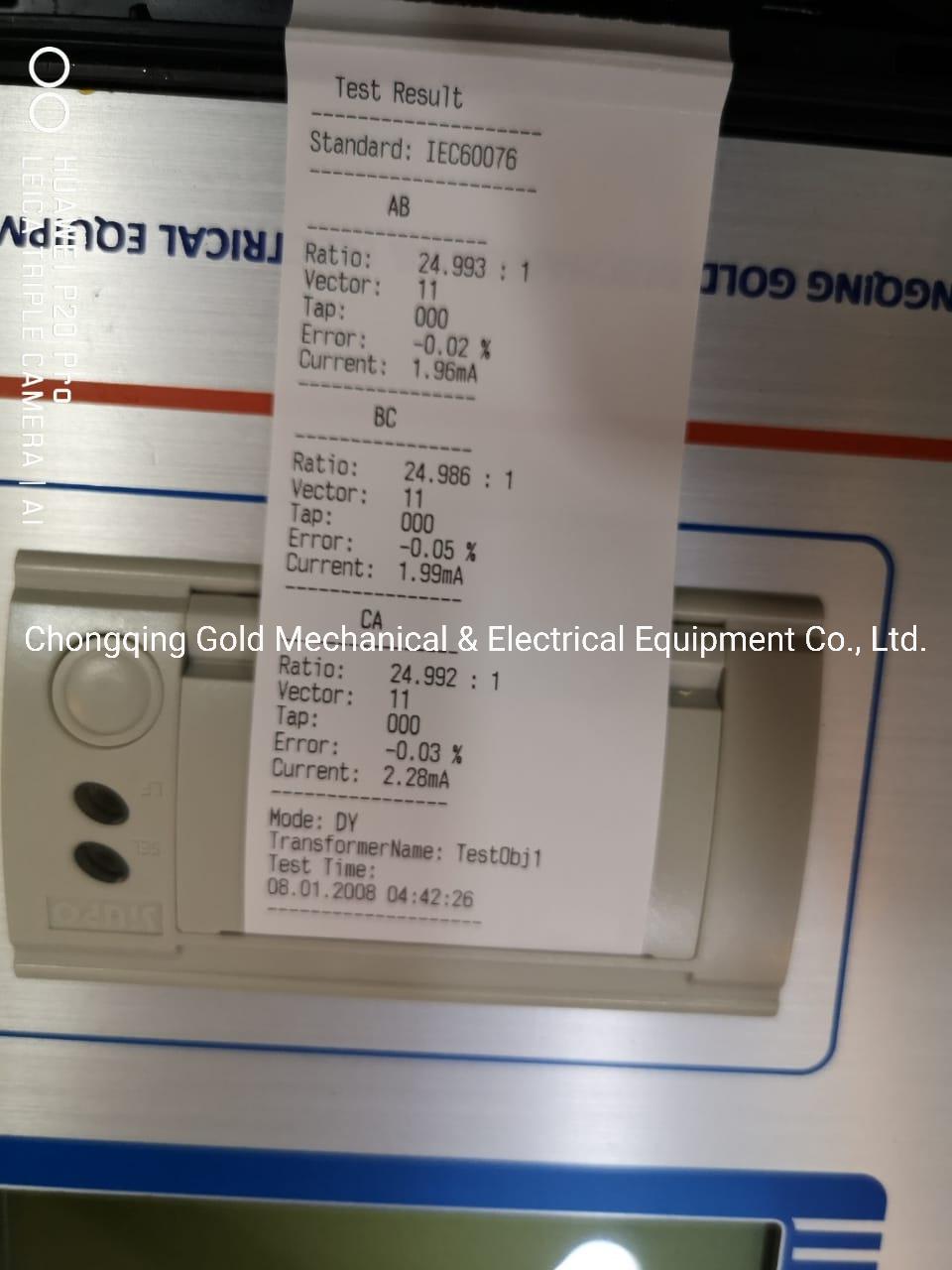

Test Results

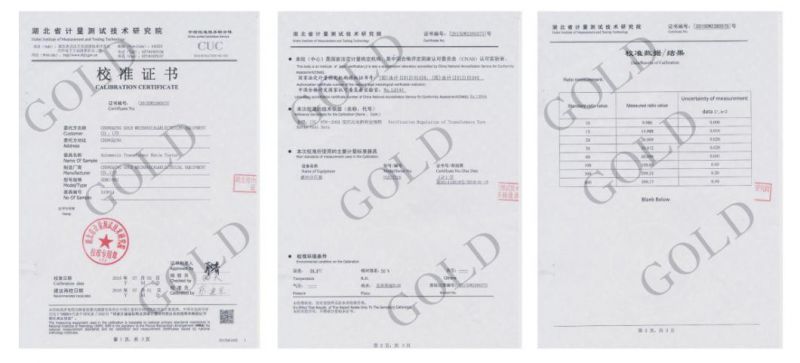

Certificate of Calibration

Customer Visit
Gdbc-901 Power Transformer Turns Ratio Tester IEC76-1

Gdbc-901 Power Transformer Turns Ratio Tester IEC76-1
