• Model NO.：STMSD-1
• Loading Method：No
• Display：Digital
• Control：No
• Weight：66kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stmsd-1 Compacting Factor Apparatus
• Application：Determine The Compaction Factor of Concrete with L
• Features：The Hoppers and The Mould Are Mounted Onto a Rigid
• Transport Package：Wooden Case
• Specification：0.38CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STMSD-1 Loading Method No Display Digital Control No Weight 66kgs Power Source AC220V Oil Cylinder Position No Product Name Stmsd-1 Compacting Factor Apparatus Application Determine The Compaction Factor of Concrete with L Features The Hoppers and The Mould Are Mounted Onto a Rigid Transport Package Wooden Case Specification 0.38CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

STMSD-1 Compacting Factor Apparatus



High Quality Steel Fresh Concrete Compacting Factor Apparatus
The apparatus is used for determining the workability of  resh concrete, provided the maximum size of the aggregate does not exceed 38 mm. The test is particularly useful for   concrete mixes of very low workability where true slump values are not reliable.

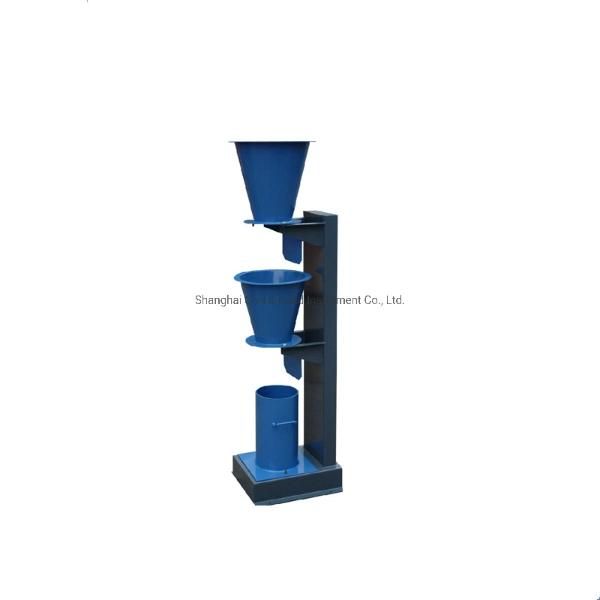

It consists of two rigid conical hoppers and a cylinder mounted on a rigid metal frame. The lower openings of the hoppers are fitted with hinged trap-doors having quick release catches. A circular metal plate is provided to cover the top of the cylinder.

Feature:
1. It is used to determine the compaction factor of concrete wiht low,medium and high workability.
2.Comprising two conical hoppers having a hinged trap door attached to the lower end of each hopper,allowing the concrete sample to flow freely into the cylindrical mould.
3.The hoppers and the mould are mounted onto a rigid steel frame and are easily removable for cleaning.

Material	steel
Color	Blue or others color
Product Description	Standard: BS 1881-103, BS 5057
Dimension	350 (L) x 320 (W) x 1300 (H) mm
Approx. Weight	25 kg
