• Model NO.：HJ-1
• Weight：100-500Kg
• Power Source：AC220V
• Maximum Test Torque：50kg-Cm (Optional)
• Minimum Display Torque：1GF-Cm, 10GF-;Cm
• Minimum Display Angle：0.1 Degree
• Maximum Test Angle：Unlimited
• Drive Motor：Servo Motor
• Machine Weight：75kg
• Using Electric：AC220V 50Hz
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-1 Weight 100-500Kg Power Source AC220V Maximum Test Torque 50kg-Cm (Optional) Minimum Display Torque 1GF-Cm, 10GF-;Cm Minimum Display Angle 0.1 Degree Maximum Test Angle Unlimited Drive Motor Servo Motor Machine Weight 75kg Using Electric AC220V 50Hz Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Features
1. Can do single hole plug test for connector
2. It can be used to connect the entire row of plug and pull tests to accept the connector life test
3. It can be used to test the retention force of a single connector product in the plastic
4. Can do connector NORMAL FORCE test
5. General compression and tensile failure test can be done
6. It can be connected to the side line of the contact impedance machine at the same time (optional)
7. Printable and storage graphics (plug displacement curve, life curve, inspection report)
8. The test data is stored in the hard disk (each data can be stored, unlimited times)
9. The test conditions are all set in writing by the computer, which is convenient and fast (including plug-in stroke, speed, pause time, etc.)

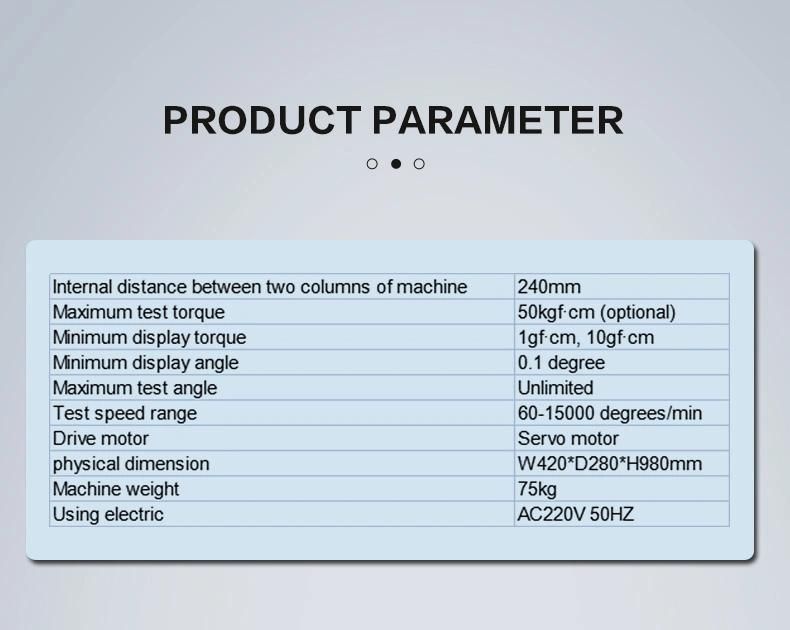

Internal distance between two columns of machine	240mm
Maximum test torque	50kgf·cm (optional)
Minimum display torque	1gf·cm, 10gf·cm
Minimum display angle	0.1 degree
Maximum test angle	Unlimited
Test speed range	60-15000 degrees/min
Drive motor	Servo motor
physical dimension	W420*D280*H980mm
Machine weight	75kg
Using electric	AC220V 50HZ
