Hj-1 Key Switch Load Stroke Curve Tester/Button Displacement /Switch Load Curve Testing Machine

Dongguan Hongjin Test Instrument Co., Ltd.
  • After-sales Service：Lifetime Maintenance
  • Warranty：1 Year
  • Maxcapacity：<1000KN
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Static Load

Base Info

  • Model NO.：HJ-1
  • Control：Manual Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Measure The Maximum Load Range：2kg
  • Control Method：Full Touch
  • Testing Speed：0-100mm,Min
  • Maximum Measuring Height：100mm
  • Minimum Decomposition Capacity：0.1g
  • Minimum Fine-Tuning Distance：0.01mm
  • Transmission Mechanism：Ball Screw Drive
  • Power Supply：AC220V
  • Volume：360X260X540mm
  • Transport Package：Fumigation-Free Standard Export Wooden Box
  • Trademark：Hongjin
  • Origin：China
  • Production Capacity：1000 Sets, Month

Description

Basic Info.

Model NO. HJ-1 Control Manual Control Weight 0-100Kg Power Source AC220V Measure The Maximum Load Range 2kg Control Method Full Touch Testing Speed 0-100mm/Min Maximum Measuring Height 100mm Minimum Decomposition Capacity 0.1g Minimum Fine-Tuning Distance 0.01mm Transmission Mechanism Ball Screw Drive Power Supply AC220V Volume 360X260X540mm Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Scope of application
The electric load meter is composed of the simplest machine structure, and can perform the tactile test of the silicone rubber buttons at a fast speed. At the same time, it can test the peak value, valley value, feel value and corresponding stroke value of various products. This electric load tester is suitable for on-site measurement of conductive rubber, metal shrapnel, and membrane buttons. The peak data of each touch switch is measured by sensor induction, and the quality stability is quickly measured on site. It can also be used in quality control inspection stations. and Engineering Department.

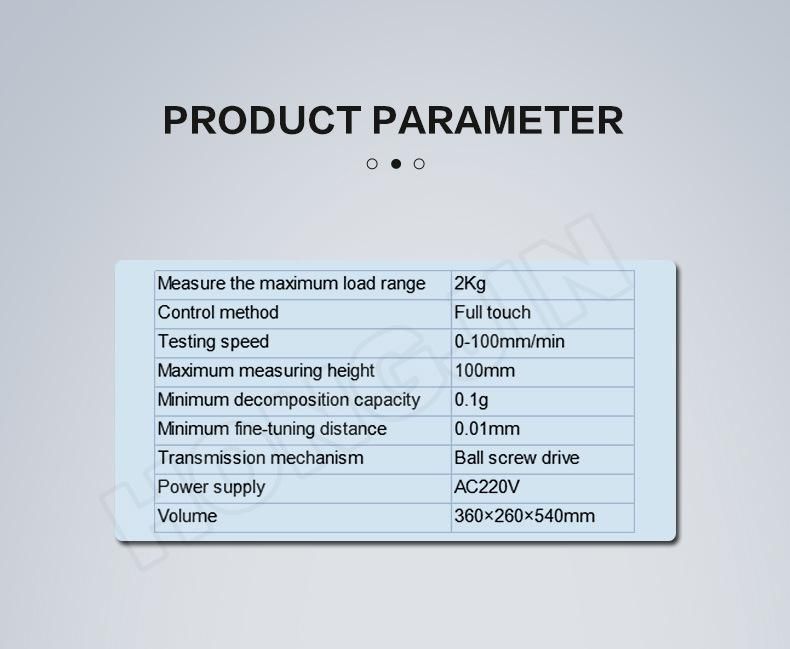

Measure the maximum load range2Kg
Control methodFull touch
Testing speed0-100mm/min
Maximum measuring height100mm
Minimum decomposition capacity0.1g
Minimum fine-tuning distance0.01mm
Transmission mechanismBall screw drive
Power supplyAC220V
Volume360×260×540mm
