• Model NO.：HJ-68
• Display：Drop Test Machine
• Weight：0-100Kg
• Power Source：AC220V
• Unit of Strength：Kgf,N,Lbf
• Voltage：AC220V,50Hz
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-68 Display Drop Test Machine Weight 0-100Kg Power Source AC220V Unit of Strength Kgf/N/Lbf Voltage AC220V/50Hz Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

 Introduce
The packaging clamping force testing machine is used to simulate the influence of the clamping force of the two plywood on the packaging and the goods when the clamping truck loads and unloads the packaging, and evaluates the clamping resistance strength of the packaging. It is suitable for finished products such as kitchenware, furniture, home appliances, toys, etc. Packaging, especially suitable for the anti-clamping strength test of the package required by SEARS in the United States. It is suitable for all product packaging to test the amount of deformation when the product packaging is subjected to horizontal pressure during transportation or storage and the protection ability of the packaging to the products in the packaging, so as to improve the packaging design.


Lift the sample weight	Within 0-600KG (parallelepiped transport package)
LCD	The screen displays the maximum clamping force value, holding time, displacement, times
Force accuracy	National Standard Level 1.6
Sensor Accuracy	1/20000, measurement accuracy 0.5%;
Plywood lift displacement	0-1000mm (according to customer requirements) to improve the  displacement accuracy based on the ruler
Left and right stroke  displacement of splint	0-1200mm (according to customer requirements)
Clamping plate size	1220*1220mm (according to customer requirements)
Clamping test speed	Up and down 600mm/min; left and right 1-500mm/min (adjustable)
Unit of strength	Kgf/N/Lbf
Transfer method	Servo motor precision instrument testing equipment technical scheme
Protective device	Leakage protection, travel limit device, overload protection, overvoltage  protection, power failure protection, emergency stop
Splint force sensor	Four (more efficient and more sensitive to sense the force transmitted by the clamping)
Machine splint	The thickness of the splint is not less than 20mm, to ensure that the clamping plate is  not deformed in the clamping state (≤2000KG), the two plates are parallel and perpendicular  to the bottom plate, and high-quality non-slip rubber pads are used to ensure that the packaging samples are in It is not easy to slip  and be damaged during the test.
Machine size	2650*1900*2120mm (customizable)
Voltage	AC220V/50HZ


Features
1.The whole machine is controlled by a special clamping system to realize the effective control of the actions of each station;
2.The whole machine is equipped with a control cabinet, which can set the clamping force, clamping speed and lifting stop, and can choose manual or automatic test mode on the panel of the control cabinet. At the same time, realize the coherent operation of each action, ensure safe production, and run according to the rhythm;
3.There is an emergency stop button on the panel of the control cabinet;

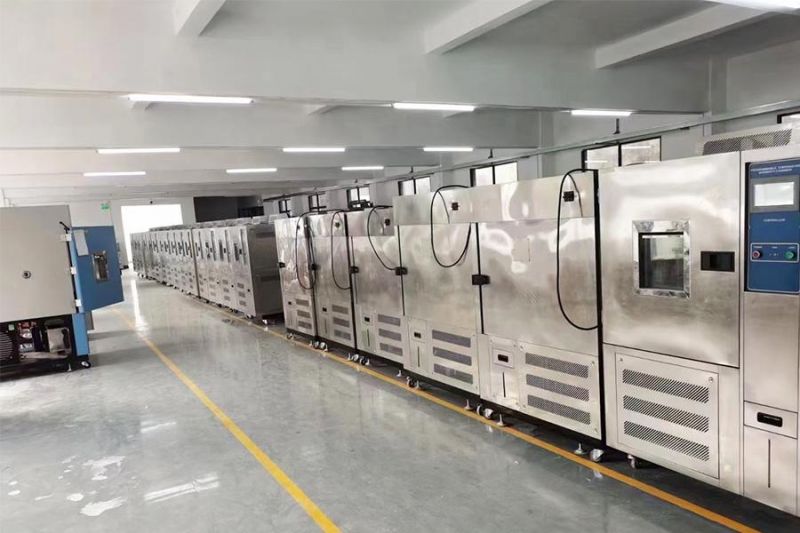

The Introduction Of Hongjin
Hongjin products are widely used in paper products, packaging, ink printing, tape, luggage, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, suitable for all scientific research units, Quality inspection agencies and academic fields. Products comply with UL, ASTM, JIS, GB, SO, TAPPI, EN, DIN, BS and other domestic and foreign standards. We have CE certificates, ISO certificates, and are a high-tech enterprise with more than ten years of experience.


FAQ
1.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after shipment. Generally,we offer 12 months for the FREE maintenance, while considering of sea transportation,If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem,we can send you new spare parts or provide on-site repair.

2.. What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
