Industrial High Temperature Hot Air Cycling Vacuum Chamber for Quality Control
Guangdong Yuanyao Test Equipment Co., Ltd.- Type：Universal Testing Machine
- Maxcapacity：N,a
- Accuracy Grade：0.5
- Load Way：N,a
- Loading Method：N,a
- Display：Digital
Base Info
- Model NO.：YPOZ-600
- Control：Cotroller
- Weight：100-500Kg
- Power Source：AC380V
- Oil Cylinder Position：N,a
- Inner Size：1000*1000*600mm
- External Size：1260*1700*1250mm
- Interior Chamber Material：SUS#304 Stainless Steel Plate
- Volume：600 Liters
- Temp. Fluctuation：+,-0.3 Degree
- Temperature Range：Rt+10 to 300 Degrees
- Vacuum Range：Atmospheric Pressure to -98kpa
- Circulation System：Circle Fan
- Indication Resolution：0.1degree , 1 Degree
- Heat up Time：30 Mins
- Transport Package：Strong Wood Carton
- Specification：YPO-600
- Trademark：Yuanyao
- Origin：China
- HS Code：9032100000
- Production Capacity：100 Sets,Month
Description
Room temperature +10ºC to +250ºC(300ºC)Temp. control accuracy ±0.5ºC Temp. uniformity ±5ºC Temp. resolution 0.1ºC Vacuum range Atmospheric pressure to -98KPa Heat-up time RT-250ºC≤ 90minutes Material SUS#304 stainless steel plate for inner chamber,Stainless steel plate+ Power
Coated for outside. Insulation PU& Fiberglass wool Wind Circulation Cooling fan Heating system SUS#304 stainless steel high-speed heater Controller CAHO H961KV02 controller (Taiwan) Vacuum system Equipped with vacuum pump Safty Devices Overheating circuit-breaker,overload protection, overload indicator Power Supply AC 3∮380V 60/50Hz Customization Customization of inner chamber size, tempreture range,vacuum range ect.
Except Vacuum Oven, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
1) Temperature/ humidity test series: Temperature humidity test chamber, Walk in environmental room, Thermal shock test chamber, High altitude low pressure simulation test chamber
2) Aging test series: Hot air oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone resistance test chamber, Burn in test equipment
3) Weather simulation tes series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV test chamer
4) Mechanical test series: High frequency vibration test machine, drop test machine , Glue dispensing machine etc.

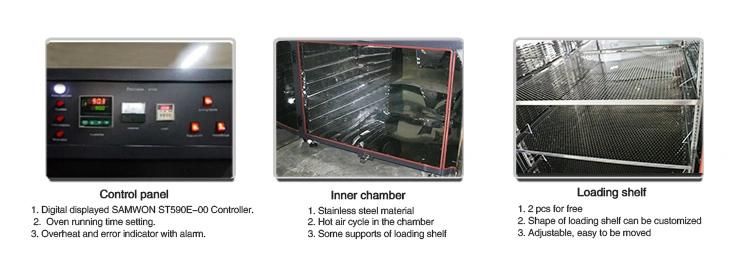

Product detail
Company profile
Welcome to enquire and purchase!
