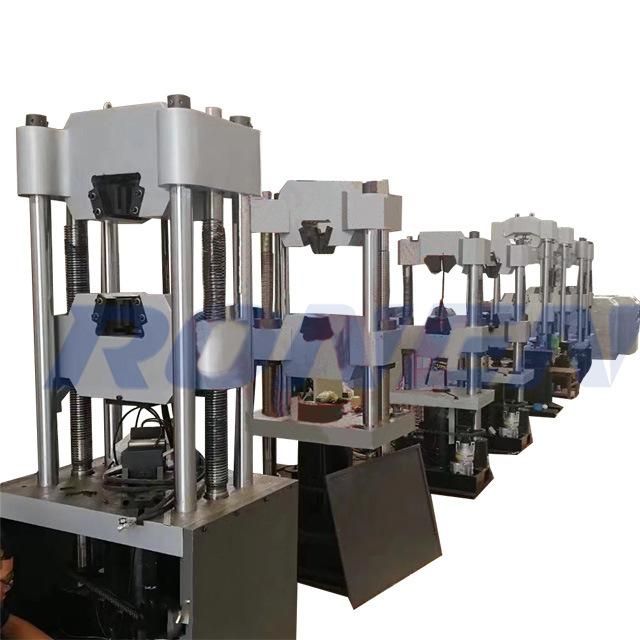

Electro-Hydraulic Servo Universal Testing Machine/Tensile Testing Machine/Material Testing Instrument Electronic Universal Testing Machine
Beijing Ron-En Machinery & Integration Co., Ltd.- After-sales Service：Provide Solutions Within 24 Hours
- Warranty：1 Year
- Max Diameter of Workpiece：1000mm
- Mass Scope of Workpiece：4000kg
- Type：Universal Testing Machine
- Maxcapacity：600kn
Base Info
- Model NO.：Ronen-066
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Computer Control and Display, Digital
- Control：Computer Control
- Weight：1000-2000Kg
- Power Source：AC220V,AC380V
- Oil Cylinder Position：Under
- Power：Electronic
- Measuring Range：1%-100% Fs
- Accuracy：Class 0.5
- Standard：ASTM E8,A370,ISO 75001
- Power Supply：380V 50Hz, 3-Phase, 2.0kw (Can Be Customized)
- Piston Stroke：200mm
- Max. Tensile Test Space：700mm
- Max. Compression Test Space：650mm
- Effective Test Space：505mm
- Clamping Method：Hydraulic Automatic Clamp Fixture
- Bending Roller Width(mm)：30X120mm
- Bending Span (mm)：30-450mm
- Load Range：1%-100%Fs (0.4% -100%Fs Optional)
- Transport Package：Seaworthy Packing
- Specification：Metal
- Trademark：RONEN
- Origin：Hebei, China
- Production Capacity：50 Set,Sets Per Month
Description
Hydraulic Universal Testing Machine Technical Parameter:Electronic Universal Testing Machine DescriptionChemical Properties Laboratories Responsive WDW 600KN Hydraulic Tensile Testing Equipment
Hydraulic Universal Testing Machine Application:This type machine is suitable for metal sheet, bar, screw and other products mechanical properties test. The relative tension fixture can be used to complete the tensile test of steel pipe, fastener, electronic power fttings, anchor, strand, chain and the other products. The relative compression fixture can be used to complete the compression test of cement, concrete, stone,block, hollow brick, spring and other products. The relative bending fixture can be used to complete the bending test of metal sheet, bolt sheet performance test and so on.
1.The tensile test space is between the upper and lower crosshead. The compression, bending and shear test space is between middle crosshead and work table. Double test space structure makes the operation more convenient.
2.High rigidity test frame, can be fully loaded tensile testing, can meet high frequency test requirement.
3.High precision gap seal cylinder, the unique static pressure oil flm- free -oriented technology to protect the testing process rumning in the relatively indiscriminate friction environment.
4.This model machine can choice the loading speed and system pressure independently according the test state.
5.Adopt inching and adjust speed hydraulic clamping device. provide more clamping security care.
6.Several voltages for your choice. (380V, 220V ,440V)Ronen Group Domestic & Overseas Customers
Recommend Products

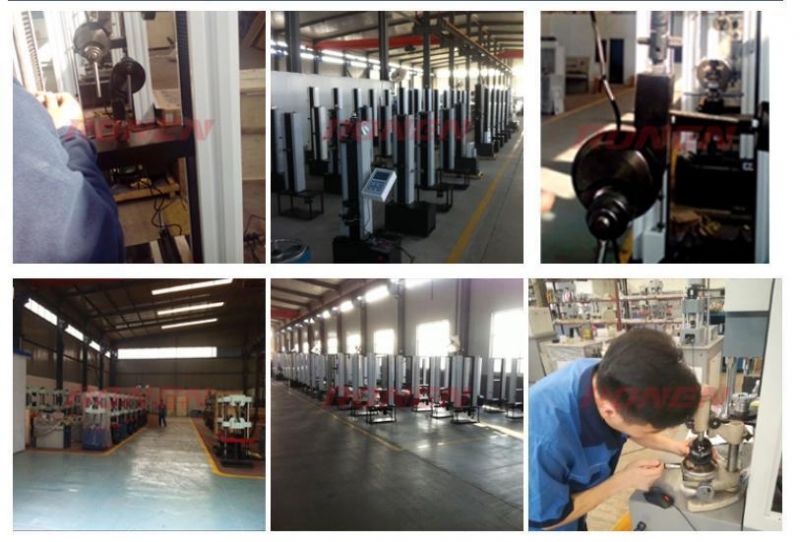

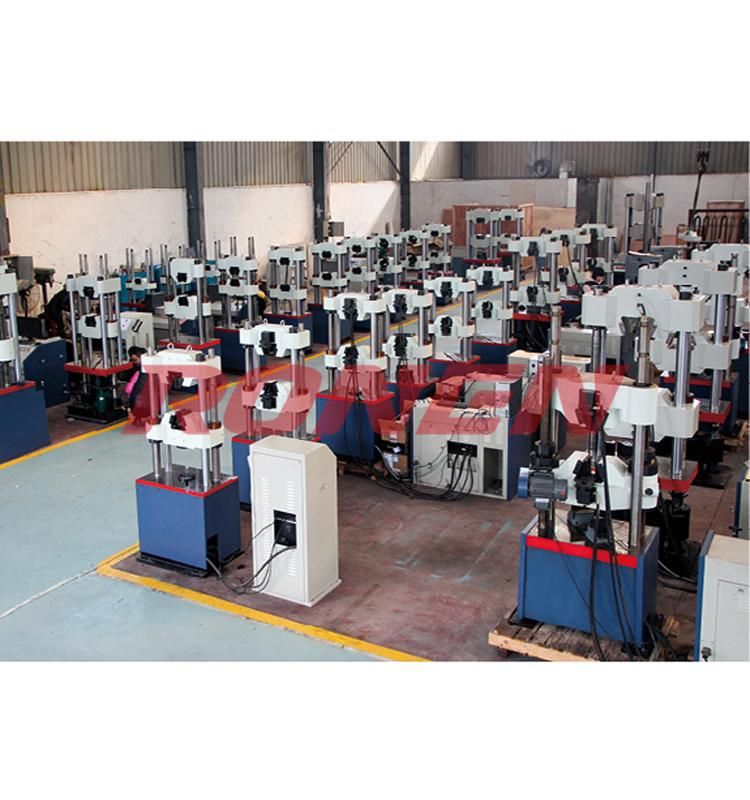

Ronen Workshop
Ronen Group Exhibition
Ronen Group Packing and Shipping
Certifications
FAQ1.Q:Are you manufacturer?
A:Yes, We are manufacturer.
2.Q: What are the payment terms?
A: Pattern of pattern :we can accept L/C ,T/T , Western Union , Money Gram
3. Q: What is the whole business flow cooperation with us ?
A:1.Firstly,send your inquiry to us,make us have learned your requirement
2.We will be drawing a proforma invoice according to your requirement ,and start production after you finished to pay
30% deposit.
3.All of the goods, packing details, and B/L copy will be send to buyer after finished production. We will arrange
shipment and provide original B/L after the buyer finished to pay the balance.
4. Q: What if you encounter technical problems?
A:Please contact us as soon as possible and let us know what kind of technical problems you encounter and the
details. We will give you a solution within 24 hours.
5. Q: What advantages we have?
A: Rich experience: We have been in this line for 20 years . we can provide solution according to the problem of the buyer meet in the production process.
