Horizontal Burning Tester of IEC 60730 Test Machine
Guangzhou Zhilitong Electromechanical Co., Ltd.- Warranty:One Year
- Type:Flammability Tester
- Load Way:Mechanical Load
- Display:Digital
- Control:Electricity
- Weight:100-500Kg
Base Info
- Model NO.:ZLT-UL94
- Power Source:AC220V
- Usage:Test Comparing Burning Behaviour for UL94
- Certification:CNAS Calibration Provided
- Material:Stainless Steel
- MOQ:1 PC
- Delivery:in 25-30 Days
- Transport Package:in Plywood Carton
- Specification:Horizontal-Vertical Flame Chamber Tester
- Trademark:ZLTJC
- Origin:Guangzhou, Guangdong, China
- HS Code:9031809090
- Production Capacity:Stock Available
Description
Basic Info.
Model NO. ZLT-UL94 Power Source AC220V Usage Test Comparing Burning Behaviour for UL94 Certification CNAS Calibration Provided Material Stainless Steel MOQ 1 PC Delivery in 25-30 Days Transport Package in Plywood Carton Specification Horizontal-Vertical Flame Chamber Tester Trademark ZLTJC Origin Guangzhou, Guangdong, China HS Code 9031809090 Production Capacity Stock AvailableProduct Description

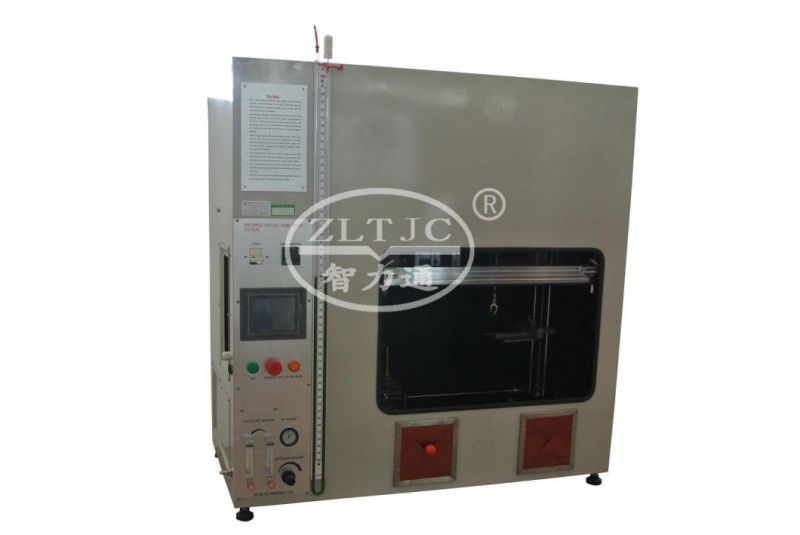

Horizontal Vertical Flame TesterThe ZLT Horizontal Vertical Flame Chamber Tester is a fully automatic instrument contained in its own cabinet to maximize the safety of the operator. It screening procedure for comparing the relative burning behaviour specimens made from plastic and other non-metallic materials, exposed to a flame ignition source of 50W or 500W nominal power.
These test methods determine the linear burning rate and the afterflame/afterglow times, as well as the damaged length of specimens. They are applicable to solid and cellular materials that have an apparent density of not less than 250kg/m3, determined in accordance with ISO845. Then do not apply to materials that shrink away from the applied flame without ignitiong; ISO9773 should be used for thin flexible materials. And it's the combustion test device of plastic materials represented by UL-94. It can perform each test of HB, V0 to V2, 5V and VTM, HBF.
Includes: Flame height gauge and 100% absorbent cotton
Model | ZLT-HV50 | ZLT-HV500 | ZLT-HV1000 | ZLT-UL94 |
Test Flame | 50W(burning test for V-0, V-1, V-2 classification) | 500W(burning test for 5VA, V5VB classification) | 1000W | 50W and 500W |
Burner Tube | Internal diameter: Φ 9.5mm± 0.3mm, length: 100mm± 10mm | Internal diameter: Φ 9.5mm± 0.3mm, length: 100mm± 10mm | Internal diameter: Φ 12mm± 0.1mm, length: 110mm± 0.1mm | Internal diameter: Φ 9.5mm± 0.3mm, length: 100mm± 10mm |
Burning Angle | 0° , 20° , 45° | 0° , 20° , 45° | 0° , 20° , 45° | 0° , 20° , 45° |
Thermocouple | Type K (Ni/Cr - Ni/Al) | Type K (Ni/Cr - Ni/Al) | Type K (Ni/Cr - Ni/Al) | Type K (Ni/Cr - Ni/Al) |
Thermocouple Size O/D | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm |
Standard Copper Block | Φ 5.5mm± 0.01mm, weight: 1.76g± 0.01g before drilling. Cu-ETP | Φ 9mm± 0.01mm, weight: 10g± 0.05g before drilling. Cu-ETP | Φ 9mm± 0.01mm, weight: 10g± 0.05g before drilling. Cu-ETP | Φ 5.5mm± 0.01mm, weight: 1.76g± 0.01g before drilling. AndΦ 9mm± 0.01mm, weight: 10g± 0.05g before drilling. Cu-ETP |
Time for Temperature to Increase | From 100° C± 5° C to 700° C± 3° C; 44s± 2s (preset) | From 100° C± 5° C to 700° C± 3° C; 54s± 2s (preset) | From 100° C± 5° C to 700° C± 3° C; 45s± 5s (preset) | From 100° C± 5° C to 700° C± 3° C; 54s± 2s and 54s± 2s(preset) |
Overall Height | 18mm~22mm(adjustable) | 38mm~42mm(adjustable) | 50mm~60mm(adjustable) | 20± 2mm/40± 2mm(adjustable) |
Gas Supply(do not provide) | methane, min. 98% purity | methane, min. 98% purity | propane, min. 98% purity, and air | methane, min. 98% purity |
Flowmeter | 105± 10ml/min | 965± 30ml/min | 650± 30ml/min, 10± 0.5l/min | 105± 10ml/min and 965± 30ml/min |
Manometer | 0KPa to 7.5KPa | 0KPa to 7.5KPa | 0 MPa to 0.1MPa | 0KPa to 7.5KPa |
Input Power | 220 V 50 Hz 3A or 115 V 60Hz Optional | 220 V 50 Hz 3A or 115 V 60Hz Optional | 220 V 50 Hz 3A or 115 V 60Hz Optional | 220 V 50 Hz 3A or 115 V 60Hz Optional |
Volume Of Chamber | > 0.75m³ , black interior | > 0.75m³ , black interior | > 1m³ , black interior | > 0.75m³ , black interior |
Outer Dimensions | W*D*H=1192*580* 1190mm | W*D*H=1192*580* 1190mm | W*D*H=1220*700 *1500mm | W*D*H=1192*580* 1190mm |
Conform to standard | UL94, IEC60695-11-4, IEC60695-11-10,IEC 60730 figure 7 | UL94, IEC60695-11-3, IEC60695-11-20 ,IEC 60730 figure 7. | IEC60695-11-2 | UL94, IEC69695-11-3/4, IEC60695-11-10/20 |
