• Model NO.：EL42-5305,01
• Steel Charges：12
• Transport Package：Wooden Case
• Specification：950x1000x1100mm
• Trademark：C-TECH
• Origin：China
• HS Code：90248000
• Production Capacity：100,Month

Basic Info.

Model NO. EL42-5305/01 Steel Charges 12 Transport Package Wooden Case Specification 950x1000x1100mm Trademark C-TECH Origin China HS Code 90248000 Production Capacity 100/Month

Product Description

Application:

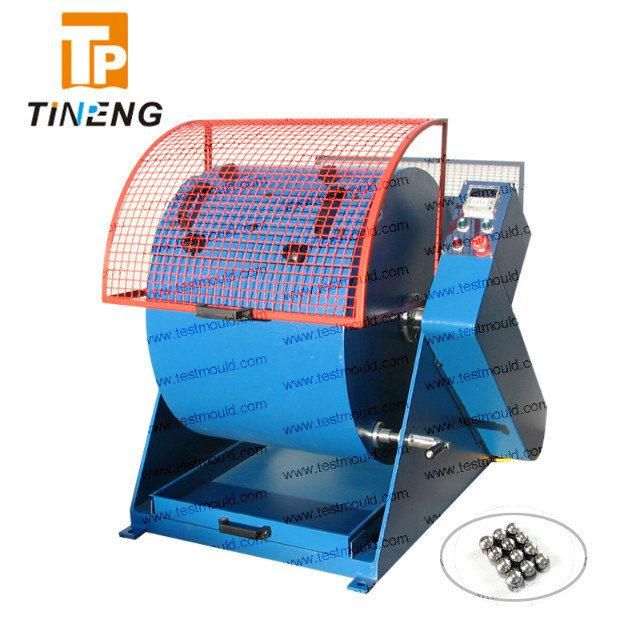

The machine is used for testing aggregates for resistance to abrasion.

This machine consists of a rolled steel drum having an inside diameter of 711 mm and internal length 508
mm. The drum is rotated by a speed reducer driven by an electric motor at a speed of between 31 and
33 r.p.m. The machine is equipped with an automatic counter, which can be preset to the required number
of revolutions of the drum. The unit is supplied without the abrasive charge, which has to be ordered
separately depending on the standard in use.



Standard:
EN 1097-2,
Also conforming to NF P18-573, UNE 83 114, UNI 8520-19, CNR No. 34, ASTM C131



Specification:
1.internal dimension: 710mm*510mm( +/- 5mm);
2.rotate speed: 30-33rpm;
3.outside dimension: 1100*780*100mm;
4.abrasive charges: dia.50mm(6pcs), dia.44.5mm(3pcs),dia.40mm(3pcs), weight 5Kg+/-50g;
5.power: AC380v, 50hz
